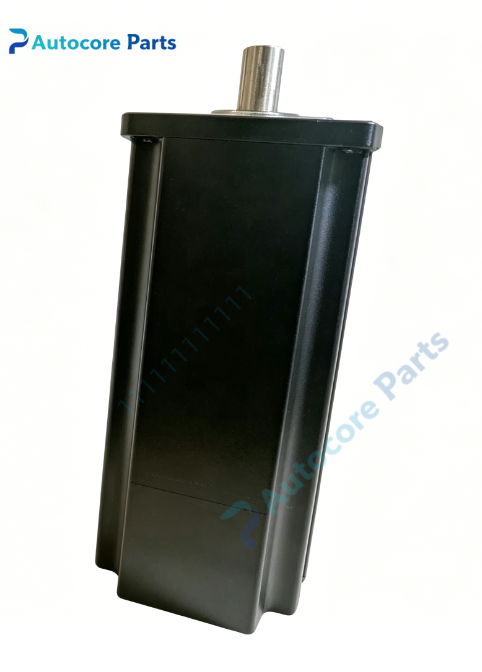

Sanyo Denki Q2AA08100DXP5Bn AC Servo Motor

Module Feature

Sanyo Denki Q2AA08100DXP5Bn belongs to SANMOTION Q series AC brushless servo motor. Rated power 1.0kW, AC200V class. Built-in 24V electromagnetic power-off holding brake, suitable for vertical load application to lock shaft and prevent falling during power failure. Equipped with high resolution rotary encoder for closed-loop position feedback. Optimized rotor design, good low speed performance and high torque density. High rigidity bearing assembly, strong anti-vibration capability. Widely used for medium load positioning axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The matched servo amplifier outputs three-phase AC power to motor windings. The built-in encoder feeds back rotor angle and speed signal continuously to servo drive. The drive adjusts output current in real time to realize precise torque, speed and position control. When power supply is cut off, the electromagnetic brake engages and locks motor shaft to hold vertical load position.

Onboard components:Motor stator & rotor assembly,built-in high resolution rotary encoder,24V electromagnetic holding brake,high precision bearing set,aluminum housing,power connector,encoder signal connector,brake wiring terminal

LED indicatorsNo LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface,connector pins and cable insulation; winding continuity and insulation resistance test; encoder signal waveform inspection; brake release and holding functional test.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter identification,servo gain auto tuning and alarm log reading.

Electrical & Process Parameters

Rated power:1.0kW Rated voltage:AC200V Feedback:Built-in high resolution rotary encoder Brake:24V DC electromagnetic holding brake Cooling:Natural air cooling

Mechanical & Structure

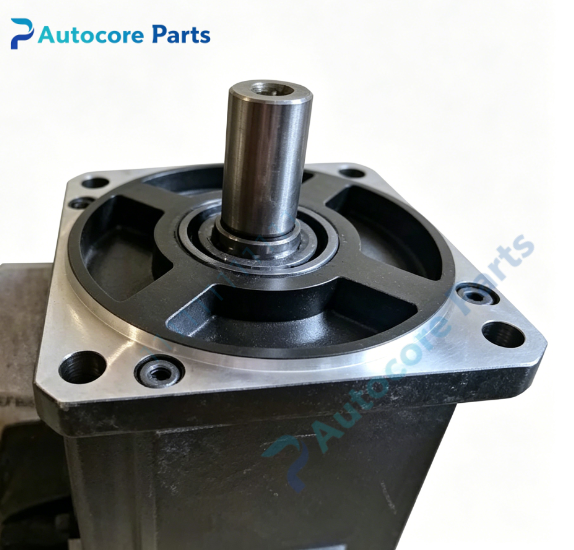

Mounting:Flange mount Protection class:IP65 (shaft and connector area) Shaft:Keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION Q series AC servo motor

System compatibility

Compatible with Sanyo Denki Q series servo drives for automation equipment medium load axis positioning.

Function

Q2AA08100DXP5Bn servo motor manufactured by Sanyo Denki. It provides high precision rotary motion and position control for medium load axis. Winding damage,encoder failure or brake malfunction will trigger servo alarm and stop axis movement. It is motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system. Align motor shaft with load coupling,fasten flange mounting bolts. Wire motor power cable,encoder feedback cable and 24V brake control wiring. Configure servo parameters,complete jog test and positioning test before formal operation.

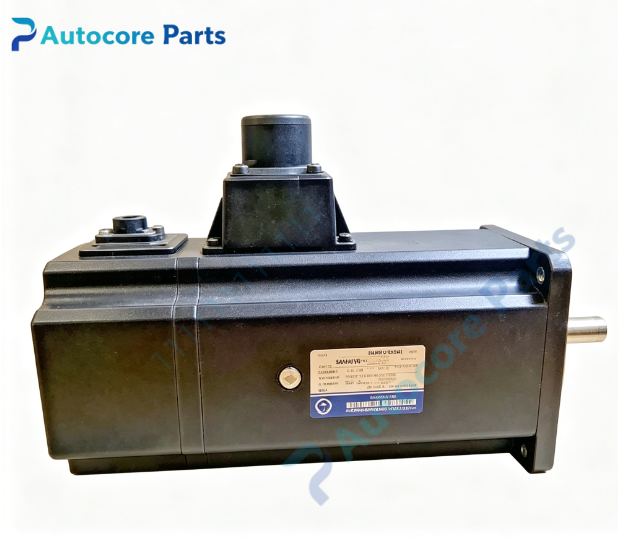

Interface3-phase power connector,encoder feedback connector,brake control connector on housing of Q2AA08100DXP5Bn.

Diagnostic

Motor cannot rotate:Power wiring error,servo enable signal missing or brake not released. Positioning inaccuracy:Encoder damage,loose coupling or servo gain mismatch. Overheat alarm:Overload load,poor ventilation or bearing wear. Abnormal running noise:Bearing damage or shaft misalignment between motor and load.

Product Brief

Q2AA08100DXP5Bn Sanyo Denki SANMOTION Q series 1.0kW AC servo motor with 24V holding brake,built-in high resolution encoder,flange mount,for semiconductor wet bench and chemical delivery automation medium load motion positioning.
