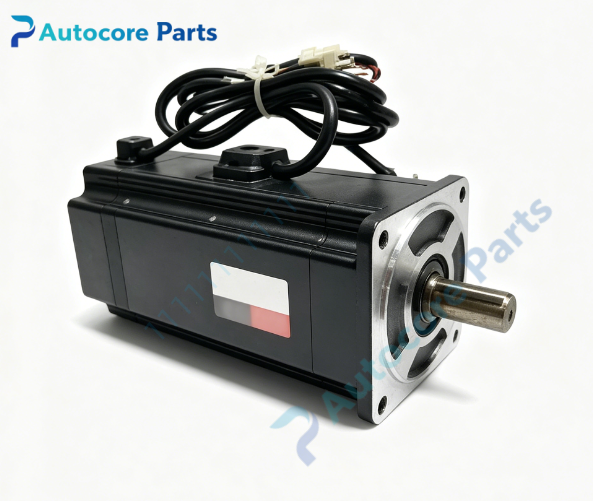

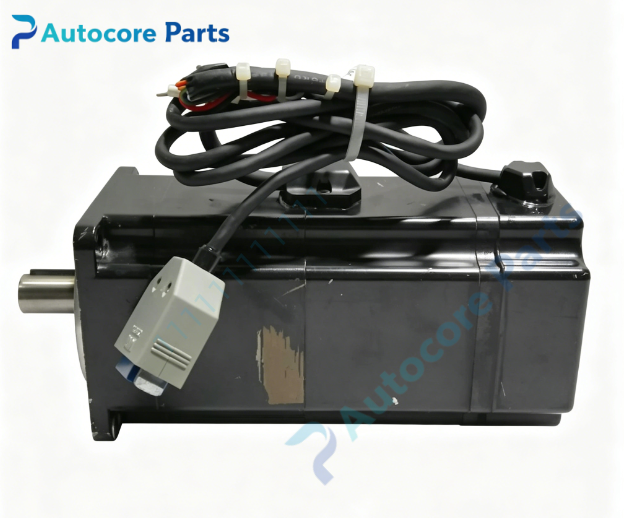

Sanyo Denki P50B08075DBS00 AC Servo Motor

Module Feature

Sanyo Denki P50B08075DBS00 belongs to SANMOTION P series AC brushless servo motor. Rated power 750W, AC200V power class, medium inertia rotor design. Built-in high resolution rotary encoder for closed-loop position feedback, integrated 24V electromagnetic power-off holding brake. Standard 80mm square flange, high torque density, strong overload capacity and excellent dynamic response. Heavy duty double ball bearing assembly, good vibration resistance and stable low-speed running characteristic. Equipped with power-off brake, suitable for medium load vertical axis applications to prevent falling after power loss. Widely used for precision motion axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The matched servo amplifier outputs three-phase AC power to motor windings. The built-in encoder continuously feeds rotor angle and speed signal back to servo drive. The drive performs real-time closed-loop calculation and adjusts output current to realize precise torque, speed and position control. When power supply cuts off, the 24V power-off holding brake will lock the motor shaft immediately to hold vertical load.

Onboard components:Motor stator & rotor assembly,built-in high resolution rotary encoder,24V electromagnetic holding brake,heavy duty double ball bearing set,aluminum alloy housing,3-phase power connector,encoder feedback signal connector,brake wiring terminal

LED indicatorsNo LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface,connector pins and cable insulation; winding continuity and insulation resistance test; encoder signal waveform inspection; brake pull-in and release function test; manual rotation smoothness test.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning, brake timing setting and alarm log reading.

Electrical & Process Parameters

Rated power:750W Rated voltage:AC200V Rotor type:Medium inertia Feedback:Built-in high resolution rotary encoder Brake:Built-in 24V power-off holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:80mm square flange mount Protection class:IP65 (shaft and connector area) Shaft:Keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION P series AC servo motor

System compatibility

Compatible with Sanyo Denki RS / PU series servo drives for automation medium load vertical axis positioning.

Function

P50B08075DBS00 servo motor manufactured by Sanyo Denki. It provides high precision rotary motion and positioning control for medium load vertical axis. Winding damage,encoder failure or loose coupling will trigger servo alarm and stop movement. Built-in holding brake ensures load safety when power is cut off. It is medium power motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system. Align motor shaft and load coupling,fasten flange mounting bolts securely. Wire motor power cable, encoder feedback cable and brake control cable. Configure servo parameters via SANMOTION software, test brake action, perform jog test and positioning verification before formal operation.

Interface3-phase power connector, encoder feedback connector, brake signal connector on housing of P50B08075DBS00.

Diagnostic

Motor cannot rotate:Power wiring error, servo enable signal missing or brake not released. Positioning inaccuracy:Encoder fault, loose coupling or servo gain mismatch. Overheat alarm:Overloaded load, poor ventilation or bearing wear. Brake failure:Brake wiring abnormal, coil burnout, cannot lock or release normally. Abnormal running noise:Bearing damage or shaft misalignment between motor and load.

Product Brief

P50B08075DBS00 Sanyo Denki SANMOTION P series 750W AC servo motor,AC200V,80mm square flange,built-in high resolution encoder and 24V power-off holding brake,for semiconductor wet bench and chemical delivery medium load vertical axis precision motion control.
