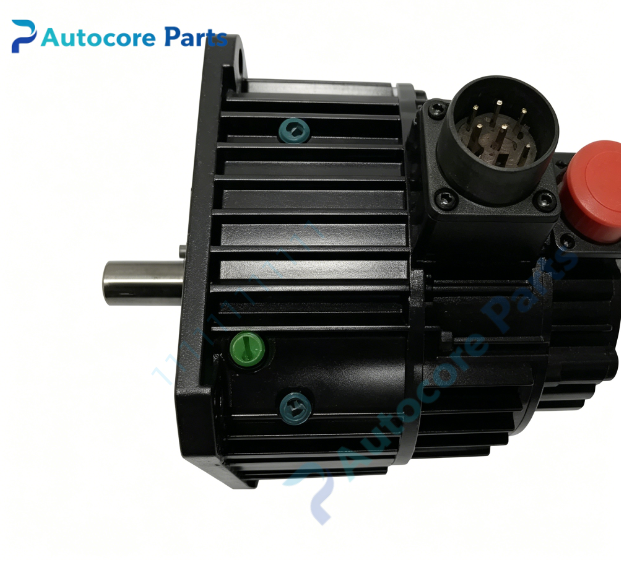

Sanyo Denki 68ZBM035HXS76 Hybrid Stepper Motor

Module Feature

Sanyo Denki 68ZBM035HXS76 is 2 phase hybrid stepper motor, step angle 1.8°, rated holding torque 3.5 Nm. NEMA23 standard flange mounting, motor body length 76mm. High rigidity bearing assembly, strong resistance to vibration. Rated phase current 4.2A, phase resistance 0.67Ω, phase inductance 3.0mH. Compact structure with high torque density, stable low speed running performance. No built-in holding brake. Widely used for light and medium load precision positioning in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The matched stepper driver outputs phase current in sequence to motor windings. By changing the energized phase sequence, the rotor rotates by fixed step angle each pulse. Upper controller sends pulse signals to control rotation angle and speed. Open-loop motion control, simple wiring and easy commissioning.

Onboard components:Stator & hybrid rotor assembly,high precision bearing set,aluminum housing,2 phase winding,power connector

LED indicatorsNo LED indicators on motor body; status LEDs are located on matched stepper drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface and connector pins; winding continuity and insulation resistance test; manual shaft rotation smoothness inspection; check connector and cable integrity.

Programming software

Sanyo Denki stepper setup software for driver current setting, microstep configuration and alarm check.

Electrical & Process Parameters

Phase:2 phase Step angle:1.8° Holding torque:3.5 Nm Phase current:4.2 A Phase resistance:0.67 Ω Phase inductance:3.0 mH Brake:Without holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:NEMA23 flange mount Protection class:IP65 (shaft and connector part) Shaft:Diameter 8mm

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki hybrid stepper motor

System compatibility

Compatible with Sanyo Denki corresponding stepper drives, used for automation equipment positioning axis control.

Function

68ZBM035HXS76 stepper motor manufactured by Sanyo Denki. It realizes fixed angle step motion by pulse command. Winding open/short circuit, bearing damage or pulse command loss will cause positioning failure and motion stop. It is economical motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off stepper drive system. Align motor shaft and load coupling, fasten flange bolts securely. Wire motor phase power cable. Set drive current and microstep parameters, complete jog test and positioning test before formal operation.

Interface2 phase winding power connector on housing of 68ZBM035HXS76.

Diagnostic

Motor no rotation:Phase wiring error or pulse command missing. Position lost:Insufficient current, overload or missing pulse signal. Abnormal running noise:Bearing wear, shaft misalignment or wrong microstep setting. Overheat:Excessive phase current or continuous overload.

Product Brief

68ZBM035HXS76 Sanyo Denki 2 phase hybrid stepper motor,1.8° step angle,3.5Nm holding torque,NEMA23 flange mount,for semiconductor wet bench and chemical delivery precision positioning control.
