Rosemount X-STREAM Enhanced Process Gas Analyzer Unit

Module Feature

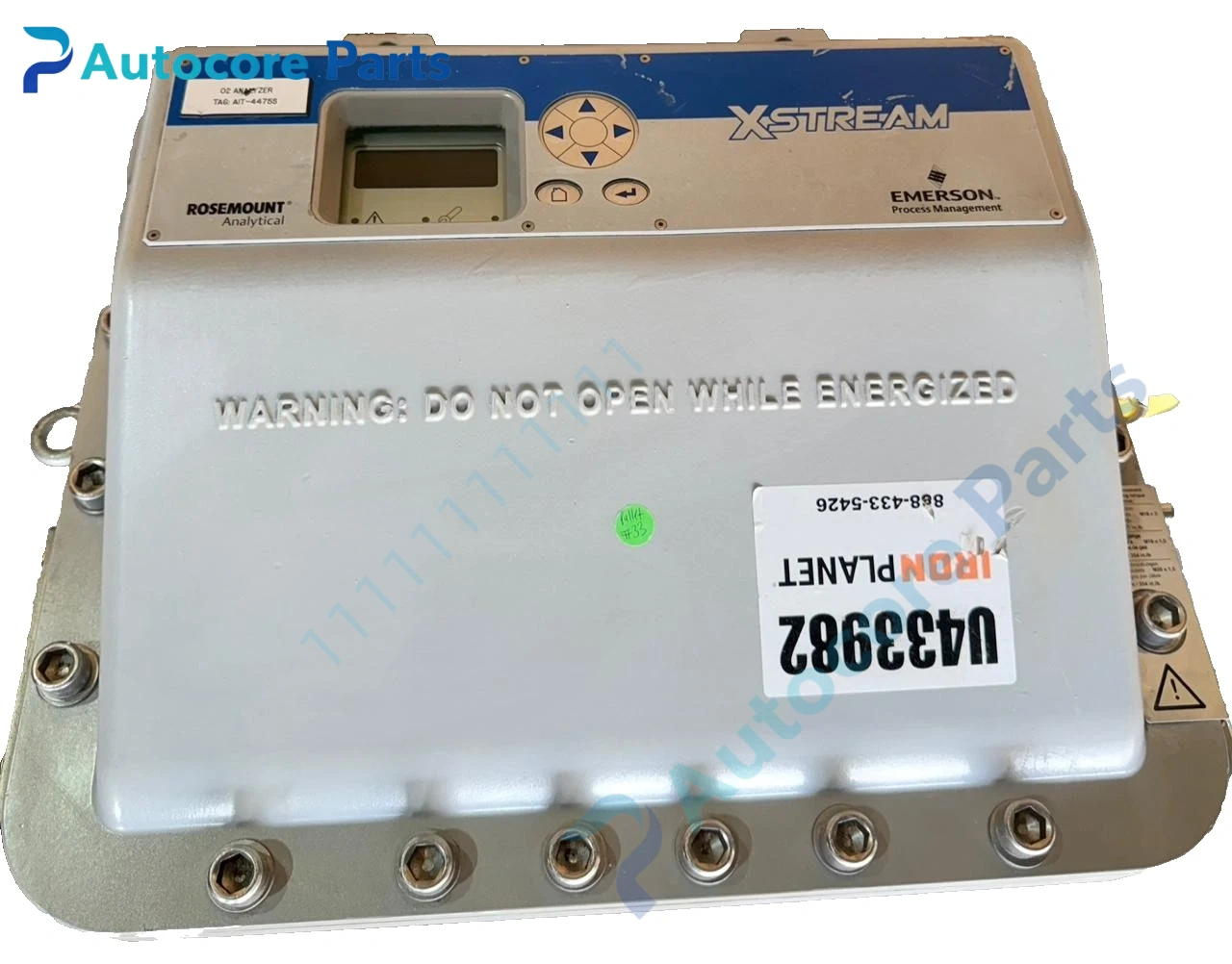

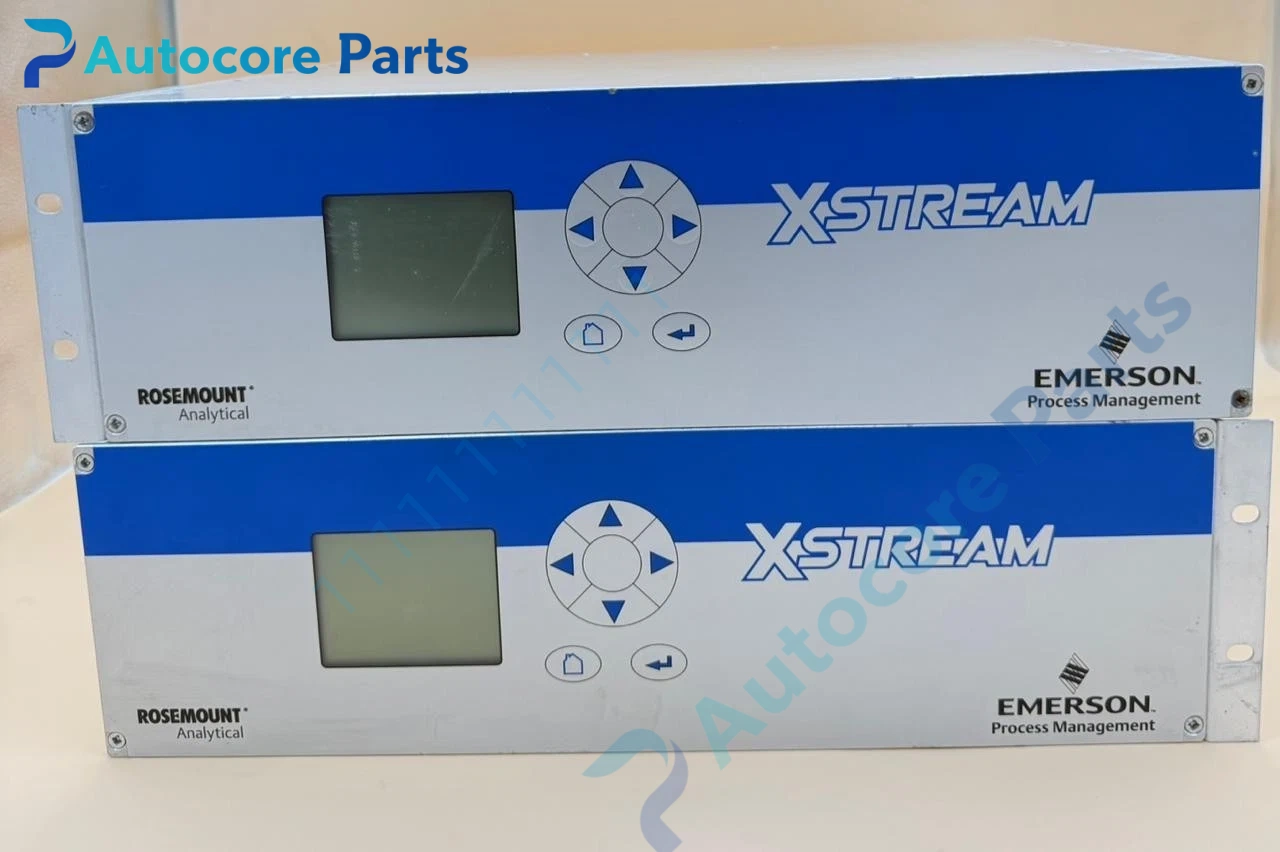

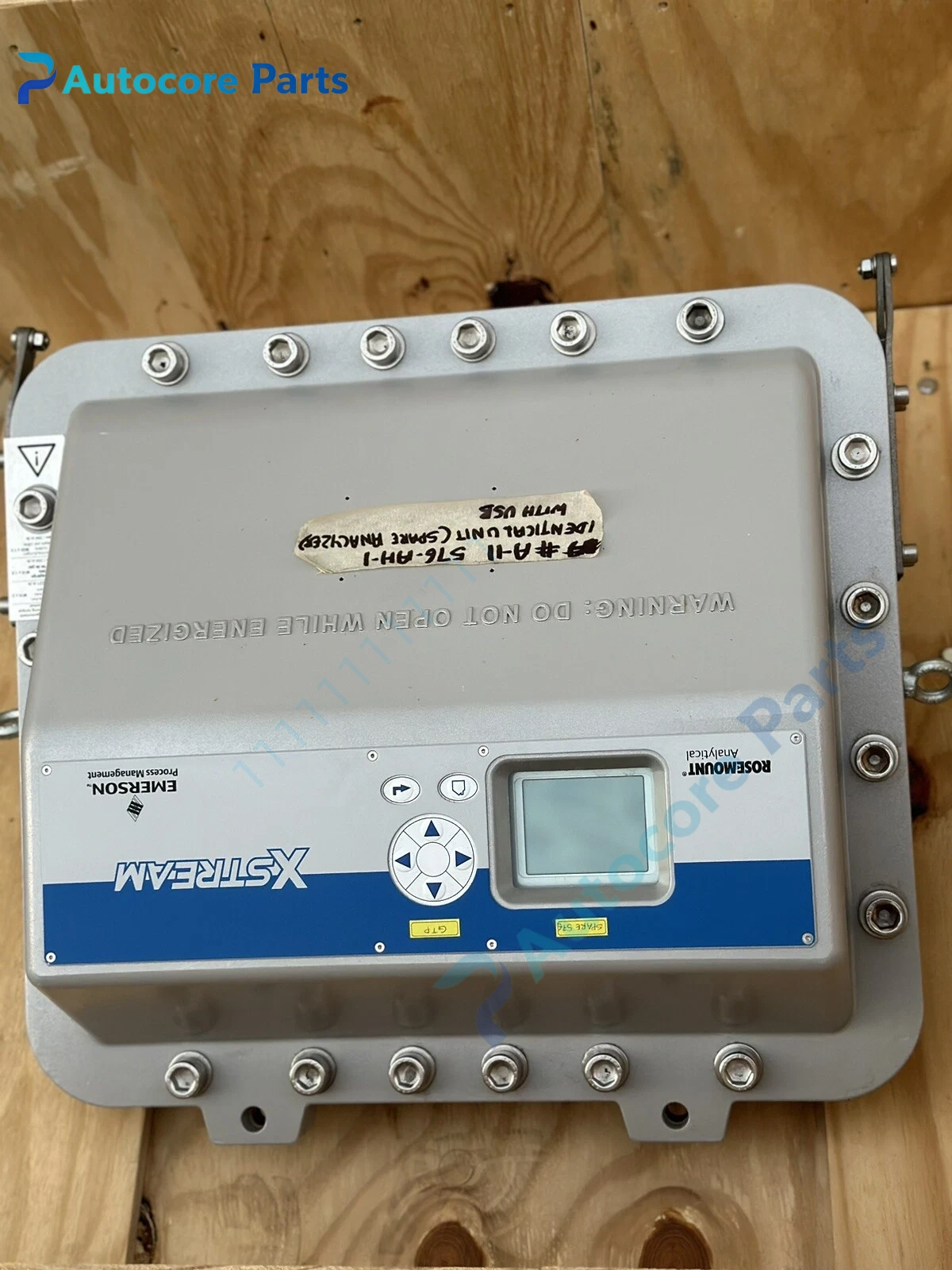

X-STREAM is Emerson Rosemount Analytical enhanced continuous gas analyzer platform, including XEGP rack general-purpose, XEXF field housing and XEFD flameproof hazardous-area variants. It adopts patented IntrinzX photometric technology for high measurement stability and extended calibration intervals. The modular design allows mixing multiple measurement principles: non-dispersive infrared, ultraviolet/visible photometry, paramagnetic oxygen, thermal conductivity and electrochemical sensors. It can simultaneously measure up to five gas components such as CO, CO2, CH4, O2, NO, SO2 and moisture. Built-in web browser interface enables remote configuration, calibration and data logging. Optional sample pump, flow monitoring, pressure compensation and auto-calibration solenoid valve assemblies. Sealed field enclosure version is rated NEMA 4X / IP66, suitable for wet, dusty and offshore environments. Widely deployed for combustion optimization, flue gas emission compliance, reformer process monitoring and protective gas purity analysis.

Working principle

Gas sample flows through the optical flow cell. Optical and sensor modules capture characteristic absorption or paramagnetic signals of target gas components. Internal DSP converts raw signals into calibrated concentration values with temperature and pressure compensation. Measured values are transmitted via isolated 4-20mA analog outputs, relay alarm contacts or digital bus to DCS and PLC systems. The embedded web server stores trend data, calibration records and event logs for maintenance traceability.

Onboard components

Photometric optical bench, paramagnetic / electrochemical / TCD sensor assemblies, sample flow cell, flow and pressure sensors, sample pump option, main CPU board, isolated analog output board, Ethernet communication circuit, local LCD keypad, alarm relay module, calibration valve manifold, metal enclosure.

LED indicators

Front panel status LED for power, measurement active, fault and calibration alarm; local LCD displays gas concentration, flow status and diagnostic codes.

Hardware self‑diagnosis

Self-check covers lamp degradation, sample flow loss, pressure deviation, sensor drift, internal temperature over-limit, analog output fault and communication disconnection. Fault history and calibration records are saved in internal memory.

Programming software

Local keypad configuration; built-in web page for remote access; Emerson analytical configuration software for advanced setup and log export.

Electrical & Process Parameters

Model:X-STREAM Enhanced Series Brand:Emerson Rosemount Analytical Device type:Multi-component Continuous Gas Analyzer Measurement technologies:NDIR, UV/VIS, paramagnetic O2, TCD, electrochemical Max measurable components:5 Power supply:100~240V AC, 50/60Hz Analog output:Isolated 4-20mA per channel Digital communication:Modbus TCP/RTU, embedded web server Enclosure options:IP20 rack mount, NEMA4X / IP66 field, flameproof Ex Function:Online continuous gas concentration monitoring for industrial process and emission control

Mechanical & Structure

Mounting:19-inch rack / wall mount Protection class:IP20 or NEMA4X IP66 (depends on variant) Housing:Coated aluminum / stainless steel

Environmental

Operating temperature:-20℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Ambient humidity:5~90% non‑condensing Certification:CE, CSA, ATEX / IECEx hazardous area option Status:Emerson original process analytical spare

Installation

Mount analyzer in control room or designated field location. Connect sample inlet, vent and calibration gas lines with proper sample conditioning system. Wire power, 4-20mA signal and network cable. Complete zero and span calibration with certified calibration gas before online operation. Maintain filter and flow cell regularly to prevent contamination.

Interface

Sample inlet / vent port, calibration gas port, 4-20mA analog terminal, relay alarm terminal, Ethernet port, mains power terminal.

Diagnostic

Concentration drift: Optical window fouling, sample moisture condensation, lamp aging. Flow fault alarm: Sample pump failure, filter blockage or leakage in sample line. No measurement reading: Sensor hardware failure or wrong gas calibration range. Web access offline: Ethernet cable fault or IP address mismatch.

Product Brief

Emerson Rosemount X-STREAM enhanced multi-component gas analyzer platform, supports NDIR, UV, paramagnetic and TCD detection, web and Modbus communication, flameproof option available, used for flue gas, process gas and emission continuous monitoring.
