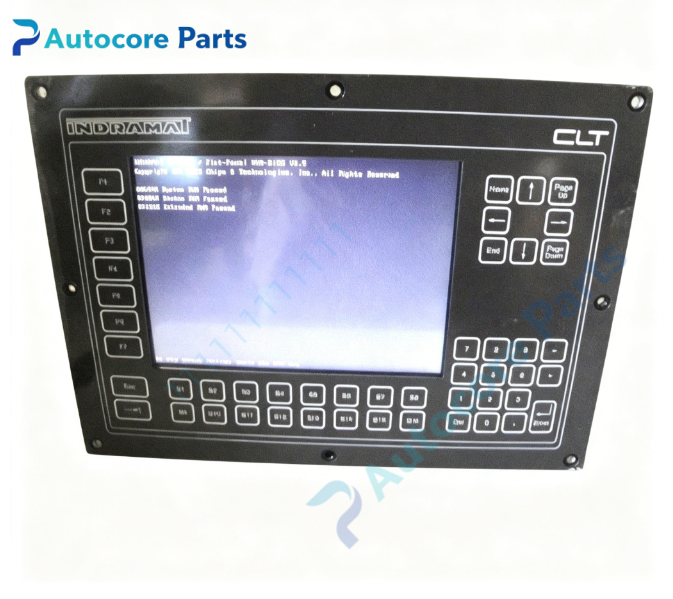

Rexroth CLT01.2C-PE-NC-SLB Control Module Spare Part

Technical Specifications

Model:CLT01.2C-PE-NC-SLB

Brand:Rexroth

Part No:R911230002

Product type:motion control module

Input voltage:24V DC control power

Dimension:100mm175mm230mm

Weight:1.68kg

Communication:encoder feedback,Profibus-DP,NC digital I/O,serial port

Mounting:Cabinet panel mounting

Protection class:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

LED indicators:Power,Run,Error,Bus status

System compatibility

CLT01.2C-PE-NC-SLB belongs to Rexroth Indramat CLT control family,compatible with Indramat servo drives and servo motors,widely used in packaging machinery,robotics,textile machines and material handling equipment.This is a legacy spare part for industrial equipment maintenance replacement.

Function

CLT01.2C-PE-NC-SLB is a microprocessor-based motion control module for servo automation systems.It supports multi-axis positioning,electronic cam and synchronous motion control,homing,point-to-point positioning and travel limit monitoring.PE represents Profibus-DP fieldbus;NC stands for NC type digital I/O;SLB denotes local backlit display.

Installation

Mount CLT01.2C-PE-NC-SLB inside electrical cabinet.Fix the module securely.Connect 24V DC power,Profibus bus cable,NC I/O wiring,encoder cables and servo drive control cables according to wiring diagram.Check wiring terminals and cable shielding before power-on commissioning.

Interface

‑24V DC power terminal

‑Encoder feedback port

‑Profibus-DP bus connector

‑NC digital I/O terminal block

‑Serial communication port

‑Local backlit display

‑Shield grounding terminal

Circuit feature

High-speed motion calculation circuit,built-in signal isolation and surge suppression circuit,Profibus communication circuit,non-volatile memory for program and parameter storage,strong anti-interference for industrial environment.

Feature

CLT01.2C-PE-NC-SLB is obsolete Rexroth spare part.Typical faults:Profibus communication failure,encoder input damage,NC I/O burnout,parameter loss,display failure,power circuit fault.Inspect bus connection,encoder signals,I/O logic and display before replacement.Backup parameters before disassembly.

Diagnostic

When module fails,Power LED abnormal,Run LED off,Error LED lit,Profibus communication interruption,axis positioning error,encoder signal loss,user program cannot execute.

Built‑in function:Multi-axis motion positioning control,homing routine,electronic cam,synchronization control,Profibus-DP communication,NC digital I/O,local backlit display,user program storage,used as Rexroth Indramat servo control spare replacement.

Product Brief

CLT01.2C-PE-NC-SLB is Rexroth Indramat CLT01.2 series motion control module equipped with Profibus-DP bus,NC I/O and local backlit display,works with matching Indramat servo drives and motors.Verify bus type and firmware compatibility before ordering.ESD protection required during handling and installation.
