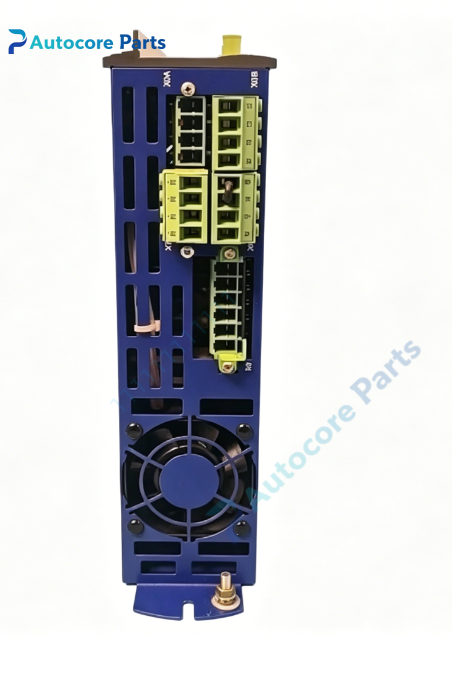

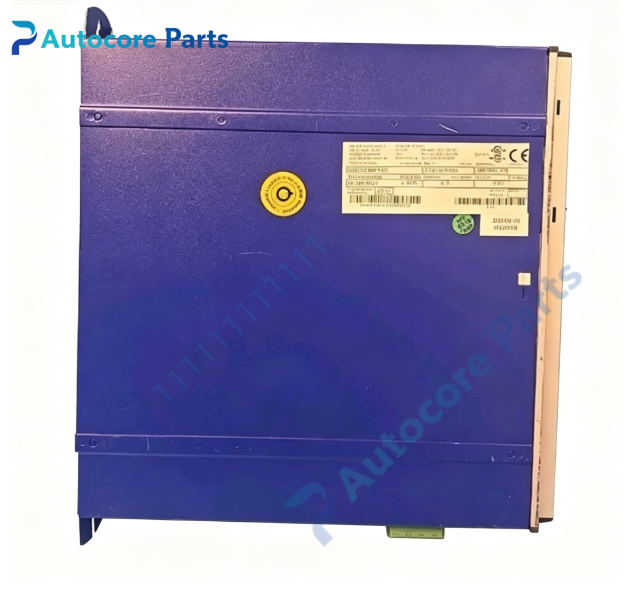

Kollmorgen S60300-PB Servo Drive Spare Part

Technical Specifications

Model:S60300-PB

Brand:Kollmorgen

Part No:S60300-PB

Product type:Digital servo amplifier

Input voltage:230V AC single phase

Continuous output current:3A RMS

Peak output current:6A

Rated apparent power:1.4kVA

Dimension:180mm130mm70mm

Weight:1.8kg

Feedback interface:Resolver, incremental encoder

Mounting:Cabinet panel mounting

Cooling:Natural convection

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

S60300-PB belongs to Kollmorgen ServoStar600 servo drive family,matched with Kollmorgen AKM and Goldline brushless servo motors,widely used in packaging machinery,printing equipment,converting machines and small material handling positioning systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

S60300-PB is compact panel-mounted digital servo amplifier with Profibus DP fieldbus card.It adopts four-quadrant regenerative braking control,supports torque,speed and position operating modes,accept ±10V analog command,step/direction signal or Profibus bus command.Resolver or incremental encoder feedback realizes high precision closed-loop motion control,supports multi-axis shared DC bus connection.Built-in auto-tuning and electronic gearing function;overcurrent,overvoltage,undervoltage,overtemperature protection,parameter setting and motor tuning can be completed by dedicated software.

Installation

Install S60300-PB inside electrical cabinet by panel mounting.Connect single-phase AC power wiring,motor power cable,feedback cable and control signal wiring.Fasten terminals,complete shielding and grounding inspection before power-on test.

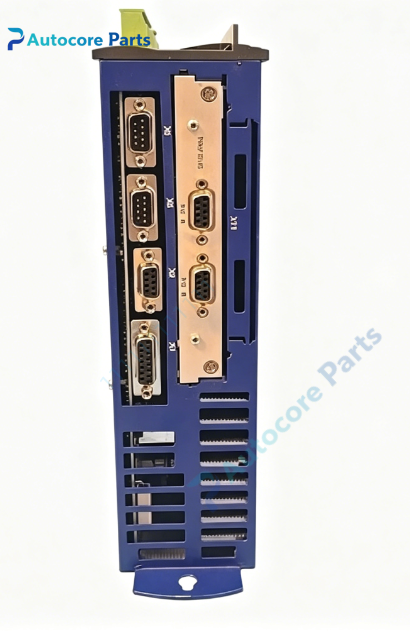

Interface

‑230V AC power terminal

‑3 phase motor power output terminal

‑Resolver / incremental encoder feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑Profibus DP communication port

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,IGBT four-quadrant power stage,integrated dynamic braking circuit,multi fault protection circuit,natural convection cooling,compact size and good anti-interference performance.

Feature

S60300-PB is obsolete Kollmorgen spare part.Typical faults:IGBT module damage,electrolytic capacitor aging,feedback circuit failure,Profibus communication fault,auxiliary power breakdown,connector corrosion.Test DC bus voltage,three-phase output balance and feedback signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no action,position drift,axis abnormal vibration,bus communication interruption.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen legacy compact servo amplifier spare replacement.

Product Brief

S60300-PB is Kollmorgen ServoStar600 compact 230V servo amplifier,3A continuous output with Profibus DP interface,matched with AKM / Goldline small frame servo motors for multi-axis fieldbus automation systems.Confirm power rating,feedback type and bus protocol before ordering.ESD protection required during handling and installation.
