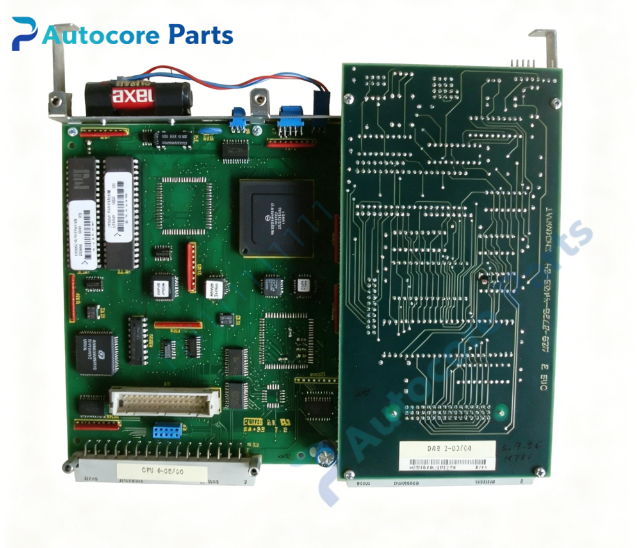

Rexroth CLT01.1C-PA-NA-SLB Control Module Spare Part

Technical Specifications

Model:CLT01.1C-PA-NA-SLB

Brand:Rexroth

Part No:R911230001

Product type:motion control module

Input voltage:24V DC control power

Dimension:100mm175mm230mm

Weight:1.65kg

Communication:encoder feedback,PA fieldbus,standard digital I/O,serial port

Mounting:Cabinet panel mounting

Protection class:IP20

Operating temperature:0~45℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

LED indicators:Power,Run,Error,Bus status

System compatibility

CLT01.1C-PA-NA-SLB belongs to Rexroth Indramat CLT control family,compatible with Indramat servo drives and servo motors,widely used in packaging machinery,robotics,textile machines and material handling equipment.This is a legacy spare part for industrial equipment maintenance replacement.

Function

CLT01.1C-PA-NA-SLB is a microprocessor-based motion control module for servo automation systems.It handles multi-axis positioning,electronic cam and synchronization control,supports homing,point-to-point positioning and limit monitoring.PA represents PA fieldbus interface;NA stands for standard I/O configuration;SLB denotes local backlit display.

Installation

Mount CLT01.1C-PA-NA-SLB inside electrical cabinet.Fix the module securely.Connect 24V DC power,fieldbus cable,I/O wiring,encoder cables and servo drive control cables according to wiring diagram.Check wiring terminals and cable shielding before power-on commissioning.

Interface

‑24V DC power terminal

‑Encoder feedback port

‑PA fieldbus connector

‑Standard digital I/O terminal block

‑Serial communication port

‑Local backlit display

‑Shield grounding terminal

Circuit feature

Motion calculation circuit,built-in signal isolation and surge suppression circuit,bus communication circuit,non-volatile memory for program and parameter storage,strong anti-interference for industrial environment.

Feature

CLT01.1C-PA-NA-SLB is obsolete Rexroth spare part.Typical faults:bus communication failure,encoder input damage,I/O burnout,parameter loss,display failure,power circuit fault.Inspect bus connection,encoder signals,I/O logic and display before replacement.Backup parameters before disassembly.

Diagnostic

When module fails,Power LED abnormal,Run LED off,Error LED lit,bus communication interruption,axis positioning error,encoder signal loss,program cannot execute.

Built‑in function:Multi-axis motion positioning control,homing routine,electronic cam,synchronization control,PA fieldbus communication,standard I/O,local display,user program storage,used as Rexroth Indramat servo control spare replacement.

Product Brief

CLT01.1C-PA-NA-SLB is Rexroth Indramat CLT01.1 series motion control module with PA fieldbus and local display,works with matching Indramat servo drives and motors.Verify bus type and firmware compatibility before ordering.ESD protection required during handling and installation.
