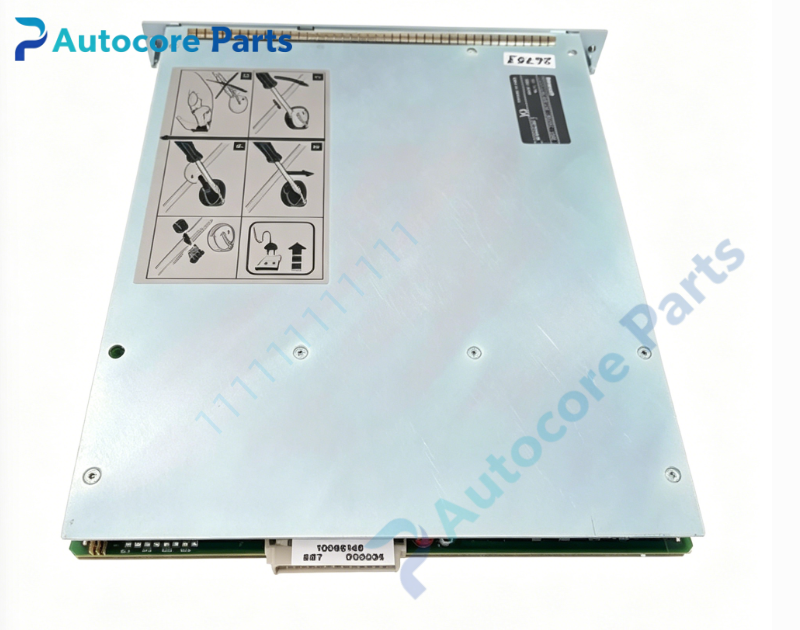

Rexroth 608830174 Spare Part

Technical Specifications

Model:608830174

Brand:Rexroth

Product type:Servo tightening system control module

Power supply:24 Vdc,19.2~28.8V tolerance

Control function:Tightening sequence operation,torque angle logic calculation,recipe storage,hardware self-diagnosis,fault indication

Communication:Ethernet,internal system bus

Mounting:Plug-in installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.33kg

Dimension:195mm82mm38mm

Certification:CE

Protection class:IP20

System compatibility

608830174 belongs to Rexroth ErgoSpin servo tightening system family,matched with tightening spindle,transducer and drive units.Widely applied in automobile assembly tightening workstations.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

608830174 serves as Rexroth ErgoSpin tightening system control module.It executes multi-step tightening programs and real-time torque-angle closed-loop control.It stores multiple fastening recipes and records assembly process data for quality traceability.It communicates with upper host and HMI via Ethernet to transmit production data and fault information.It receives feedback signals from torque transducer and sends control commands to servo drive.It acts as core logic control component for Rexroth ErgoSpin tightening workstation.

Installation

Install 608830174 to designated slot and lock fasteners.Complete power,bus and signal wiring according to wiring drawing.Check 24V power polarity and equipment grounding before power-on.

Interface

‑24Vdc power input terminal

‑Transducer & drive signal terminal block

‑Ethernet port,internal bus connector

‑Status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,signal galvanic isolation design,strong anti-interference performance for workshop industrial environment.

Feature

608830174 is obsolete Rexroth series spare part.Typical failures include recipe loss,abnormal tightening curve,network communication dropout,connector pin oxidation.Check circuit board and connector pins before replacement.This module must match corresponding Rexroth ErgoSpin tightening system,direct substitution without inspection is not recommended.

Diagnostic

When signal distortion,communication failure or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:Tightening sequence control,torque-angle algorithm calculation,recipe storage,data upload,status monitoring,self-diagnosis and fault alarm,used as Rexroth ErgoSpin servo tightening system spare replacement.

Product Brief

608830174 is Rexroth old control module for ErgoSpin servo tightening assembly workstation.Confirm compatibility with corresponding spindle,transducer and drive before ordering.ESD protection required during handling and installation.
