Rexroth 608830206 Spare Part

Technical Specifications

Model:608830206

Brand:Rexroth

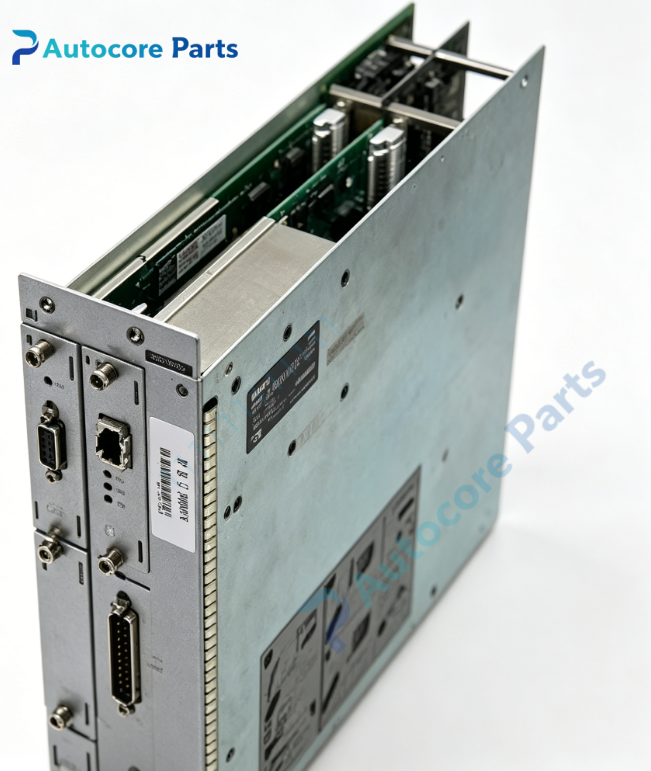

Product type:Servo tightening system communication interface board

Power supply:24 Vdc,19.2~28.8V tolerance

Control function:Industrial bus data exchange,assembly data upload,parameter download,hardware self-diagnosis,fault indication

Communication:Ethernet / fieldbus,internal system bus

Mounting:Plug-in installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.28kg

Dimension:186mm75mm33mm

Certification:CE

Protection class:IP20

System compatibility

608830206 belongs to Rexroth servo tightening system family,matched with tightening controller and drive modules.Widely applied in automobile assembly tightening workstations.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

608830206 serves as Rexroth servo tightening system communication board.It realizes data interaction between tightening controller and upper computer or factory PLC.It uploads tightening curve,torque-angle result and fault log for product quality traceability.It supports remote parameter configuration and program download for tightening recipes.It transmits real-time operating status and alarm information of the tightening unit to host system.It acts as data exchange communication component for Rexroth tightening workstation.

Installation

Install 608830206 to designated slot and lock fasteners.Complete 24V power,bus and network wiring according to wiring drawing.Check 24V power polarity and equipment grounding before power-on.

Interface

‑24Vdc power input terminal

‑Fieldbus signal terminal block

‑Ethernet port,internal bus connector

‑Communication status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,signal galvanic isolation design,strong anti-interference performance for workshop industrial environment.

Feature

608830206 is obsolete Rexroth series spare part.Typical failures include network disconnection,data packet loss,communication timeout,connector pin oxidation.Check circuit board and communication channels before replacement.This board must match corresponding Rexroth tightening servo system,direct substitution without inspection is not recommended.

Diagnostic

When bus interference,signal loss or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:Fieldbus and ethernet data transmission,assembly data upload,recipe parameter download,status monitoring,self-diagnosis and fault alarm,used as Rexroth servo tightening system spare replacement.

Product Brief

608830206 is Rexroth old communication interface board for servo tightening assembly workstation.Confirm compatibility with corresponding tightening controller before ordering.ESD protection required during handling and installation.
