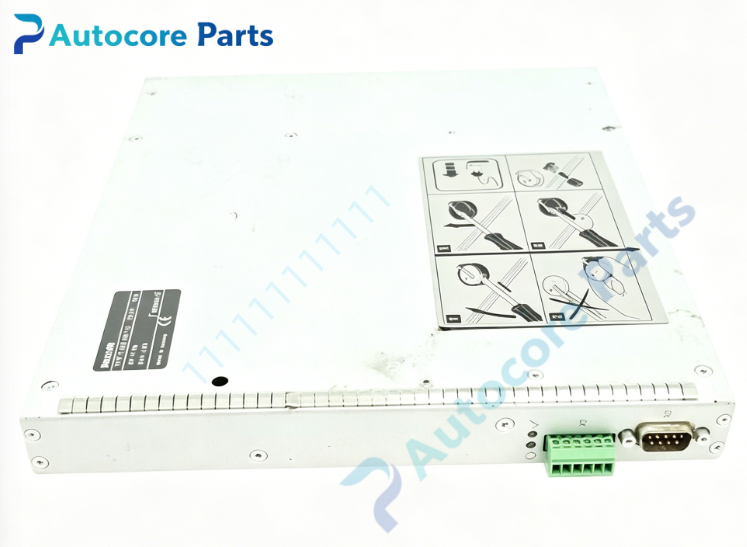

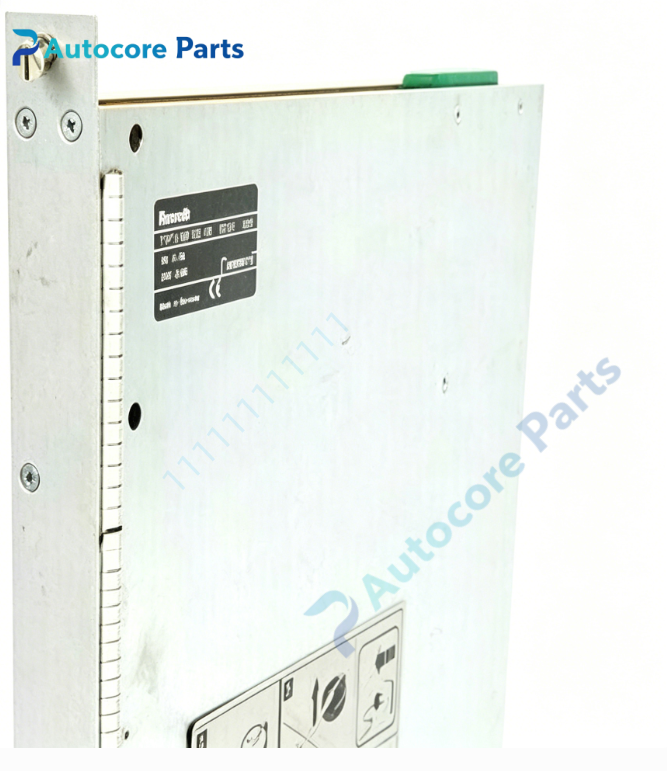

Rexroth 608830162 Spare Part

Technical Specifications

Model:608830162

Brand:Rexroth

Product type:Servo tightening system power supply board

Power input:100-240V AC 50/60Hz

Output:24 Vdc,19.2~28.8V tolerance

Control function:AC-DC power conversion,overvoltage protection,overload protection,short-circuit protection,hardware self-diagnosis,fault indication

Communication:System internal bus

Mounting:Plug-in installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.31kg

Dimension:192mm80mm36mm

Certification:CE

Protection class:IP20

System compatibility

608830162 belongs to Rexroth servo tightening system family,matched with tightening controller and drive modules.Widely applied in automobile assembly tightening workstations.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

608830162 serves as Rexroth servo tightening system power supply board.It converts alternating current input into stable 24V DC power to supply controller,measurement and drive modules of the tightening workstation.It integrates multi-protection functions including overvoltage,overload and short-circuit protection to prevent damage to rear-end components.It monitors output voltage in real time and sends fault alarm signals to main control unit.It acts as core power supply component for Rexroth tightening workstation.

Installation

Install 608830162 to designated slot and lock fasteners.Complete AC input and DC output wiring according to wiring drawing.Check input voltage and equipment grounding before power-on.

Interface

‑AC power input terminal

‑24Vdc power output terminal block

‑Internal bus connector

‑Power status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,input/output isolation design,strong anti-interference performance for workshop industrial environment.

Feature

608830162 is obsolete Rexroth series spare part.Typical failures include no DC output,intermittent power drop,frequent protection shutdown,connector pin oxidation.Check power circuit and connector pins before replacement.This board must match corresponding Rexroth tightening servo system,direct substitution without inspection is not recommended.

Diagnostic

When overvoltage,overload,short-circuit or overtemperature fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:AC-DC power conversion,stable 24V DC output,multi-protection,status monitoring,self-diagnosis and fault alarm,used as Rexroth servo tightening system spare replacement.

Product Brief

608830162 is Rexroth old power supply board for servo tightening assembly workstation.Confirm compatibility with corresponding tightening controller and drive before ordering.ESD protection required during handling and installation.
