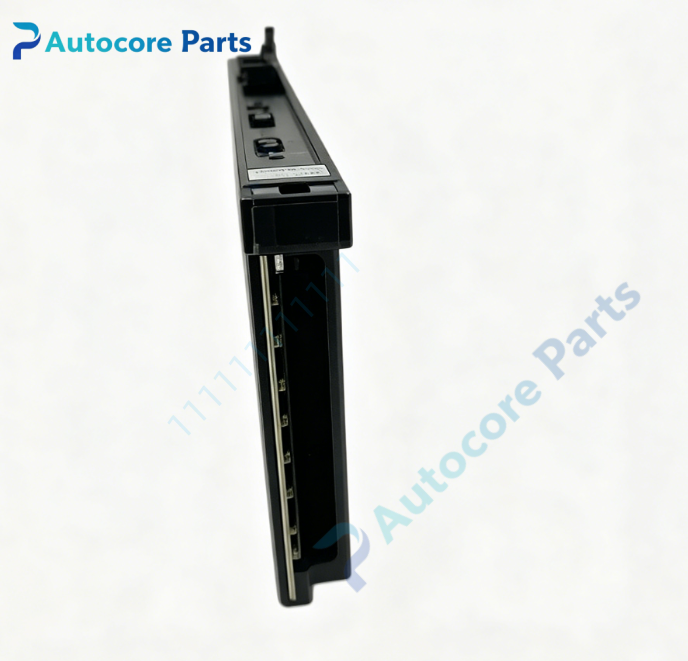

RELIANCE 0-57412 Field Regulator Module

Technical Specifications

Model:0-57412

Brand:RELIANCE

Product type:Field Regulator Module

Weight:0.71kg

Dimension:263mm58mm28mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

0-57412 belongs to RELIANCE AutoMax DCS5000 series field regulator module.

Installed into AutoMax rack,work with AutoMax CPU 0-57407,drive control module 57406 and resolver module 57411.

Specially designed for Reliance MaxPak DC motor excitation loop control.

Match with armature power unit to realize full closed-loop speed regulation of large DC motor.

Commonly used for old DCS and DC drive equipment maintenance and spare replacement.

Function

0-57412 is dedicated field excitation regulator module for RELIANCE AutoMax system.

Receive field current setpoint command from AutoMax CPU.

Realize closed-loop regulation of DC motor excitation field current.

Isolated armature voltage sampling for motor back EMF detection.

Four-level adjustable current calibration for onsite parameter tuning.

Output gate trigger signal to field power module.

Collect excitation fault signal and upload alarm information to AutoMax controller.

Onboard diagnostic LED indicators for excitation running status and fault warning.

Installation

Power off the whole AutoMax rack and cut main power supply.

Insert 0-57412 module into designated rack slot.

Lock module retaining clips.

Connect backplane bus,25-pin field gate connector,9-pin field power module port and isolated armature voltage terminal.

Separate excitation power cable and low voltage control cable to reduce interference.

Power on system,calibrate field current and armature voltage parameters.

Test excitation regulation performance and overcurrent protection function.

Interface

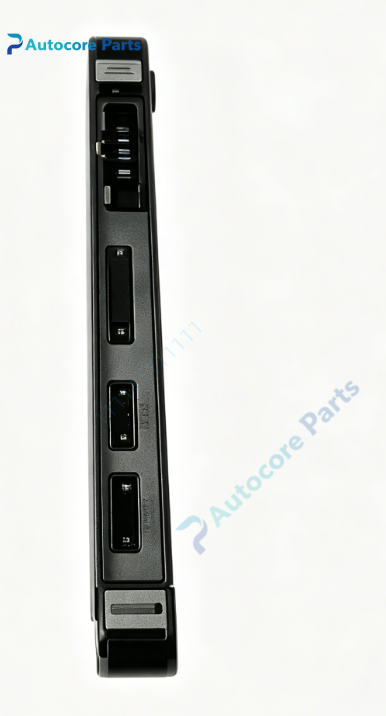

AutoMax backplane edge connector,25-pin field gate connector,9-pin field power module port,isolated armature volts terminal,status and fault LED indicators.

Feature

RELIANCE 0-57412,AutoMax DC motor field excitation regulator module.

Independent closed-loop control of motor field current for constant power speed regulation.

Isolated armature voltage sampling circuit to protect control side from high voltage surge.

Four optional current calibration levels to adapt different DC motor excitation parameters.

Multiple dedicated D-Sub connectors for connection with field power unit.

Discontinued obsolete module,supply only for old automation system spare replacement.

Suitable for metallurgy,paper-making heavy-duty DC drive production line renovation.

Diagnostic

Field current unstable:calibration parameter drift or excitation wiring interference;

No field excitation output:field gate connector loose or power module fault;

Armature voltage sampling abnormal:isolated sampling circuit damage;

Module fault LED on:backplane communication failure or module hardware damage;

Overcurrent alarm:motor field winding short circuit.

Product Brief

RELIANCE 0-57412 is AutoMax DC motor field regulator module.

It controls DC motor excitation current and samples armature voltage to realize constant power speed regulation,widely used as spare part for heavy industry DC drive automation system maintenance.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
