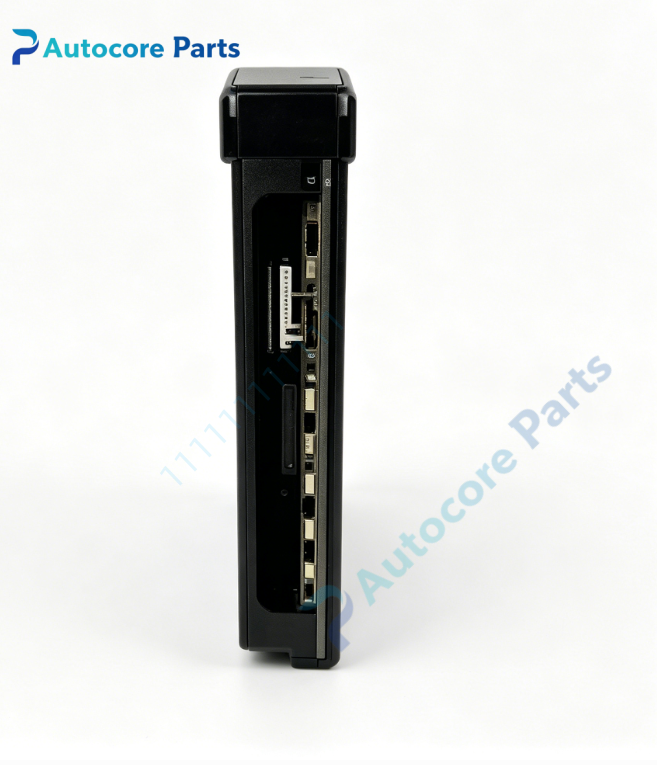

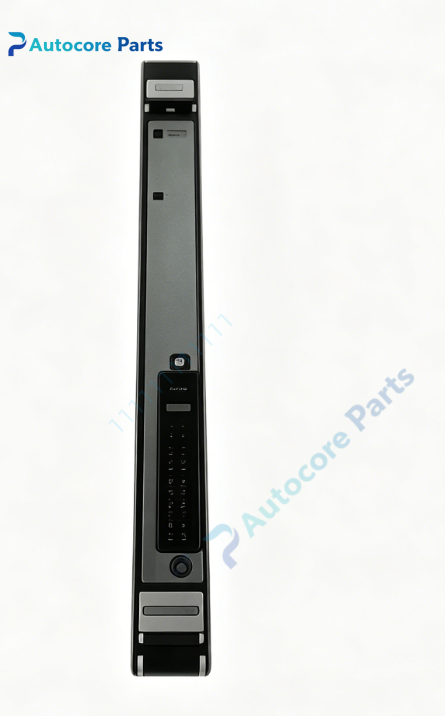

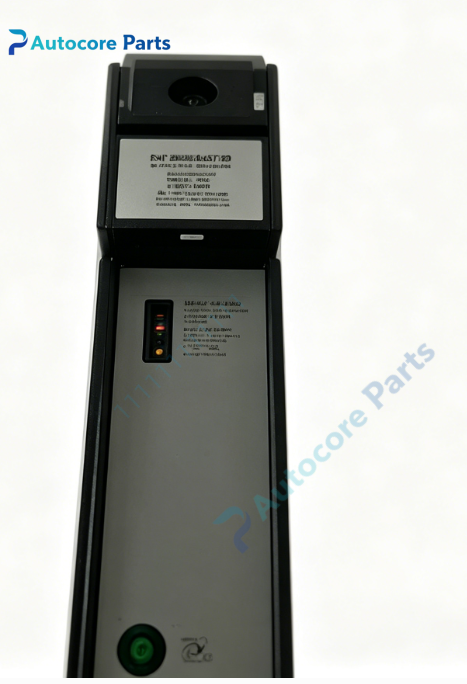

RELIANCE 0-57411 Resolver Input Module

Technical Specifications

Model:0-57411

Brand:RELIANCE

Product type:Resolver Input Module

Resolution:12-bit per revolution,2-bit revolution counter

Sampling time:500μs ~ 32.767s configurable

External strobe sync input

Weight:0.44kg

Dimension:263mm58mm28mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

0-57411 belongs to RELIANCE AutoMax DCS5000 series resolver input module.

Installed into AutoMax rack,work with AutoMax CPU 0-57407,drive control module 57406 and analog I/O modules.

Collect resolver rotary signal from motor shaft for closed-loop speed and position control.

Widely matched with Reliance MaxPak and Cardpak DC drive systems.

Commonly used for old DCS and drive equipment maintenance and spare replacement.

Function

0-57411 is resolver feedback acquisition module for RELIANCE AutoMax system.

Receive excitation and feedback signal from resolver rotary transformer mounted on motor shaft.

Convert resolver analog sine/cosine signal into digital shaft angle and revolution data.

Calculate motor real-time rotational speed and angular position for motion closed-loop control.

External strobe input for synchronization with external trigger event.

Upload position and speed data to AutoMax CPU for motion algorithm operation.

Onboard diagnostic LED indicators for module running status and signal fault alarm.

Installation

Power off the whole AutoMax rack and cut main power supply.

Insert 0-57411 module into designated rack slot.

Lock module retaining clips.

Connect backplane bus and twisted-pair resolver field wiring.

Resolver cable use high-quality twisted pair and separate from high voltage power cable.

Power on system,configure resolver parameters and calibrate zero position.

Test position sampling and speed feedback stability.

Interface

AutoMax backplane edge connector,resolver signal terminal block,external strobe input terminal,status and fault LED indicators.

Feature

RELIANCE 0-57411,AutoMax resolver position speed input module.

12-bit high resolution angle measurement,plus multi-turn revolution counting.

Configurable sampling cycle to adapt different motion control response requirements.

External strobe synchronization for precise position capture.

Twisted pair wiring design for resolver signal anti-interference.

Discontinued obsolete module,supply only for old automation system spare replacement.

Suitable for metallurgy,paper-making heavy-duty production line motion control renovation.

Diagnostic

Position signal jitter:resolver cable damage or wiring interference;

No position feedback:resolver excitation fault or terminal poor contact;

Position value jump:zero point calibration lost or resolver hardware wear;

Module fault LED on:backplane communication failure or module circuit damage;

Strobe sync abnormal:external trigger signal wiring fault.

Product Brief

RELIANCE 0-57411 is AutoMax resolver input module.

It collects rotary transformer signal and converts to digital shaft position and speed data for high-precision motor closed-loop motion control,widely used as spare part for heavy industry automation system maintenance.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
