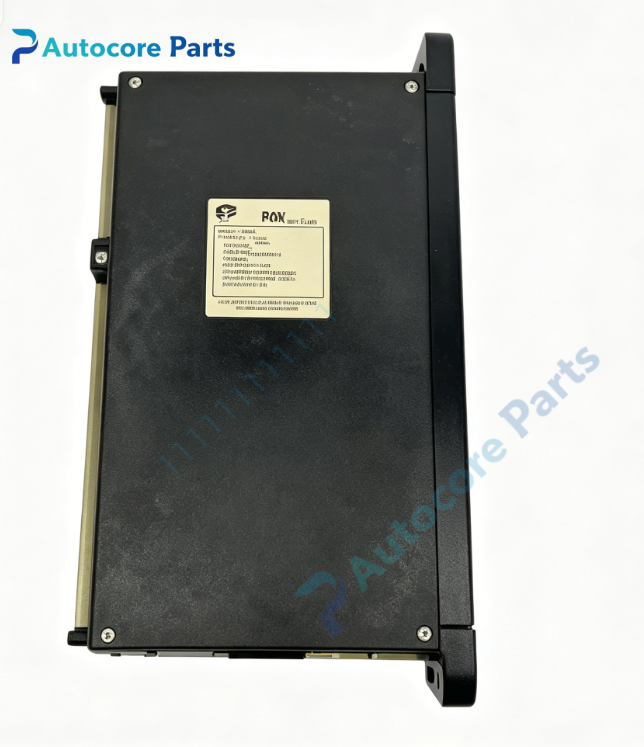

RELIANCE 0-57410 Analog Output Module

Technical Specifications

Model:0-57410

Brand:RELIANCE

Product type:4 Channel Analog Output Module

Channel quantity:4 points

Signal range:4-20mA, ±10VDC, software configurable

Isolation voltage:1500V

Weight:0.43kg

Dimension:263mm58mm28mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

0-57410 belongs to RELIANCE AutoMax DCS5000 series analog output module.

Installed into AutoMax rack,work with AutoMax CPU 0-57407,57405 analog I/O module and digital I/O modules.

Output analog setpoint signal for Reliance MaxPak,Cardpak DC drives.

Match with other AutoMax I/O modules within the same control rack.

Commonly used for old DCS and drive equipment maintenance and spare replacement.

Function

0-57410 is 4-channel analog output module for RELIANCE AutoMax DCS5000 system.

Convert digital command from AutoMax CPU into analog voltage or current signal.

Each channel supports software switching between 4-20mA and ±10VDC signal type.

Provide speed reference,torque setpoint signal to DC and AC drive controllers.

Onboard diagnostic LED indicators for module status and channel fault warning.

Optical isolation between backplane logic circuit and field analog loop to reduce interference.

Installation

Power off the whole AutoMax rack and cut main power supply.

Insert 0-57410 module into designated rack slot.

Lock module retaining clips.

Connect backplane bus and shielded analog signal wiring to terminal block.

Analog shield cable should be separated from high voltage power cable.

Power on system,configure signal type and calibrate output range.

Test each channel output value and verify signal stability.

Interface

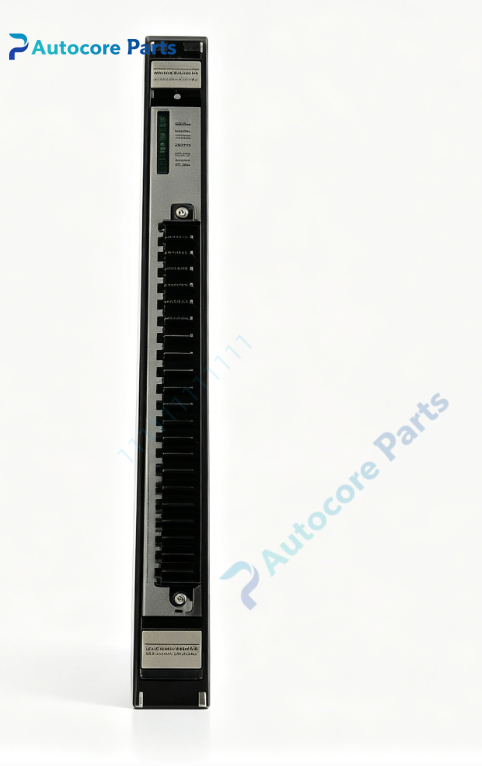

AutoMax backplane edge connector,analog signal terminal block,status and fault LED indicators.

Feature

RELIANCE 0-57410,AutoMax 4-channel configurable analog output module.

Each channel freely switch between current and voltage output mode.

1500V isolation protects rack backplane from field surge.

LED diagnosis for quick onsite channel troubleshooting.

High resolution D/A conversion for precise drive setpoint control.

Discontinued obsolete module,supply only for old automation system spare replacement.

Suitable for metallurgy,paper-making production line drive system renovation.

Diagnostic

Analog output drift:shield grounding fault or D/A component aging;

No analog signal output:backplane communication failure or channel circuit damage;

Output value inaccurate:channel calibration parameter lost;

Module fault LED on:module hardware failure or rack power abnormality;

Channel output jitter:external electromagnetic interference.

Product Brief

RELIANCE 0-57410 is AutoMax 4-channel analog output module.

It converts digital control command into configurable 4-20mA or ±10VDC analog signal to control drive speed and torque,widely used as spare part for heavy industry automation system maintenance.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
