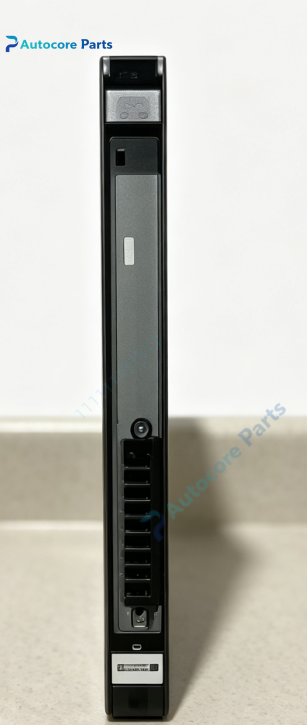

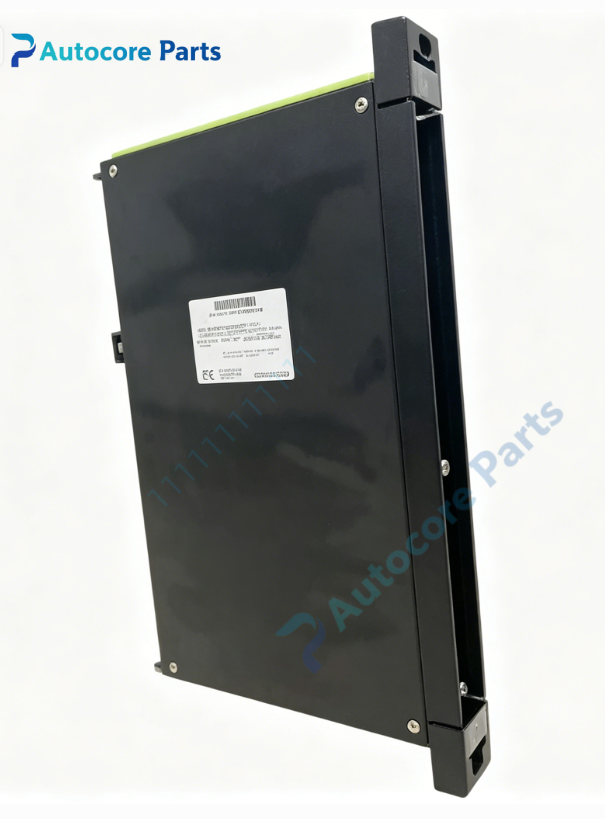

RELIANCE 0-57419 Digital Input Modul

Technical Specifications

Model:0-57419

Brand:RELIANCE

Product type:32 Channel 5-24VDC Digital Input Module

Number of channels:32 points

Signal type:5~24VDC sink/source input

Isolation voltage:5000V

Isolation group:8 isolated commons,4 points per group

Weight:0.43kg

Dimension:263mm58mm28mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

0-57419 belongs to RELIANCE AutoMax DCS5000 series digital input module.

Installed into AutoMax rack,work with AutoMax CPU 0-57407 and other I/O modules.

Collect field sensor,limit switch and pushbutton 5~24VDC on-off signal.

Can coordinate with drive control module 57406,analog I/O module 57405 in the same rack.

Commonly used for old DCS and drive equipment maintenance and spare replacement.

Function

0-57419 is 32-channel 5-24VDC digital input module for RELIANCE AutoMax DCS5000 system.

Receive DC switch signal from proximity sensor,limit switch and local push button.

High voltage optocoupler isolation between field circuit and rack backplane bus.

Convert field on/off signal into digital data and transmit to AutoMax CPU.

32 independent LED indicators to display real-time status of each input channel.

8 groups isolated common terminal design to reduce cross interference between different signal loops.

Built-in surge suppression circuit to protect module from field voltage spike.

Installation

Power off the whole AutoMax rack and cut main power supply.

Insert 0-57419 module into designated rack slot.

Lock module retaining clips.

Connect backplane bus and field wiring to module terminal block.

Separate DC signal cable and high voltage power cable.

Power on system,read input state through AutoMax programming software.

Test each channel and verify LED indication consistency.

Interface

AutoMax backplane edge connector,field wiring terminal block,32 channel status LED indicators.

Feature

RELIANCE 0-57419,AutoMax 32-channel 5~24VDC digital input module.

5000V high isolation withstand voltage for heavy industrial field surge protection.

32 points high density input,8 groups isolated common terminals.

Independent LED for each channel for quick on-site troubleshooting.

Support sink and source type sensor wiring.

Discontinued obsolete module,supply only for old automation system spare replacement.

Suitable for metallurgy,paper-making production line control renovation.

Diagnostic

Channel no signal input:field power missing or input circuit damage;

Random signal fluctuation:surge interference or poor terminal contact;

LED indicator always off:module backplane communication failure;

Multiple channels abnormal:common group wiring fault;

Input burnout:field overvoltage access.

Product Brief

RELIANCE 0-57419 is AutoMax 32-channel 5-24VDC digital input module.

It collects on-off signal from field sensors and switches,transmits isolated digital signal to AutoMax CPU,widely used as spare part for heavy industry automation system maintenance.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
