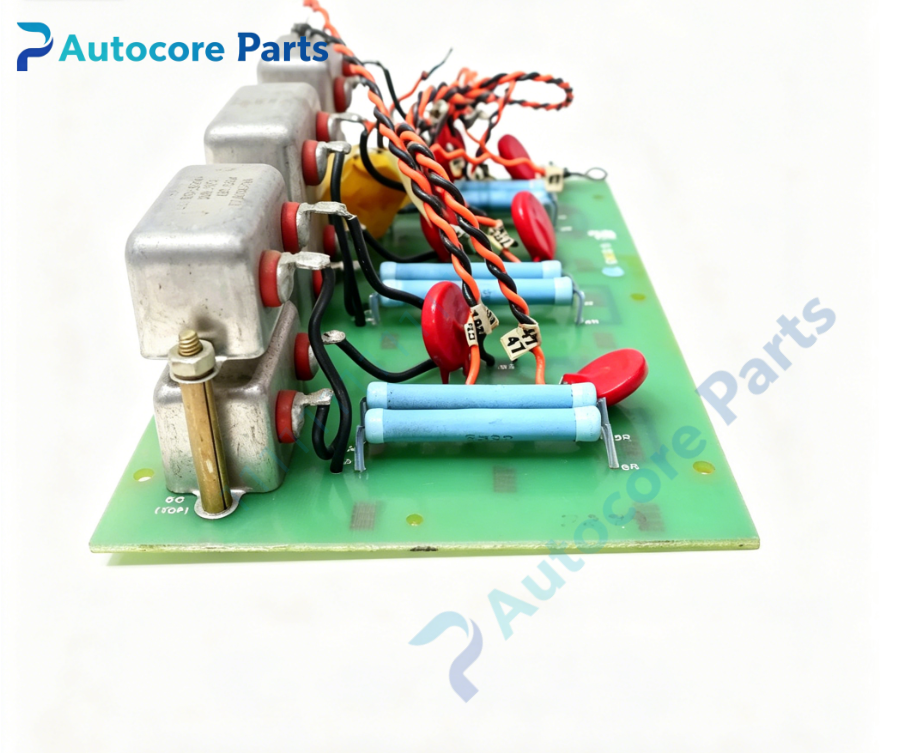

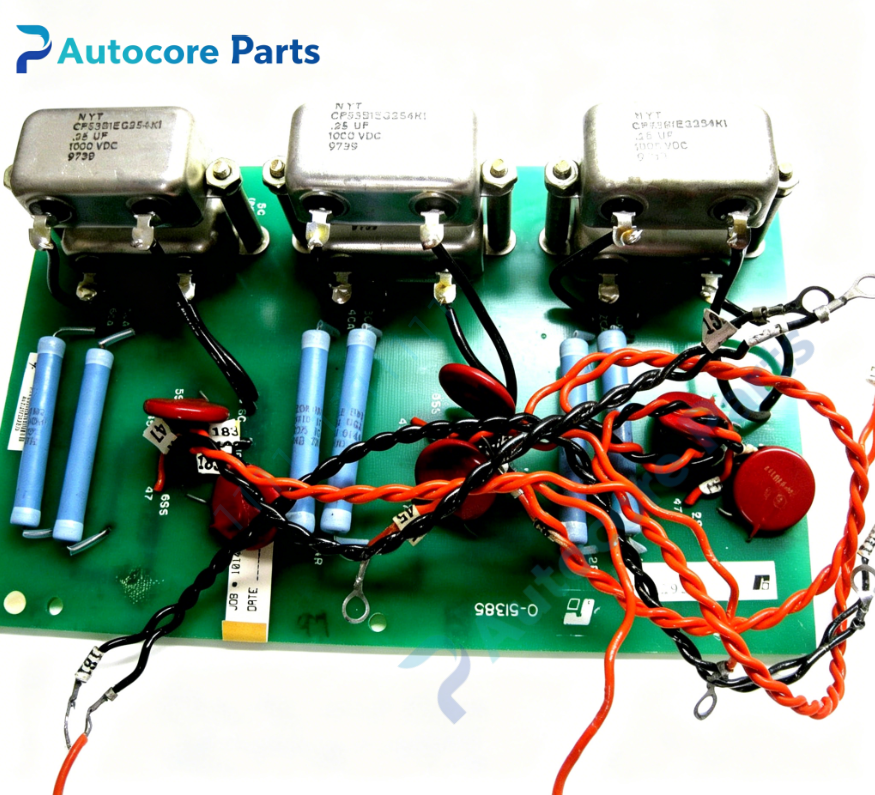

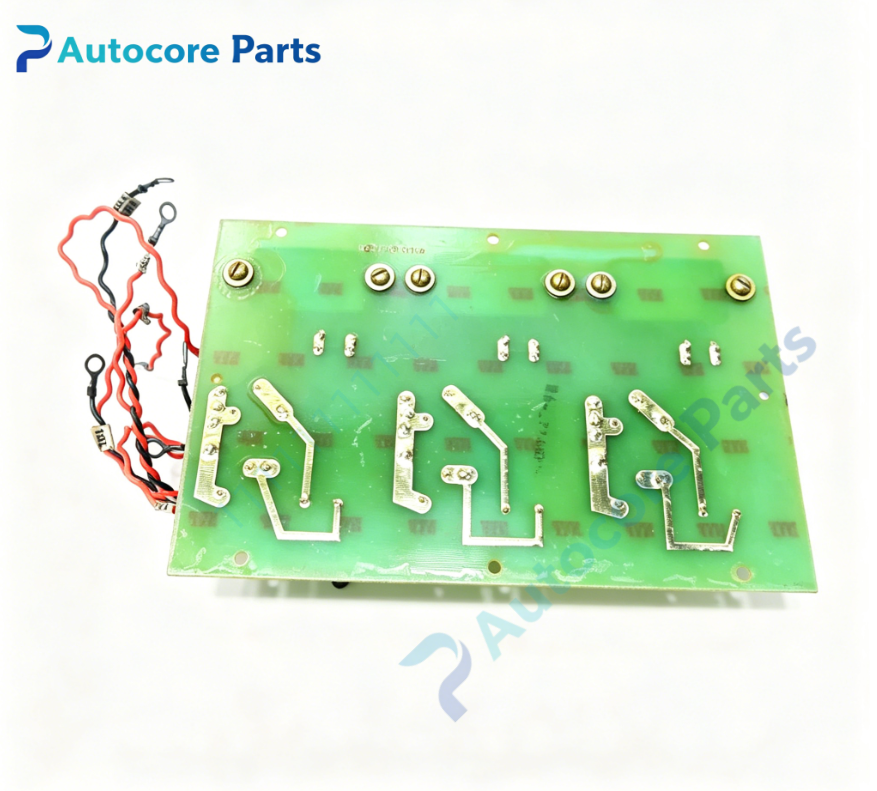

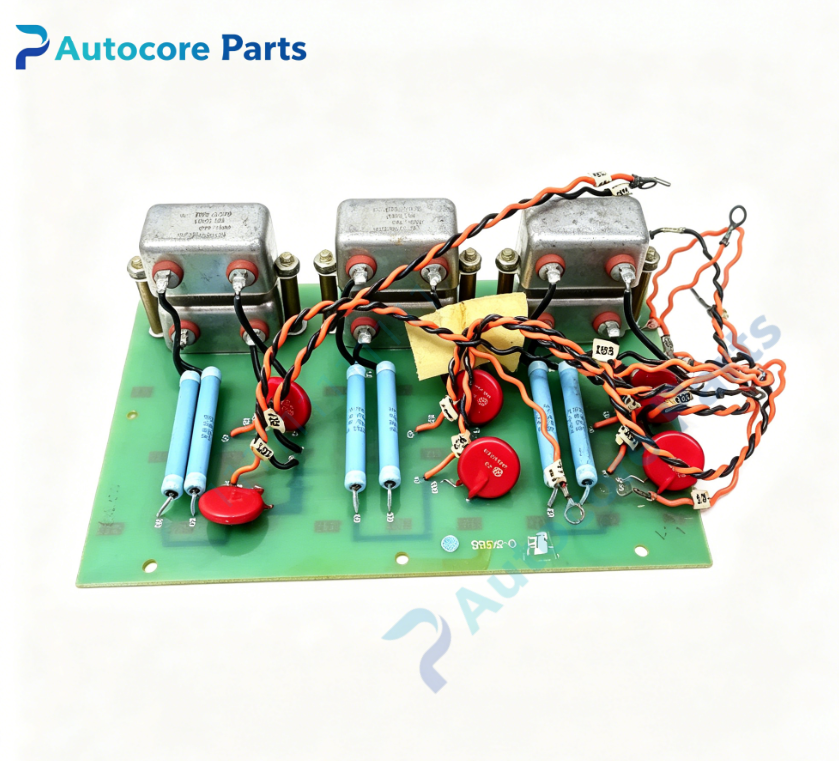

RELIANCE 0-51385 Network Compression Drive Board

Technical SpecificationsModel:0-51385 Brand:RELIANCE Product type:Network Compression Drive Board Weight:0.64kg Dimension:215mm133mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51385 belongs to RELIANCE legacy DC drive network compression auxiliary board. Installed inside Reliance DC variable speed drive cabinet,works with main controller board and feedback signal circuit. It completes analog signal compression and network matching processing for drive control loop. Commonly used for old industrial DC drive equipment maintenance and spare replacement.

Function0-51385 is dedicated network compression drive board for RELIANCE DC drive system. Compress and condition analog feedback and reference signals for control loop matching. Adjust signal amplitude range to adapt to internal regulator circuit. Provide impedance matching between main control board and external signal source. Filter high frequency interference of analog signal. Assist in stabilizing closed-loop operation under variable load. Transmit processed signal to main control regulator card.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51385 board on designated bracket and secure fasteners. Connect terminal wiring of analog input and output. Separate low voltage signal wiring from high-current power bus. Power on system,calibrate signal compression range. Verify signal stability under no-load and loaded condition.

InterfaceTerminal block connector,raw analog signal input,compressed signal output,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51385,signal compression and matching PCB for DC drive. Analog signal amplitude compression and impedance matching circuit. Built-in noise suppression filter for industrial field interference. Passive and active signal adjustment circuit. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticDrive loop unstable:signal compression parameter misadjustment; Distorted feedback signal:internal component aging; No signal transmission:input wiring break or board power abnormal; Signal amplitude drift:thermal drift of analog components; Intermittent speed fluctuation:poor shield grounding.

Product BriefRELIANCE 0-51385 is network compression drive board. It performs analog signal compression,impedance matching and noise filtering for Reliance legacy DC drive closed-loop control,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
