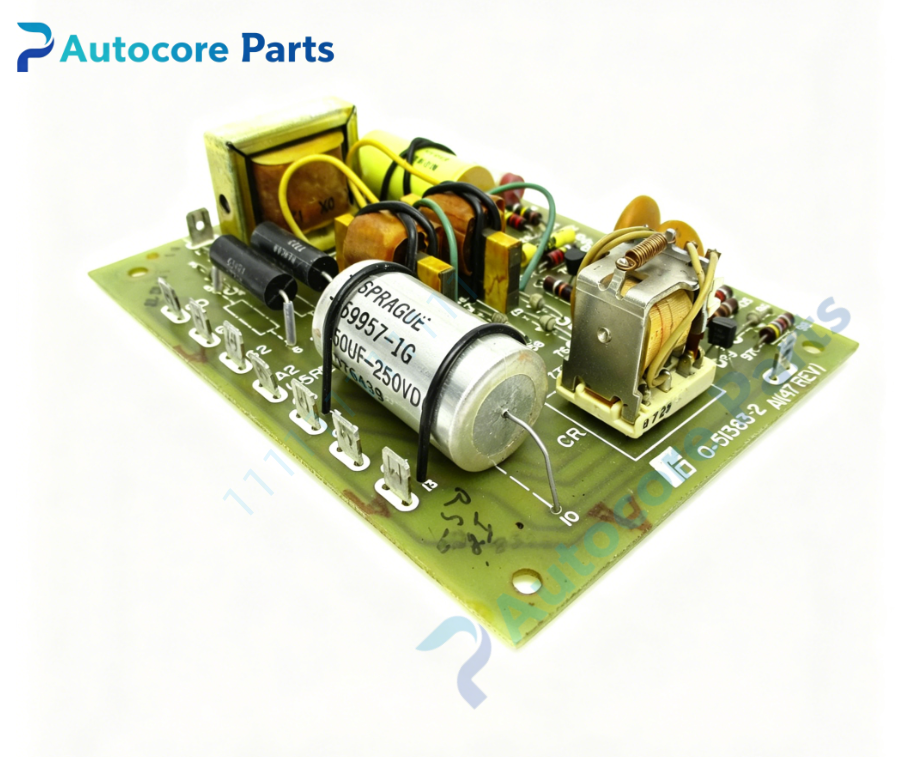

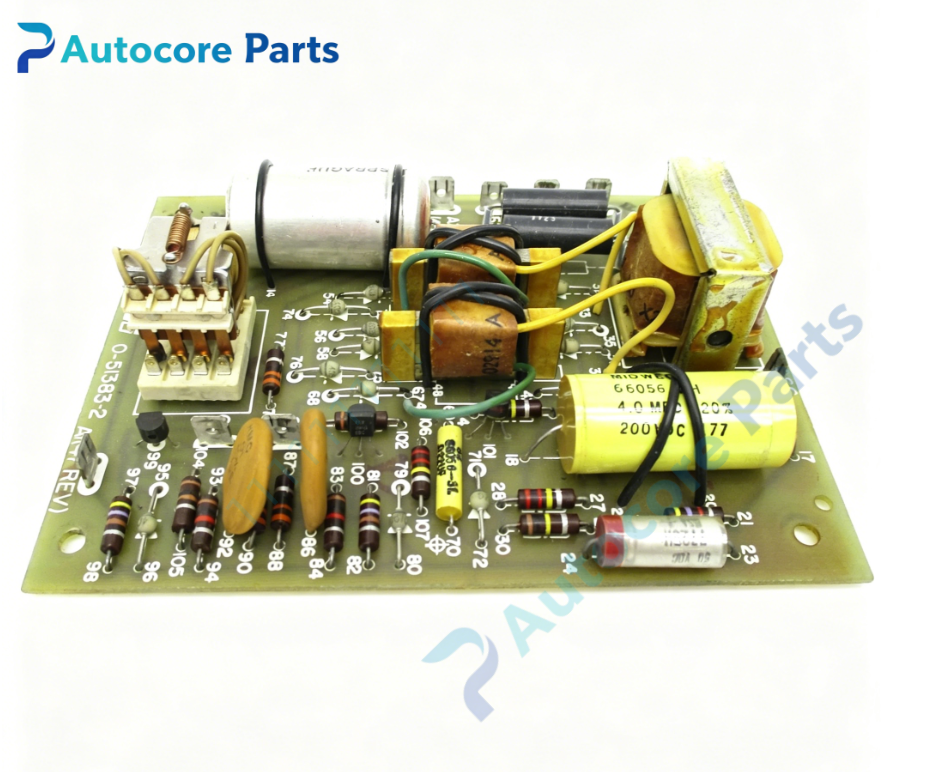

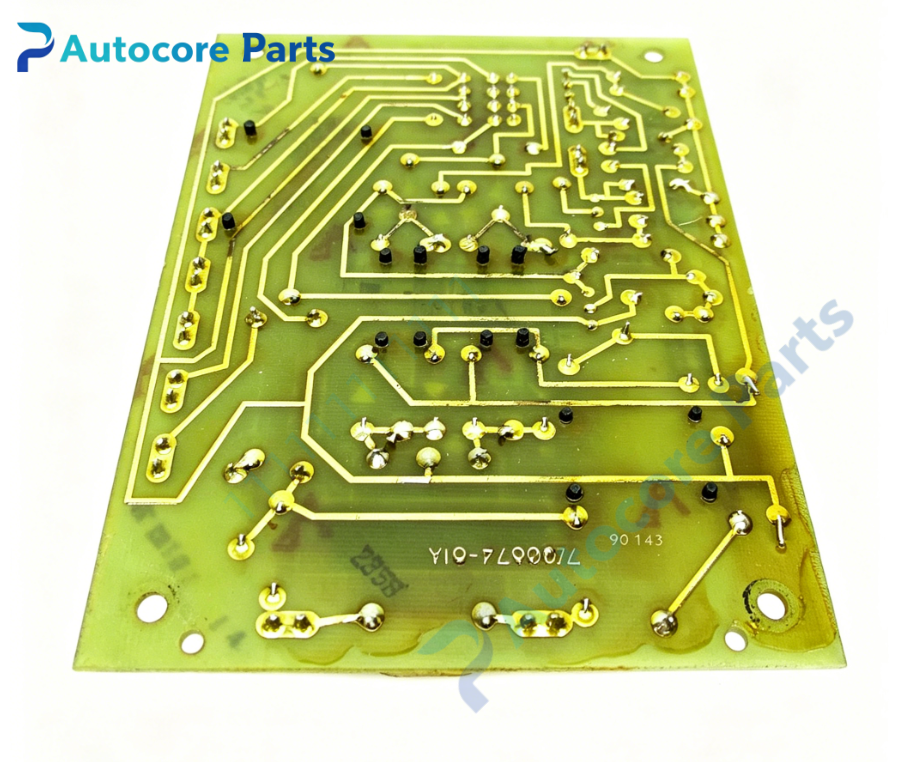

RELIANCE 0-51383-2 Controller Board

Technical SpecificationsModel:0-51383-2 Brand:RELIANCE Product type:Controller Board Weight:0.27kg Dimension:152mm102mm25mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51383-2 belongs to RELIANCE DC drive auxiliary controller board. Installed inside Reliance variable speed DC drive cabinet,cooperates with main control board and pulse trigger assembly. It undertakes auxiliary signal conditioning and auxiliary loop regulation for DC drive system. Commonly used for old industrial DC drive equipment maintenance and spare replacement.

Function0-51383-2 is dedicated auxiliary control PCB for RELIANCE DC drive system. Process auxiliary analog and logic signals for drive control loop. Assist main board to complete signal conversion and filtering. Provide auxiliary limit and auxiliary fault detection function. Transmit processed signal to main controller board. Stabilize weak control signal in harsh industrial environment. Support interlock auxiliary logic for drive enable and protection.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51383-2 board in designated mounting position and lock fasteners. Connect signal terminals and wiring harness. Separate low voltage signal wiring from high-current power bus. Power on system,check signal input and output status. Verify auxiliary protection and signal transmission function.

InterfaceTerminal block connector,analog signal input,processed signal output,auxiliary logic input/output,status LED indicators.

FeatureRELIANCE 0-51383-2 compact auxiliary controller board. Small-size PCB for local signal conditioning. Onboard passive and active filter circuit for noise suppression. Auxiliary limit and fault signal detection circuit. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticAbnormal auxiliary control signal:internal component aging or wiring loose; Auxiliary protection false trigger:signal interference without filtering; No signal output:board power supply abnormal; Intermittent signal fluctuation:capacitor drift; Drive auxiliary interlock invalid:logic channel damage.

Product BriefRELIANCE 0-51383-2 is DC drive auxiliary controller board. It completes auxiliary signal filtering,conditioning and auxiliary limit detection to cooperate with main control board of Reliance DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
