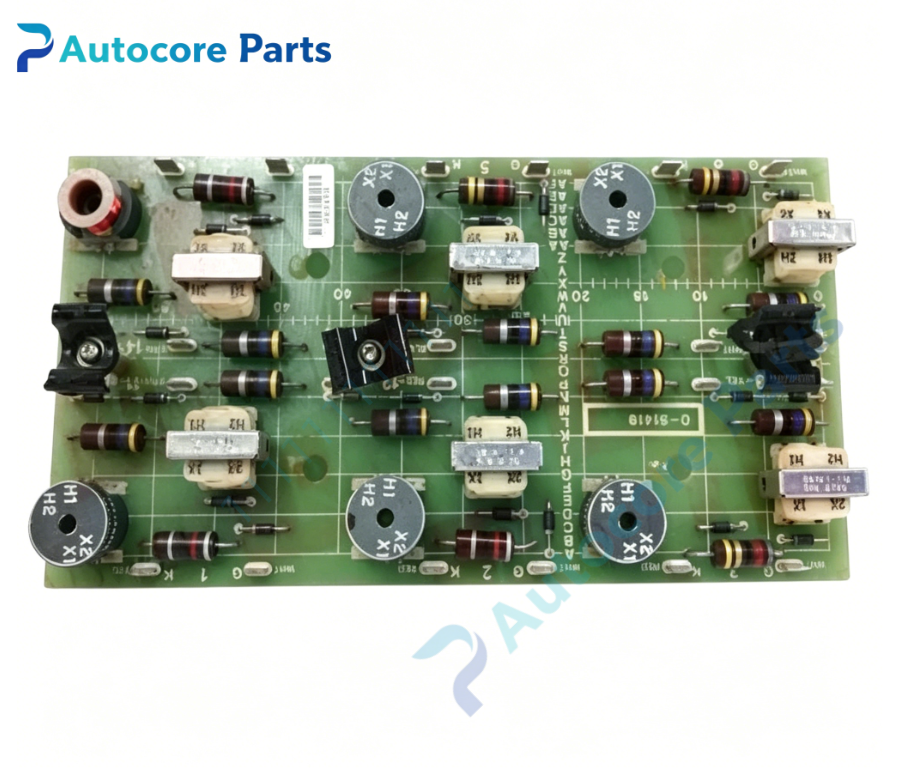

RELIANCE 0-51419 Gate Coupling Board

Technical SpecificationsModel:0-51419 Brand:RELIANCE Product type:Gate Coupling Board Weight:0.61kg Dimension:210mm145mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51419 belongs to RELIANCE gate coupling board. It is installed on the SCR rectifier stack of Reliance legacy DC drive,matched with pulse amplifier board and thyristor assembly. It provides high voltage isolation and pulse impedance matching for SCR gate trigger signals. Widely used for maintenance and spare replacement of old industrial DC drive equipment.

Function0-51419 is dedicated SCR gate coupling PCB for RELIANCE DC drive system. Receive amplified trigger pulse signals from pulse amplifier board. Realize galvanic isolation between low voltage control circuit and high voltage power side. Complete impedance matching for thyristor gate drive pulse. Distribute trigger pulses to each SCR gate terminal. Suppress high voltage surge and reverse voltage to protect the front-end trigger circuit. Filter electromagnetic interference generated by rectifier commutation.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51419 board to the designated position of SCR stack and lock fasteners. Connect pulse input harness and SCR gate output wiring. Separate pulse signal wiring from high-current bus bar. Power on system,check pulse waveform and insulation condition. Verify thyristor firing consistency under no-load and loaded test.

InterfacePulse signal input,SCR gate coupling output,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51419,rectifier stack mounted gate coupling board. High voltage isolation design separates control circuit and power circuit. Multi-channel pulse distribution for thyristor group. Built-in surge absorption and reverse voltage protection components. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticThyristor phase missing firing:coupling channel attenuation or loose wiring; Phase current imbalance:inconsistent pulse amplitude of each channel; Front control board breakdown:isolation circuit damaged by power surge; No pulse to SCR:input cable broken or channel failure; Intermittent commutation fault:aging of internal electronic components.

Product BriefRELIANCE 0-51419 is gate coupling board. It provides high voltage isolation and pulse impedance matching between trigger control circuit and SCR rectifier stack for Reliance legacy DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
