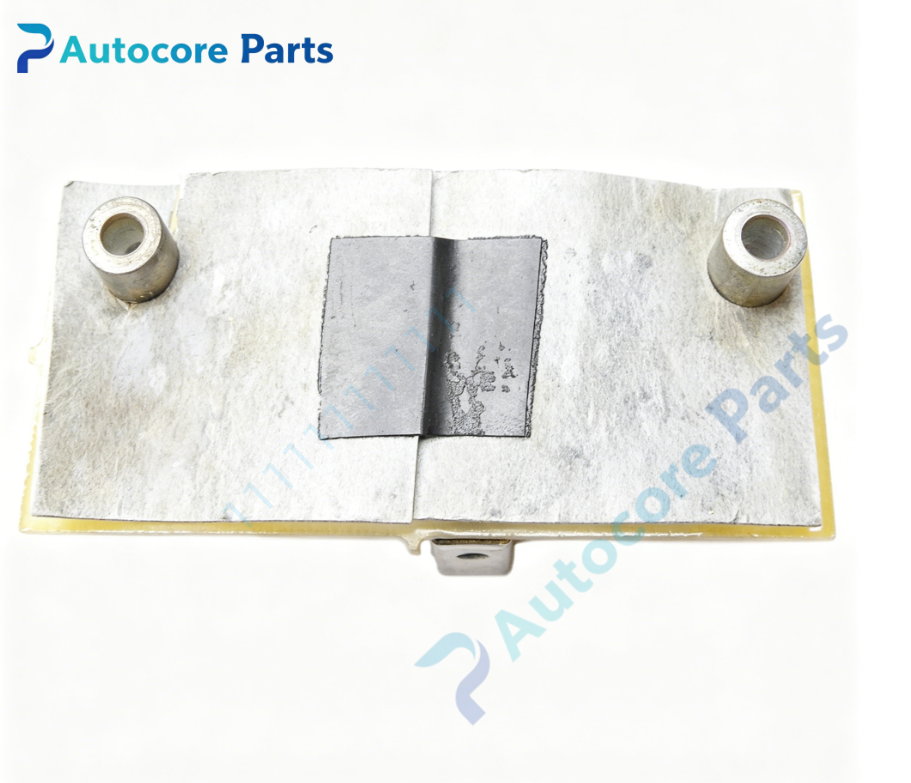

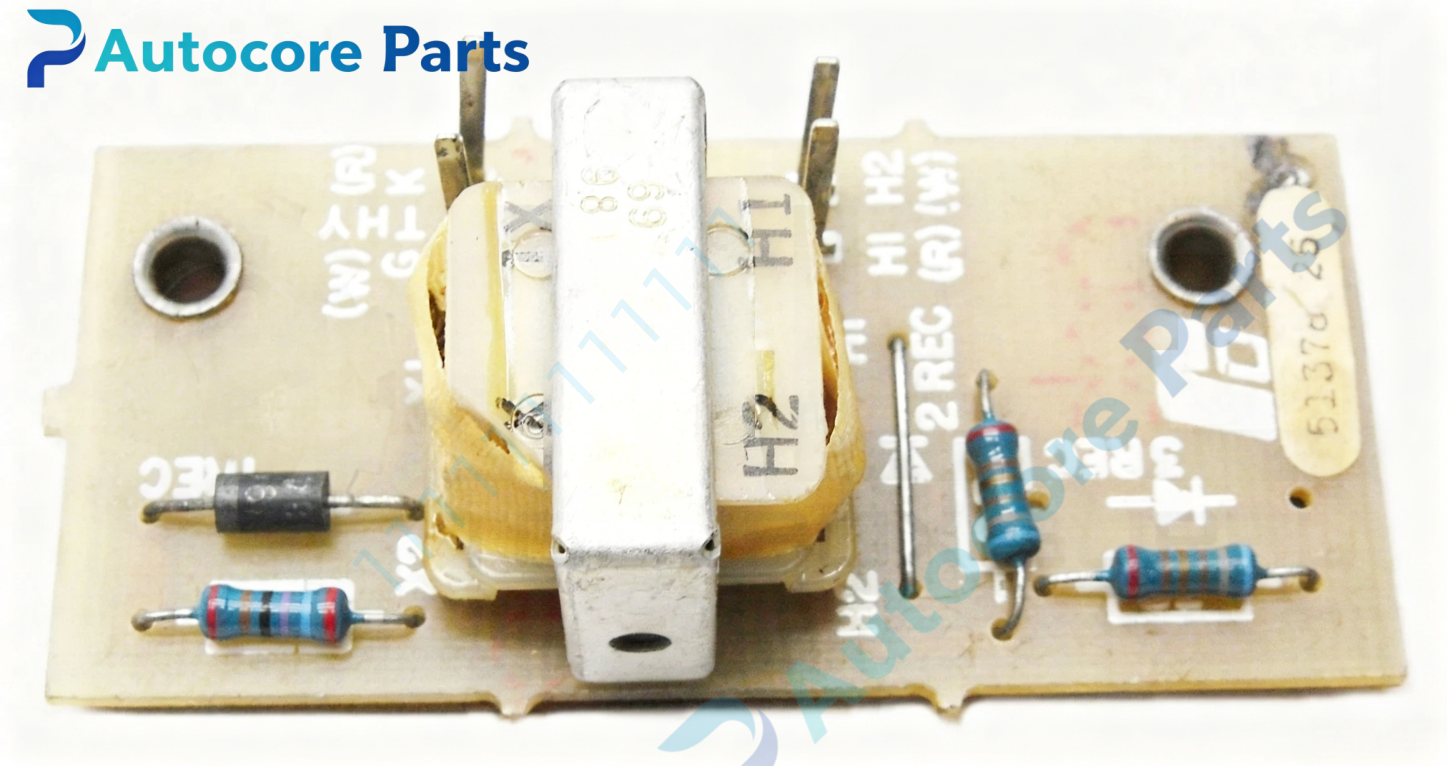

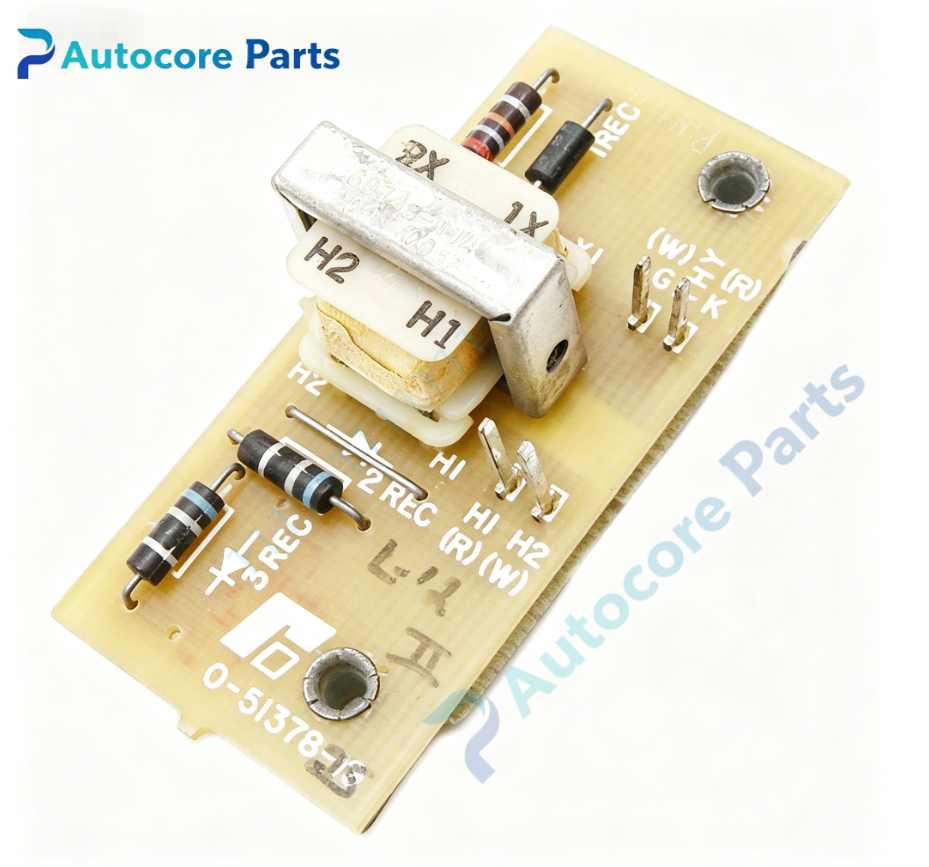

RELIANCE 0-51378-25 Gate Coupling Board

Technical SpecificationsModel:0-51378-25 Brand:RELIANCE Product type:Gate Coupling Board Weight:0.24kg Dimension:140mm80mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51378-25 belongs to RELIANCE Maxpak series gate coupling board. Mounted directly on top of thyristor rectifier stack such as 86466-58R. It performs pulse isolation and impedance matching for SCR gate trigger signals of Maxpak DC drive system. Commonly used for old industrial DC drive equipment maintenance and spare replacement.

Function0-51378-25 is dedicated SCR gate coupling board for RELIANCE Maxpak DC drive rectifier unit. Receive trigger pulse signal from drive control board. Provide high voltage galvanic isolation between low voltage control circuit and high power thyristor section. Match impedance for SCR gate drive pulse. Distribute pulse signal to each thyristor gate terminal. Suppress high voltage surge and reverse voltage to protect trigger circuit. Filter noise interference from power rectifier stack.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51378-25 board on the top of SCR rectifier stack,secure with fixing fasteners. Connect pulse input wiring and SCR gate output wiring. Separate pulse signal wiring from high-current bus bar. Power on system,check pulse waveform and isolation condition. Verify thyristor firing consistency under no-load and loaded test.

InterfacePulse signal input,SCR gate coupling output,shield grounding terminal,hardware passive coupling circuit.

FeatureRELIANCE 0-51378-25,rectifier stack mounted gate coupling board. Compact PCB design for direct installation on thyristor assembly. High voltage isolation between control side and power side. Impedance matching for SCR gate trigger pulse. Surge and reverse voltage protection components on board. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Maxpak DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticThyristor phase missing firing:coupling channel attenuation or loose wiring; Phase current imbalance:pulse amplitude inconsistent among channels; Control circuit damaged:isolation circuit breakdown caused by power surge; No pulse delivered to SCR:input signal wire break; Intermittent commutation fault:aging of internal resistance and capacitance components.

Product BriefRELIANCE 0-51378-25 is Maxpak gate coupling board. It provides high voltage isolation and pulse impedance matching between trigger control circuit and SCR rectifier stack for Reliance Maxpak DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
