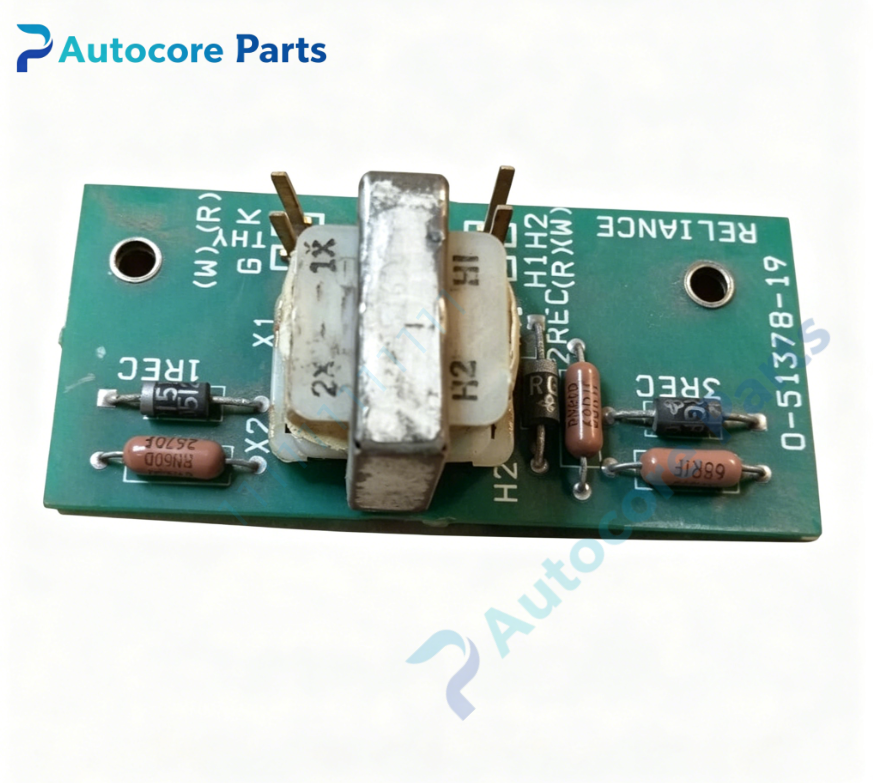

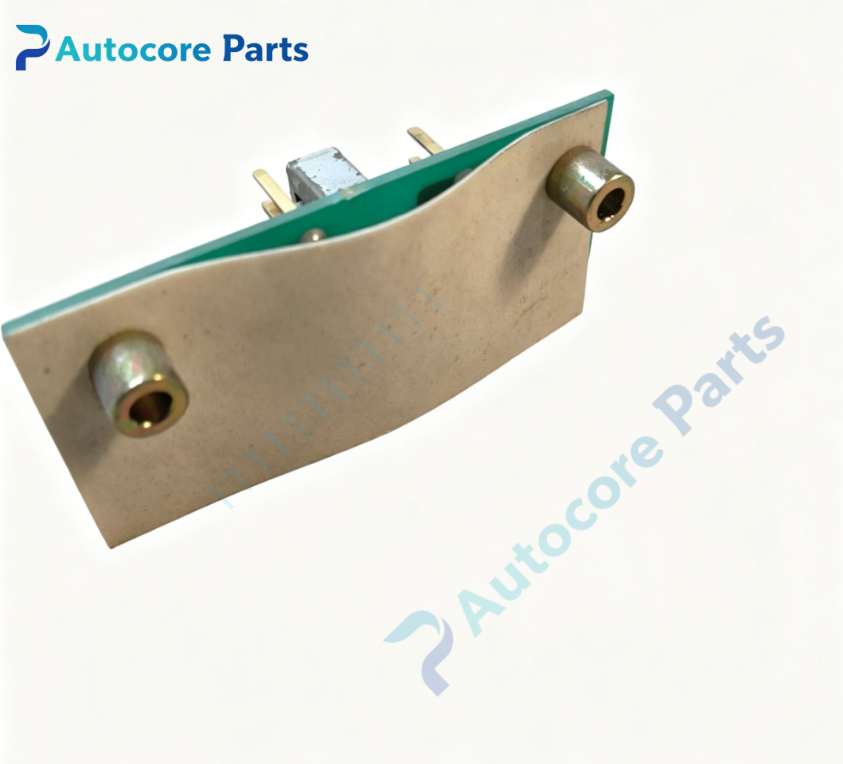

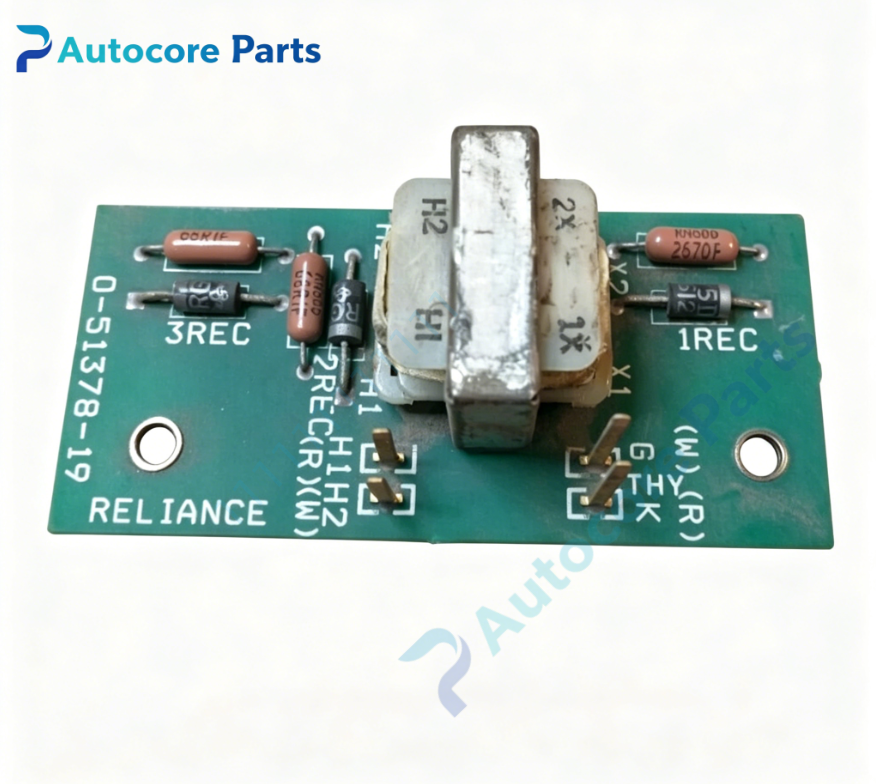

RELIANCE 0-51378-19 Gate Coupling Board

Technical SpecificationsModel:0-51378-19 Brand:RELIANCE Product type:Gate Coupling Board Weight:0.75kg Dimension:231mm161mm28mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51378-19 belongs to RELIANCE CardPak series gate coupling board. Installed into CardPak rack,works with pulse amplifier card and SCR thyristor stack. It provides high voltage isolation and pulse impedance matching for SCR gate trigger pulses of CardPak DC drive system. Commonly used for old industrial DC drive equipment maintenance and spare replacement.

Function0-51378-19 is dedicated SCR gate coupling board for RELIANCE CardPak DC drive system. Receive amplified trigger pulse signal from pulse amplifier card. Realize electrical isolation and impedance matching for thyristor gate signal. Distribute coupling pulse to each SCR gate terminal. Suppress high voltage interference from power section to control circuit. Prevent reverse voltage damage to trigger circuit. Monitor gate pulse status and report abnormal pulse condition.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51378-19 board into designated CardPak slot and lock retaining latch. Connect backplane bus connector and pulse output wiring. Separate gate pulse wiring from high power main bus cable. Power on system,check pulse waveform and isolation performance. Verify SCR firing consistency under no-load and load operation.

InterfaceBackplane bus connector,pulse signal input,SCR gate coupling output,shield terminal,status LED indicators.

FeatureRELIANCE 0-51378-19,CardPak rack mount gate coupling board. High voltage isolation between control circuit and thyristor power side. Impedance matching for SCR gate drive pulse. Multi-channel pulse distribution for rectifier stack. Surge and reverse voltage protection for trigger loop. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old CardPak DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticThyristor phase missing firing:gate coupling channel attenuation or wiring loose; Phase current imbalance:inconsistent coupling pulse amplitude; Control board damaged by high voltage:isolation circuit breakdown; No pulse transmission:input pulse circuit failure; Intermittent firing fault:backplane connector poor contact.

Product BriefRELIANCE 0-51378-19 is CardPak gate coupling board. It provides high voltage isolation and pulse impedance matching between pulse amplifier and SCR thyristor stack for Reliance CardPak DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
