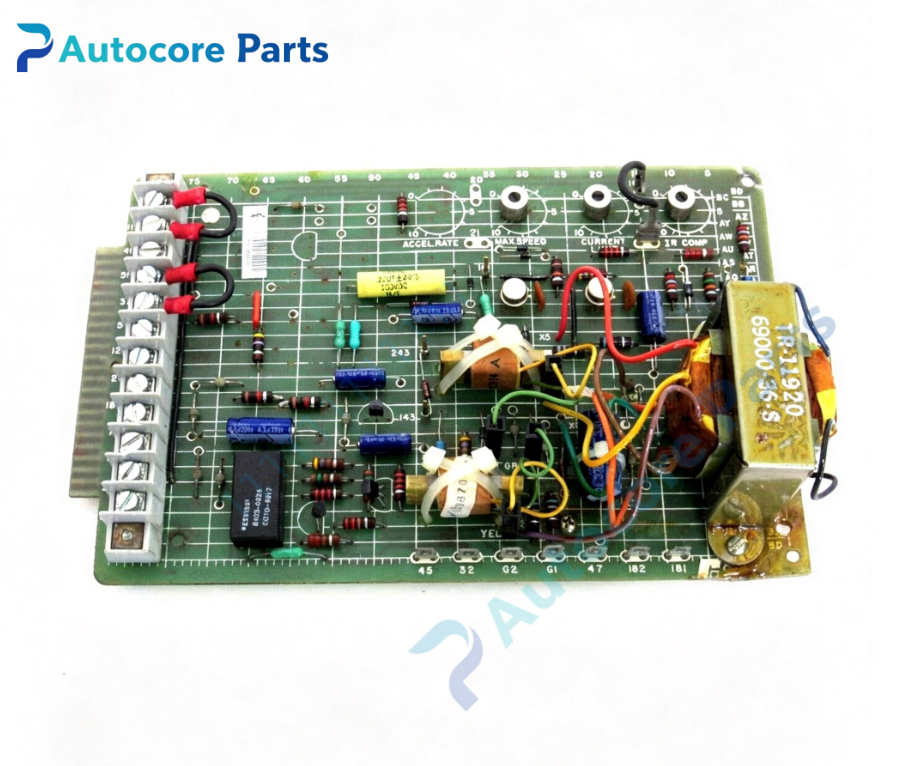

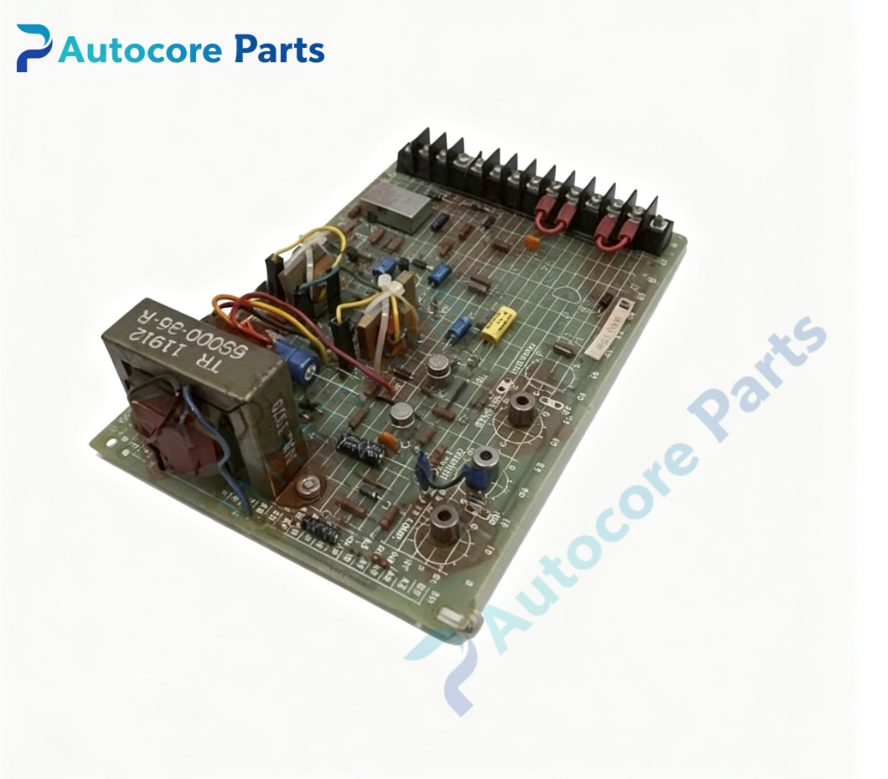

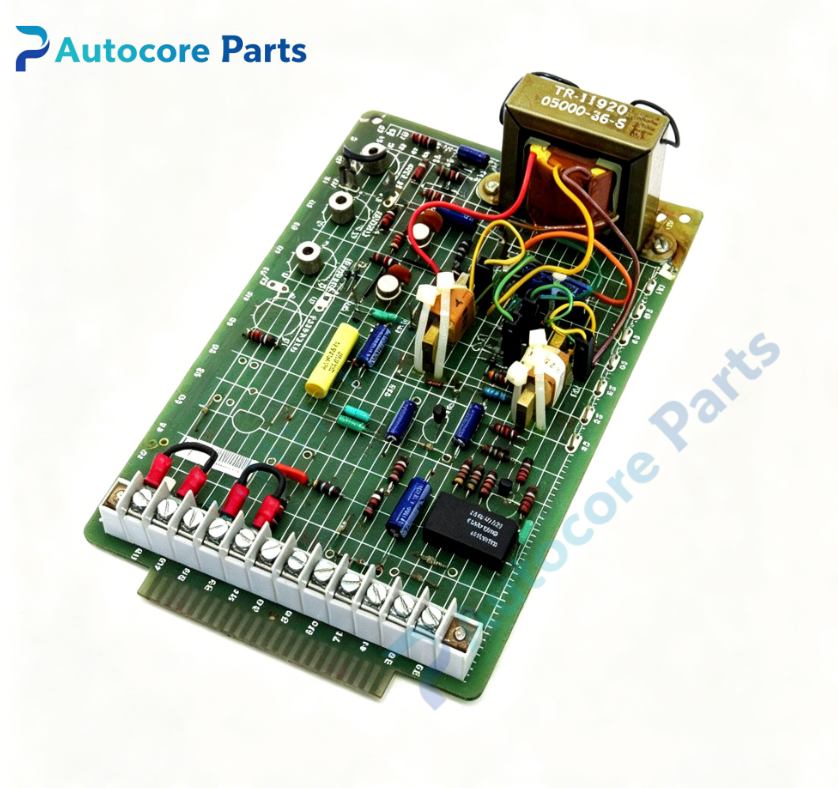

RELIANCE 0-51381-11 Drive Controller Board

Technical SpecificationsModel:0-51381-11 Brand:RELIANCE Product type:Drive Controller Board Weight:0.77kg Dimension:231mm161mm28mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51381-11 belongs to RELIANCE Minpak series main drive controller board. Installed inside Minpak DC variable speed drive cabinet,cooperates with pulse trigger board and power rectifier stack. It undertakes the core closed-loop control of Minpak DC drive system. Commonly used for old industrial DC drive equipment maintenance and spare replacement.

Function0-51381-11 is dedicated main control board for RELIANCE Minpak DC drive system. Receive external speed reference command and speed feedback signal. Complete speed PI closed-loop operation and current loop regulation. Output firing angle control signal to pulse trigger circuit. Integrate fault detection logic including overcurrent,overspeed and power abnormality. Provide run/stop logic interlock and fault latch function. Realize speed ramp control and current limiting protection.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51381-11 board into designated slot and lock retaining fasteners. Connect backplane connector and field signal wiring. Separate low voltage control wiring from high-current power bus. Power on system,calibrate speed loop gain and current limit parameter. Test start,stop and variable load operating performance.

InterfaceBackplane bus connector,speed reference input,tachometer feedback input,trigger command output,fault status output,adjustment potentiometer,status LED indicators.

FeatureRELIANCE 0-51381-11,plug-in main control board for Minpak DC drive. Integrated analog closed-loop control circuit for speed and current double loop. Built-in multi-condition fault detection and latch protection. Onboard potentiometers for loop parameter tuning. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Minpak DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticMotor speed out of control:feedback signal loss or loop parameter mis-tuning; Drive cannot start:enable interlock fault or reference signal missing; Frequent overcurrent alarm:current limit setting improper; No trigger command output:internal control circuit damage; Intermittent shutdown:backplane connector poor contact.

Product BriefRELIANCE 0-51381-11 is Minpak drive controller board. It implements double closed-loop speed and current control,trigger command calculation and fault protection for Reliance Minpak DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
