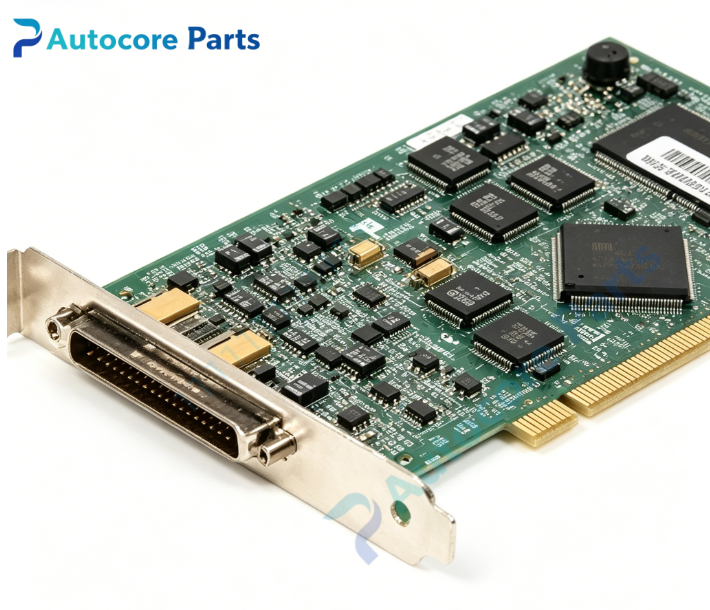

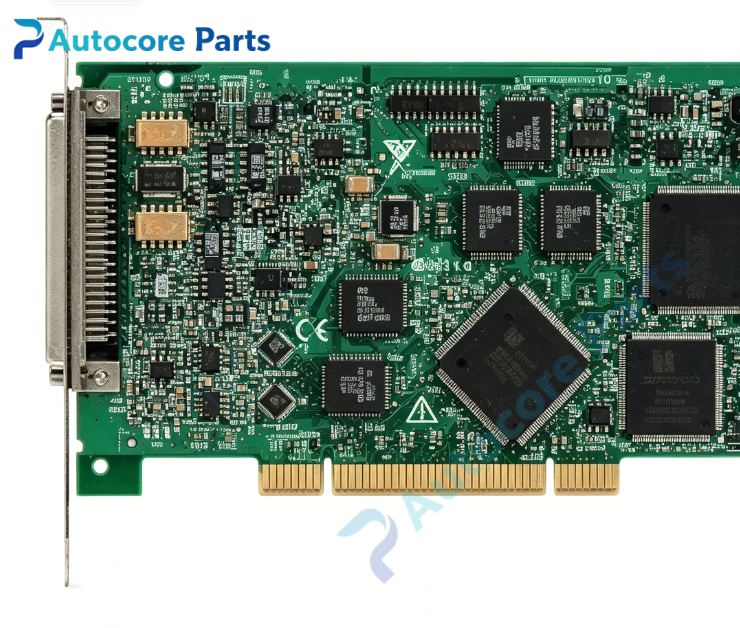

NI PCI-6014 PCI Bus Multifunction DAQ Data Acquisition Board

Technical Specifications

Model:PCI-6014

Brand:NI

Part No:188626-01

Product type:PCI Bus Multifunction DAQ(Data Acquisition) Board

ADC:16-bit resolution

Analog Input:16 single-ended /8 differential channels

Max sampling rate:200kS/s

Analog Output:2 channels,16-bit

Digital I/O:8 bidirectional DIO lines,TTL level

Counter/Timer:2×24-bit counter timers

Connector:68-pin SCSI

Function:voltage measurement,analog output,PFI timing trigger,digital read/write,digital triggering,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.22kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6014 belongs to NI multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx and Traditional NI-DAQ legacy driver and LabVIEW,widely used for laboratory automation,research,product verification and manufacturing test measurement.It is spare part for legacy test equipment overhaul.

Function

PCI-6014 is multi-function PCI DAQ board integrating analog input,analog output,digital I/O and counter functions.16-bit high resolution collects analog voltage signals,2 AO channels generate analog control signals.PFI lines support timing and triggering,suited for general industrial and laboratory data acquisition applications.

Installation

Insert PCI-6014 into computer PCI slot and fasten bracket.Connect signal wiring to 68pin SCSI terminal block.Install NI-DAQmx driver.Take ESD protection before installation.

Interface

‑68-pin SCSI multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6014 classic NI multifunction DAQ board.Typical faults:SCSI connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,no AO output,digital channel failure,counting error.Check sensor wiring,PCI slot contact,NI-DAQmx driver and channel configuration.

Product Brief

PCI-6014 is NI PCI bus multifunction DAQ board with 16-bit,200kS/s sampling rate,16AI,2AO and 8 DIO,for general voltage acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
