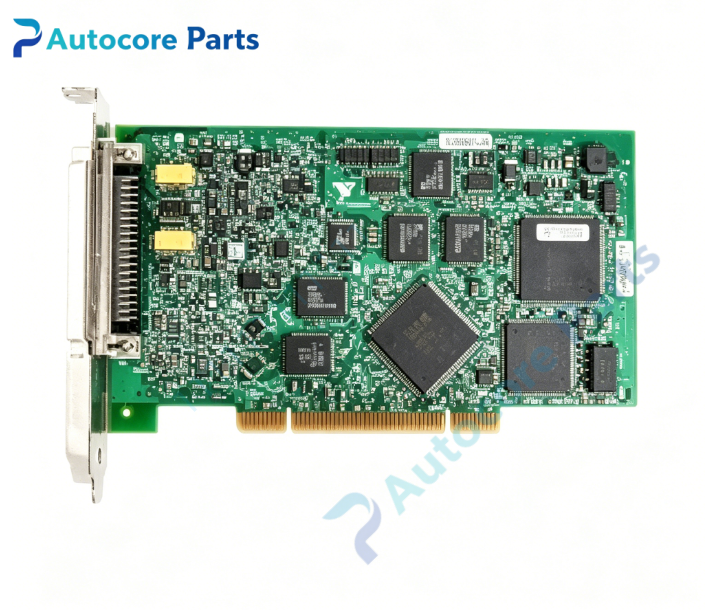

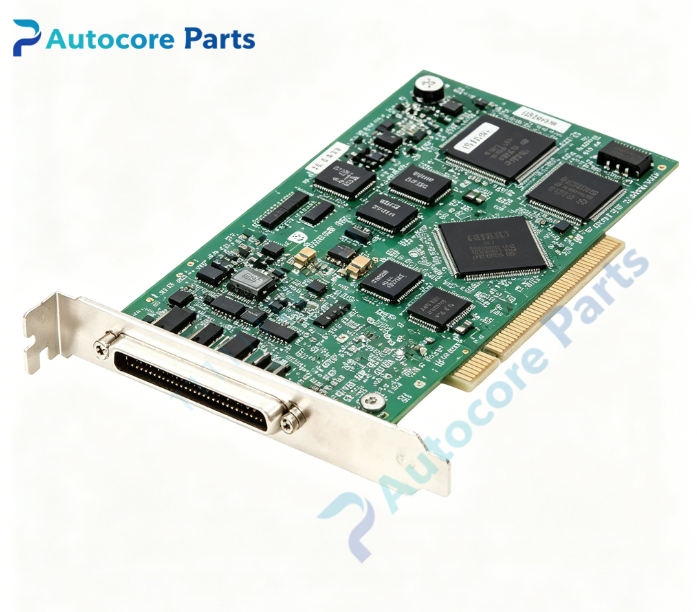

NI PCI-6013 PCI Bus Multifunction DAQ Data Acquisition Board

Technical Specifications

Model:PCI-6013

Brand:NI

Part No:778629-01

Product type:PCI Bus Multifunction DAQ(Data Acquisition) Board

ADC:16-bit resolution

Analog Input:16 single-ended /8 differential channels

Max sampling rate:200kS/s

Analog Output:None

Digital I/O:8 bidirectional DIO lines,TTL level

Counter/Timer:2×24-bit counter timers

Connector:37-pin D-SUB

Function:voltage measurement,PFI timing trigger,digital read/write,digital triggering,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.21kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-6013 belongs to NI multifunction DAQ platform.It works with standard PCI industrial PC,supported by NI-DAQmx and Traditional NI-DAQ legacy driver and LabVIEW,widely used for laboratory automation,research,product verification and manufacturing test measurement.It is spare part for legacy test equipment overhaul.

Function

PCI-6013 is low-cost multi-function PCI DAQ board without analog output.It integrates analog input,digital I/O and counter functions.16-bit high resolution collects analog voltage signals.PFI lines support timing and triggering,suited for general industrial and laboratory analog data acquisition applications.

Installation

Insert PCI-6013 into computer PCI slot and fasten bracket.Connect signal wiring to 37pin D-SUB terminal block.Install NI-DAQmx driver.Take ESD protection before installation.

Interface

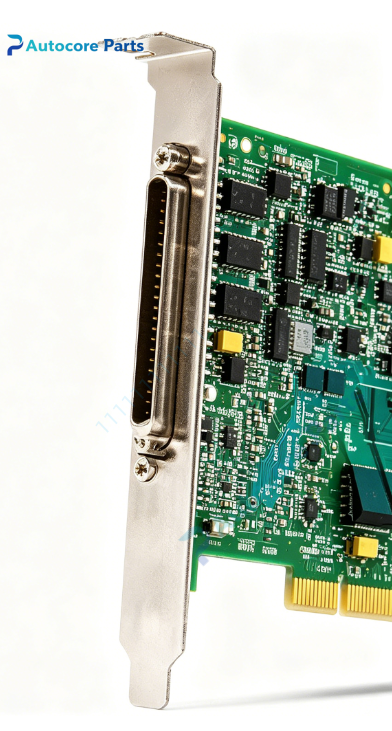

‑37-pin D-SUB multi-function I/O connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-6013 classic NI multifunction DAQ board without AO.Typical faults:D-SUB connector pin oxidation,ADC reading drift,counter timing error.Inspect analog input and digital channel before replacement.

Diagnostic

Fault phenomenon:abnormal AI reading,digital channel failure,counting error.Check sensor wiring,PCI slot contact,NI-DAQmx driver and channel configuration.

Product Brief

PCI-6013 is NI PCI bus multifunction DAQ board with 16-bit,200kS/s sampling rate,16AI and 8 DIO,for general voltage acquisition,automated measurement and legacy test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
