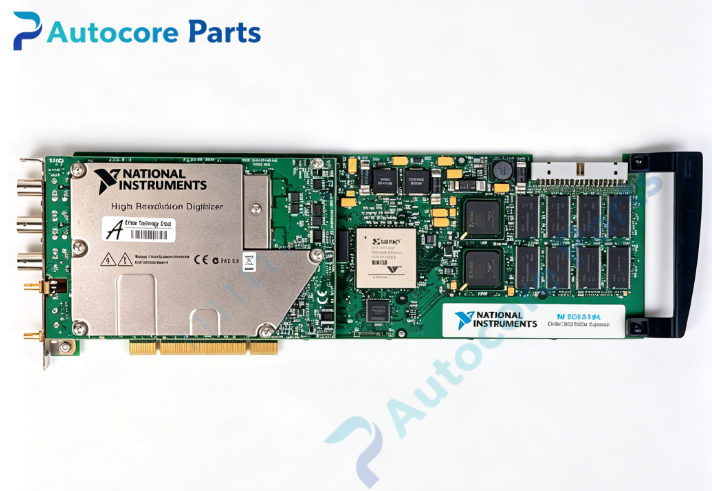

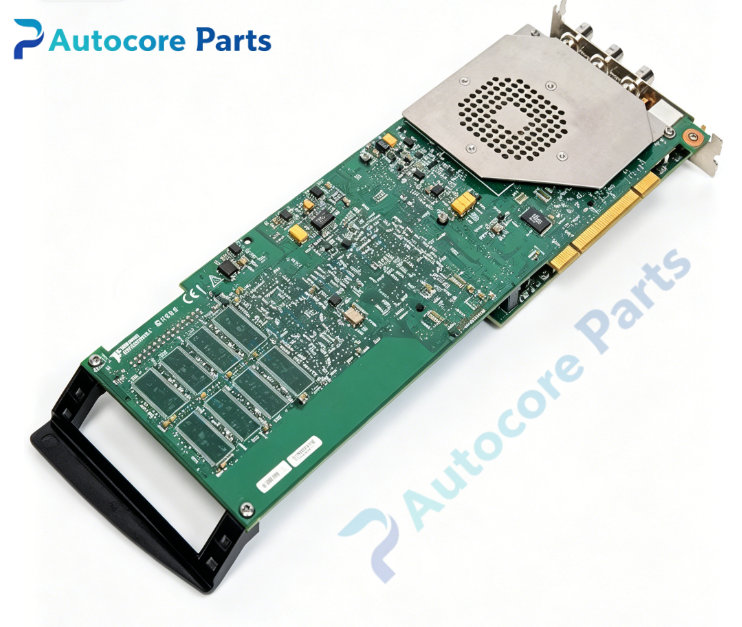

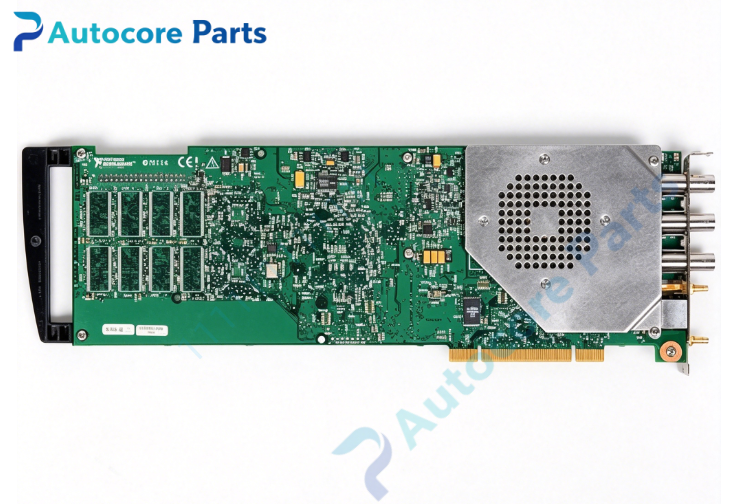

NI PCI-5124 PCI Bus 2-Channel High Resolution Digitizer Board

Technical Specifications

Model:PCI-5124

Brand:NI

Part No:779171-01

Product type:PCI Bus High Speed Digitizer(Oscilloscope) Board

Resolution:12-bit

Analog Input:2 simultaneous sampling channels

Real-time sampling rate:200MS/s,equivalent time sampling up to 4GS/s

Analog bandwidth:150MHz

Input impedance:software selectable 50Ω or 1MΩ

Input voltage range:200mVpp ~ 20Vpp,AC/DC coupling

Onboard memory:8MB/32MB/256MB per channel

Function:edge/window/hysteresis/video trigger,PFI digital I/O,clock in/out,multi-board synchronization

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.23kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-5124 belongs to NI high-speed digitizer platform.It works with standard PCI industrial PC,supported by NI-SCOPE driver and LabVIEW,widely used for transient waveform capture,time and frequency domain analysis,electronic component test in legacy automated test systems.It is spare part for legacy test equipment overhaul.

Function

PCI-5124 is high-resolution 2-channel PCI digitizer board,PC-based oscilloscope shturl.cc supports 200MS/s real-time sampling and 4GS/s equivalent sampling for repetitive signals.Selectable input impedance and AC/DC coupling adapt to different signal sources.Deep onboard memory enables long waveform record.Various trigger modes and clock synchronization support multi-instrument ATE systems.

Installation

Insert PCI-5124 into computer PCI slot and fasten bracket.Connect signal probes to BNC connectors.Install NI-SCOPE instrument driver.Take ESD protection before installation.

Interface

‑2×BNC analog input connectors

‑1×BNC external trigger connector

‑2×SMB clock in/out connectors

‑9-pin mini DIN AUX I/O port

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-5124 classic NI high resolution PCI digitizer board.Typical faults:BNC connector oxidation,input front-end damage,onboard memory failure.Inspect input channel and waveform capture before replacement.

Diagnostic

Fault phenomenon:no waveform,signal distortion,trigger unstable,memory read error.Check BNC probe/cable,PCI slot contact,NI-SCOPE driver,impedance and trigger configuration.

Product Brief

PCI-5124 is NI PCI bus 12-bit 2-channel digitizer board with 200MS/s sampling and 150MHz bandwidth,selectable input impedance and deep memory,for waveform acquisition,frequency analysis and legacy ATE equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
