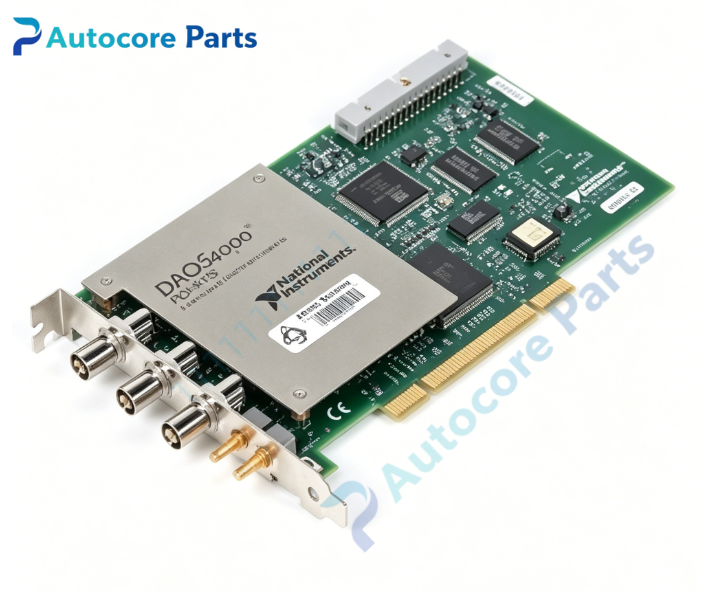

NI PCI-5102 PCI Bus 2-Channel High Speed Digitizer Board

Technical Specifications

Model:PCI-5102

Brand:NI

Part No:777304-01

Product type:PCI Bus High Speed Digitizer(DAQScope) Board

Resolution:8-bit

Analog Input:2 channels

Real-time sampling rate:20MS/s,effective up to 1GS/s with RIS

Analog bandwidth:15MHz

Input voltage range:±50mV ~ ±5V,software selectable AC/DC coupling

Function:edge/hysteresis trigger,PFI digital timing,multi triggering modes,onboard acquisition memory

Input impedance:1MΩ

Bus:32-bit PCI

Dimension:174mm106.7mm20mm

Weight:0.21kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-5102 belongs to NI high-speed digitizer platform.It works with standard PCI industrial PC,supported by NI-SCOPE legacy driver and LabVIEW,widely used for transient waveform capture,power ripple test and general electronic signal measurement in legacy automated test systems.It is spare part for legacy test equipment overhaul.

Function

PCI-5102 is DAQScope 2-channel digitizer,equivalent to PC-based oscilloscope.It supports 20MS/s real-time sampling and RIS interleaved sampling up to 1GS/s for fast transient signals.Software configurable AC/DC coupling and multiple trigger modes capture various waveform signals,PFI ports provide external clock and trigger synchronization for multi-instrument test system.

Installation

Insert PCI-5102 into computer PCI slot and fasten bracket.Connect signal probes to BNC connectors.Install NI-SCOPE instrument driver.Take ESD protection before installation.

Interface

‑2×BNC analog input connectors

‑1×BNC external trigger connector

‑2×SMB PFI digital timing connectors

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-5102 classic NI legacy PCI digitizer board.Typical faults:BNC connector oxidation,input front-end circuit damage,sampling memory failure.Inspect input channel and waveform capture before replacement.

Diagnostic

Fault phenomenon:no waveform display,signal distortion,trigger unstable.Check BNC probe/cable,PCI slot contact,NI-SCOPE driver and trigger level configuration.

Product Brief

PCI-5102 is NI PCI bus 8-bit 2-channel digitizer board with 20MS/s real-time sampling and 15MHz bandwidth,for transient waveform acquisition,electronic component testing and legacy ATE equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
