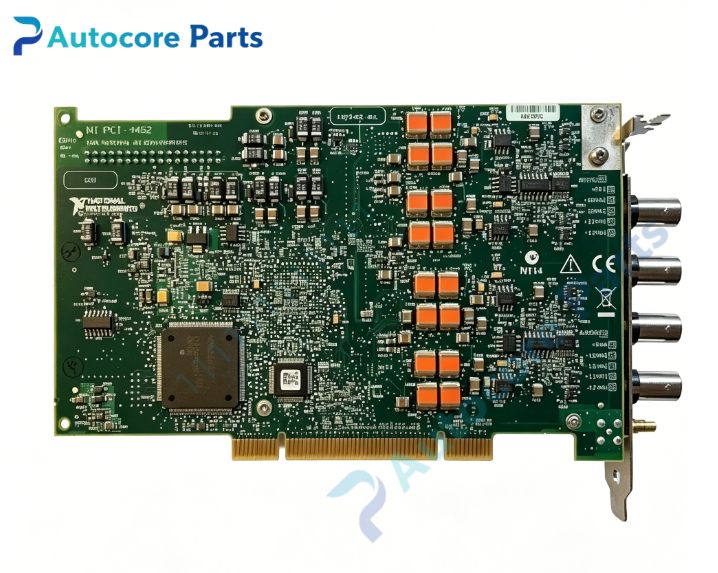

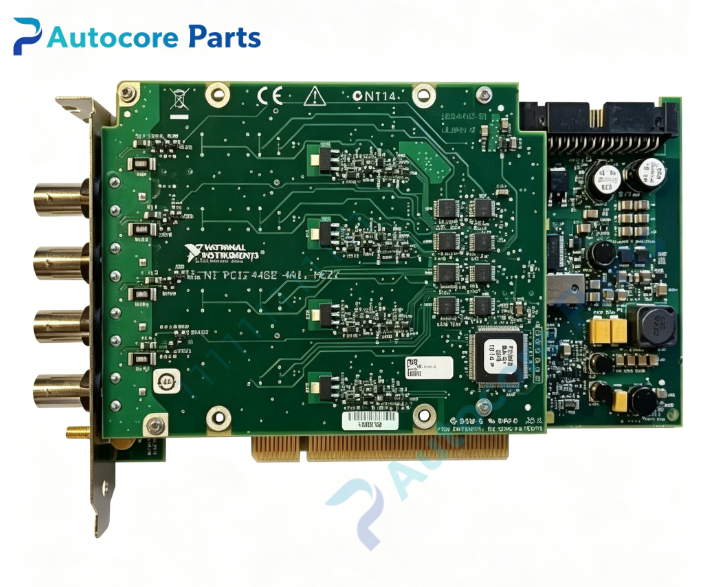

NI PCI-4462 PCI Bus Dynamic Signal Acquisition DSA Board

Technical Specifications

Model:PCI-4462

Brand:NI

Part No:779308-01

Product type:PCI Bus Dynamic Signal Acquisition(DSA) Board

ADC:24-bit delta-sigma ADC

Analog Input:4 simultaneous sampling channels

Max sampling rate:204.8kS/s

Dynamic range:118dB

Input range:±42.4V peak,6 selectable gain settings

Function:IEPE sensor excitation,TEDS sensor identification,AC/DC coupling,digital anti-aliasing filter,hardware trigger,multi-board synchronization,overload detection

Overvoltage protection:±42.4V

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.24kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-4462 belongs to NI DSA dynamic signal acquisition platform.It works with standard PCI industrial PC,supported by NI-DAQmx driver and LabVIEW,widely used for multi-channel acoustic test,shock & vibration measurement,NVH analysis and machine condition monitoring in legacy test systems.It is spare part for legacy test equipment overhaul.

Function

PCI-4462 is high-performance 4-input DSA board dedicated to sound and vibration measurement.It supplies IEPE power for accelerometers and microphones,TEDS enables automatic sensor recognition.Four channels sample synchronously for FFT spectrum analysis.Digital anti-aliasing filter eliminates aliasing noise.Multi-card synchronization expands measurement channels for large-scale vibration test systems.

Installation

Insert PCI-4462 into computer PCI slot and fasten bracket.Connect sensors to BNC connectors.Install NI-DAQmx driver.Take ESD protection before installation.

Interface

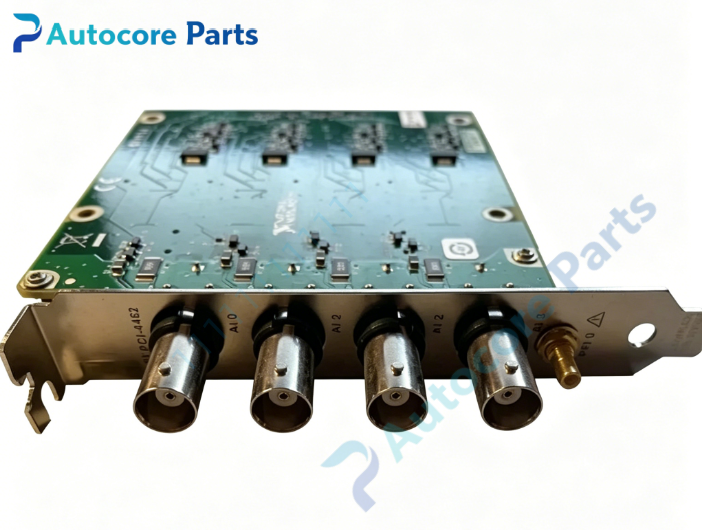

‑4×BNC analog input connectors

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-4462 classic NI 4-channel sound & vibration DSA board.Typical faults:BNC connector oxidation,IEPE excitation circuit damage,ADC measurement drift.Inspect sensor wiring and spectrum test before replacement.

Diagnostic

Fault phenomenon:no signal,high background noise,channel mismatch.Check BNC cable,transducer,PCI slot contact,NI-DAQmx driver and IEPE/TEDS configuration.

Product Brief

PCI-4462 is NI PCI bus 24-bit 4AI DSA board with max 204.8kS/s sampling rate,supporting IEPE and TEDS,for multi-channel acoustic,shock vibration and NVH testing and legacy dynamic test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
