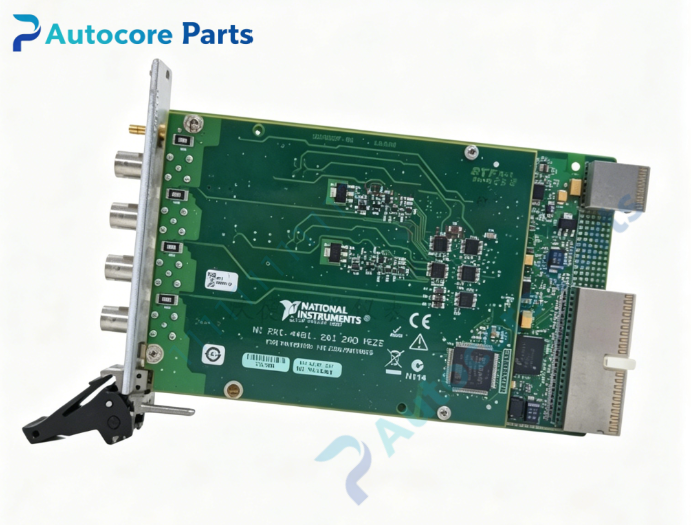

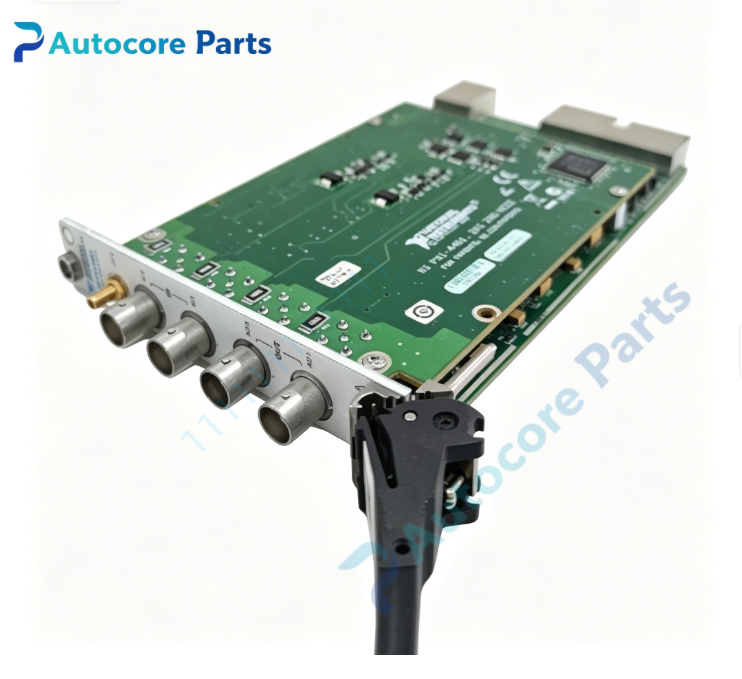

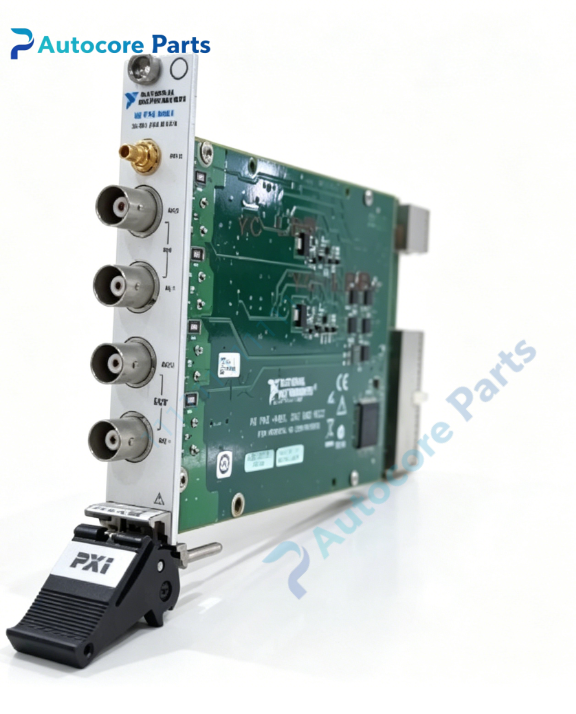

NI PCI-4461 PCI Bus Dynamic Signal Acquisition DSA Board

Technical Specifications

Model:PCI-4461

Brand:NI

Part No:779307-01

Product type:PCI Bus Dynamic Signal Acquisition(DSA) Board

ADC/DAC:24-bit delta-sigma

Analog Input:2 simultaneous sampling channels

Analog Output:2 simultaneous update channels

Max sampling & update rate:204.8kS/s

Dynamic range:118dB

Input range:±42.4V peak,6 selectable gain settings

Function:IEPE sensor excitation,TEDS sensor identification,AC/DC coupling,digital anti-aliasing filter,hardware trigger,multi-board synchronization

Overvoltage protection:±42.4V

Bus:32-bit PCI

Dimension:175mm107mm20mm

Weight:0.24kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-4461 belongs to NI DSA dynamic signal acquisition platform.It works with standard PCI industrial PC,supported by NI-DAQmx driver and LabVIEW,widely used for acoustic test,shock & vibration measurement,stimulus-response test and machine condition monitoring in legacy test systems.It is spare part for legacy test equipment overhaul.

Function

PCI-4461 is high-performance 2AI/2AO DSA board for sound and vibration shturl.cc/ supports IEPE accelerometers and microphones,TEDS auto sensor recognition.2 input and 2 output channels run synchronously for stimulus-response testing.Digital anti-aliasing filter removes aliasing noise.Multi-card synchronization supports large-channel vibration measurement systems.

Installation

Insert PCI-4461 into computer PCI slot and fasten bracket.Connect sensors to BNC connectors.Install NI-DAQmx driver.Take ESD protection before installation.

Interface

‑4×BNC analog I/O connectors

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-4461 classic NI high-end sound & vibration DSA board.Typical faults:BNC connector oxidation,IEPE excitation circuit damage,ADC/DAC measurement drift.Inspect sensor wiring and spectrum test before replacement.

Diagnostic

Fault phenomenon:no signal,high background noise,channel mismatch,output distortion.Check BNC cable,transducer,PCI slot contact,NI-DAQmx driver and IEPE/TEDS configuration.

Product Brief

PCI-4461 is NI PCI bus 24-bit DSA board with 2 synchronized AI and 2 AO,max 204.8kS/s sampling rate,supporting IEPE and TEDS,for acoustic,shock vibration and stimulus-response testing and legacy dynamic test equipment renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
