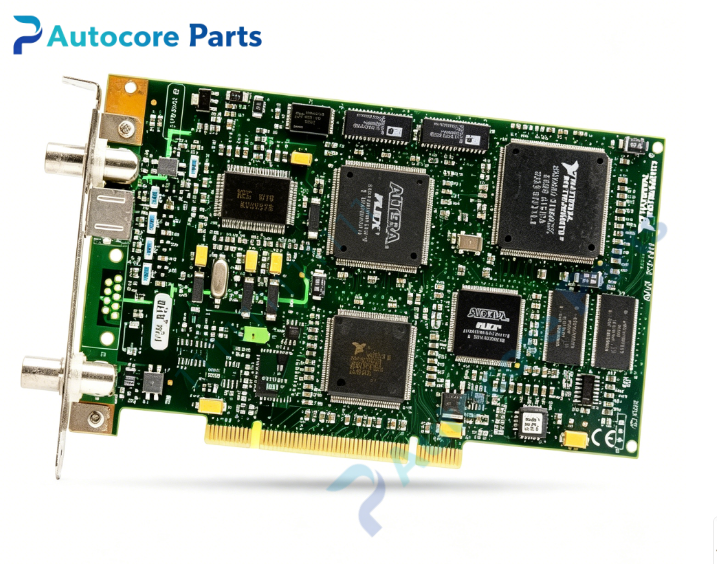

NI PCI-1411 PCI Single-Channel Color Analog Video Frame Grabber Board

Technical Specifications

Model:PCI-1411

Brand:NI

Part No:778841-01

Product type:PCI Bus Single-Channel Color Analog Video Frame Grabber

Pixel Depth:8-bit

Video Input:1 channel composite BNC + S-Video(Y/C),75Ω input impedance

Video standard:NTSC(29.97fps),PAL(25fps),RS-170,CCIR

Onboard memory:16MB SDRAM

Pixel clock:max 13.5MHz

Image processing:ROI capture,image scaling,3×8bit LUT,color space conversion RGB/HSL

Trigger:external TTL hardware trigger

Synchronization:RTSI bus

Bus:PCI

Dimension:175mm107mm20mm

Weight:145g

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

PCI-1411 belongs to NI IMAQ vision hardware platform.It works with standard PCI industrial PC,driven by NI-IMAQ and Vision Acquisition Software,supported by LabVIEW,widely used for color analog camera image capture,color product inspection and pattern matching in legacy machine vision systems.It is spare part for legacy automation equipment overhaul.

Function

PCI-1411 is single channel color analog frame grabber.It supports composite CVBS and S-Video input,hardware video decoder converts analog signal to RGB/HSL digital image.Onboard LUT for brightness,contrast and white balance adjustment.ROI function reduces image data volume,RTSI bus enables synchronous trigger with DAQ and motion hardware.

Installation

Insert PCI-1411 into computer PCI slot and fasten bracket.Connect analog color camera to BNC or S-Video port.Install NI-IMAQ vision driver.Take ESD protection before installation.

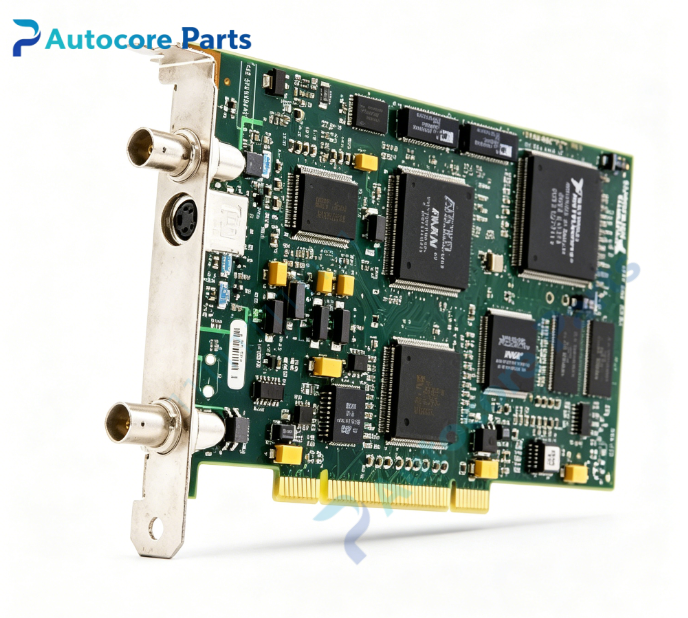

Interface

‑BNC composite video input connector

‑S-Video(Y/C) connector

‑BNC external trigger connector

‑RTSI synchronization bus connector

‑PCI gold finger edge connector

‑Board status indicator

Feature

PCI-1411 classic NI single-channel color analog frame grabber board.Typical faults:BNC/S-Video connector damage,video decoder drift,onboard SDRAM failure.Inspect camera signal and color image capture before replacement.

Diagnostic

Fault phenomenon:no color image,image color distortion,frame loss.Check shielded video cable,camera power supply,PCI slot contact,NI-IMAQ driver and RTSI sync configuration.

Product Brief

PCI-1411 is NI PCI single-channel color analog frame grabber supporting composite and S-Video input,NTSC/PAL standard,16MB onboard memory,ROI and hardware LUT,for legacy color machine vision inspection and old visual test equipment renovation.Mainly used for maintenance and replacement of old vision equipment.ESD protection must be followed during handling.
