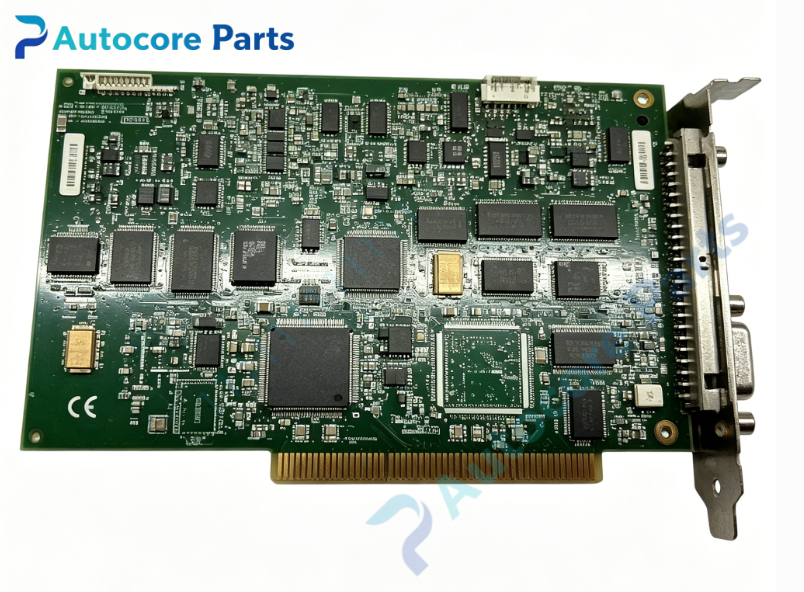

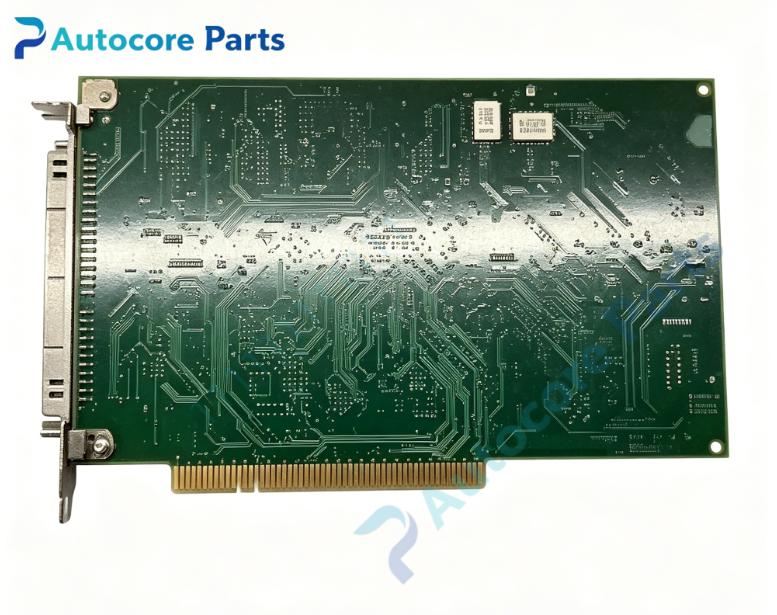

NI LAB-PC-1200 ISA Multifunction DAQ Board

Technical Specifications

Model:LAB-PC-1200

Brand:NI

Part No:LAB-PC-1200

Product type:ISA Bus Multifunction DAQ Data Acquisition Board

ADC:12-bit successive approximation ADC

Analog Input:8 single-ended /4 differential channels

Analog Output:2 channels,12-bit DAC

Digital I/O:24 lines TTL compatible

Counter/Timer:3×16-bit counter channels

Connector:50-pin multi I/O,34-pin RTSI bus

Bus:8-bit ISA

Power:+5VDC

Dimension:220mm120mm20mm

Weight:0.21kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

LAB-PC-1200 belongs to NI legacy ISA DAQ platform.It supports Traditional NI-DAQ driver and early LabVIEW versions,works with old ISA industrial PCs,widely used for laboratory signal acquisition and small test system shturl.cc/DZO is spare part for legacy test equipment overhaul.

Function

LAB-PC-1200 is old-style ISA multifunction DAQ board.It performs analog signal sampling,voltage output,digital switch signal reading and timing counting.It adopts jumperless resource configuration for reducing hardware conflict,suitable for bench measurement and industrial monitoring.

Installation

Insert LAB-PC-1200 into computer ISA slot and fasten bracket.Connect 50pin I/O cable to external signal terminal.Install legacy NI-DAQ driver.Take ESD protection before installation.

Interface

‑50-pin multi-function I/O connector

‑34-pin RTSI bus connector

‑ISA gold finger edge connector

‑Board status indicator

Feature

LAB-PC-1200 classic NI ISA DAQ acquisition board.Typical faults:gold finger oxidation,ADC circuit damage,counter chip failure.Inspect edge connector and signal circuit before replacement.

Diagnostic

Fault phenomenon:no analog reading,DIO no response,counting abnormal.Check ISA slot contact,50pin wiring,legacy DAQ driver and board hardware status.

Product Brief

LAB-PC-1200 is NI ISA bus multifunction DAQ board with 12-bit ADC,8AI,2AO,24 DIO and 16-bit counters,for laboratory measurement and renovation of old PC-based test systems.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
