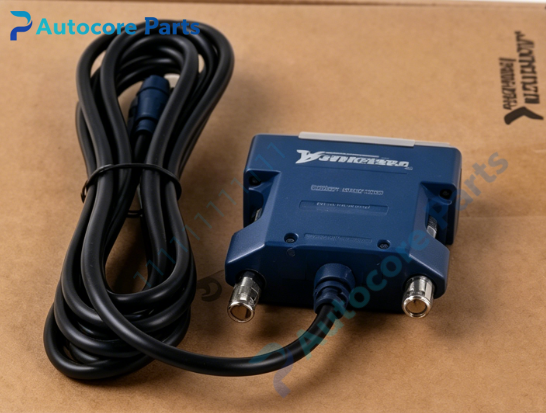

NI GPIB-USB-HS Hi-Speed USB IEEE488.2 GPIB Controller

Technical Specifications

Model:GPIB-USB-HS

Brand:NI

Part No:778927-01,780570-01

Product type:Hi-Speed USB to GPIB IEEE488.2 Controller

Standard:IEEE488.2,HS488 high-speed protocol

Transfer rate:3-wire up to1830KB/s,HS488 up to7230KB/s

Max instruments:control up to 14 GPIB devices

Interface:USB2.0 Hi-Speed,24-pin IEEE488 GPIB

Power:USB bus powered,no external power supply

Dimension:80mm61mm20mm

Weight:153g

Operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +70℃

Relative humidity:5~95% non-condensing

Certification:CE,FCC

System compatibility

GPIB-USB-HS belongs to NI GPIB measurement platform.It supports NI-488.2 driver,LabVIEW,runs on Windows,Mac OS and Linux systems,widely used for bench test instruments control in automated measurement systems.It is spare part for legacy test equipment overhaul.

Function

GPIB-USB-HS is compact USB GPIB controller.It connects PC USB port directly to GPIB instruments without extra GPIB cable,realizes high-speed instrument communication.Bus powered design for portable test setup,supports standard GPIB talker,listener and controller functions.

Installation

Plug the USB connector into computer USB2.0 port,attach GPIB instrument to the 24-pin GPIB connector.Install NI-488.2 driver software.Take ESD protection before installation.

Interface

‑USB2.0 Hi-Speed connector

‑24-pin IEEE488 GPIB male port

‑Power,Active and Error LED indicators

Feature

GPIB-USB-HS classic NI USB GPIB controller.Typical faults:USB interface damage,GPIB connector pin corrosion,firmware communication failure.Inspect ports and driver status before replacement.

Diagnostic

Fault phenomenon:device not recognized,fail to detect instruments,slow communication.Check USB cable,computer USB port,GPIB wiring and NI-488.2 driver installation.

Product Brief

GPIB-USB-HS is NI USB2.0 GPIB controller compliant with IEEE488.2,can drive up to14 GPIB test instruments,HS488 high-speed transmission,bus-powered compact adapter for lab automated measurement and old instrument renovation.Mainly used for maintenance and replacement of old test equipment.ESD protection must be followed during handling.
