NI BNC-2110 Shielded BNC Terminal Block

Technical Specifications

Model:BNC-2110

Brand:NI

Part No:BNC-2110

Product type:Shielded BNC Signal Terminal Block

Interface:15×BNC female connectors,30-pin spring terminal block,68-pin male SCSI I/O connector

Mounting:Desktop or DIN rail mounting

Wire range:28~16 AWG copper wire

Dimension:190.5mm104.8mm35.1mm

Weight:0.798kg

Operating temperature:0℃ ~ +70℃

Storage temperature:-55℃ ~ +125℃

Relative humidity:5~90% non-condensing

Certification:CE

System compatibility

BNC-2110 belongs to NI DAQ signal accessory shturl.cc is compatible with NI E/M/S series multifunction DAQ boards,used in laboratory measurement,automated production test and industrial signal acquisition systems.It is spare part for legacy test equipment overhaul.

Function

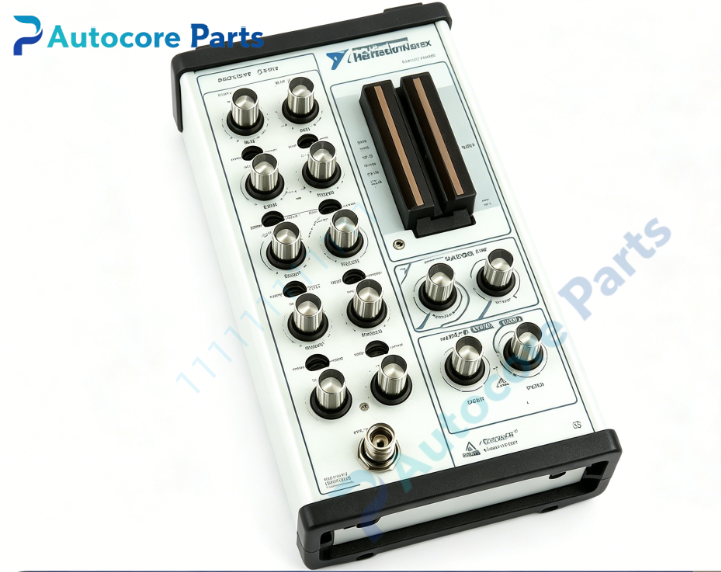

BNC-2110 is a shielded BNC signal breakout terminal block.It converts 68-pin DAQ signals to BNC connectors and spring terminals for easy analog input,analog output,counter and digital timing signal connection.The metal shielding reduces noise interference to guarantee measurement accuracy.

Installation

Fix BNC-2110 on desktop or DIN rail.Connect 68-pin SCSI cable to DAQ device,attach BNC coaxial cables and signal wires to spring terminals.Take ESD protection before wiring.

Interface

‑15 BNC female connectors

‑30-pin spring terminal block

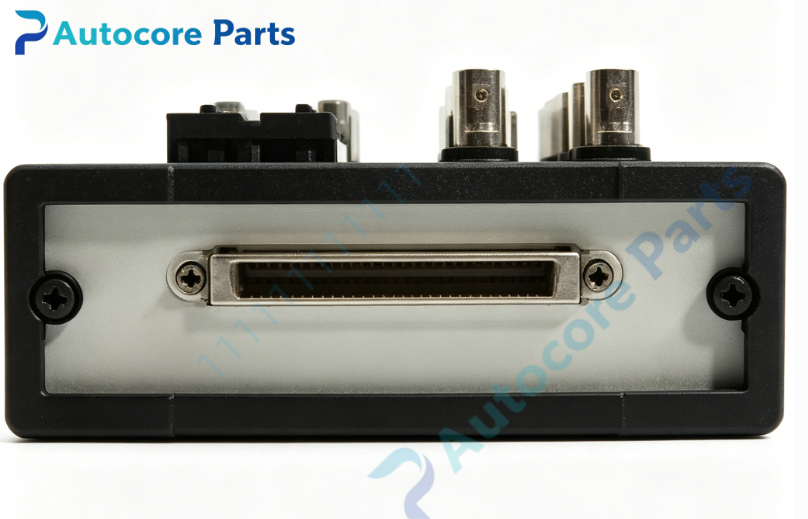

‑68-pin male SCSI I/O connector

‑+5V fused power terminal

Feature

BNC-2110 classic NI DAQ signal terminal block.Typical faults:BNC connector corrosion,spring terminal loose,cable interface oxidation.Clean connectors and inspect wiring before replacement.

Diagnostic

Fault phenomenon:signal noise,intermittent signal loss,poor contact.Check BNC and spring terminal connection,inspect shielding integrity and cable condition.

Product Brief

BNC-2110 is NI shielded BNC breakout terminal block with 15 BNC ports and 30-pin spring terminals,68-pin SCSI interface,support DIN rail mounting,matched for E/M/S DAQ series.Mainly used for maintenance and replacement of old industrial test and measurement equipment.ESD protection must be followed during handling.
