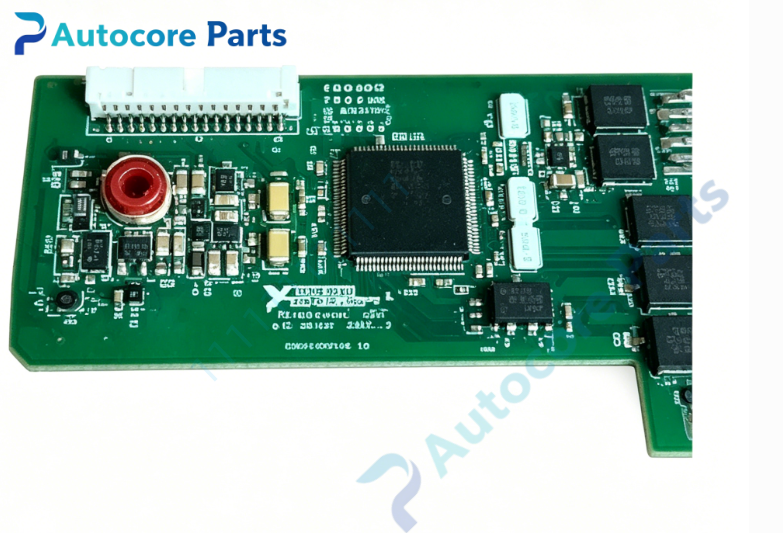

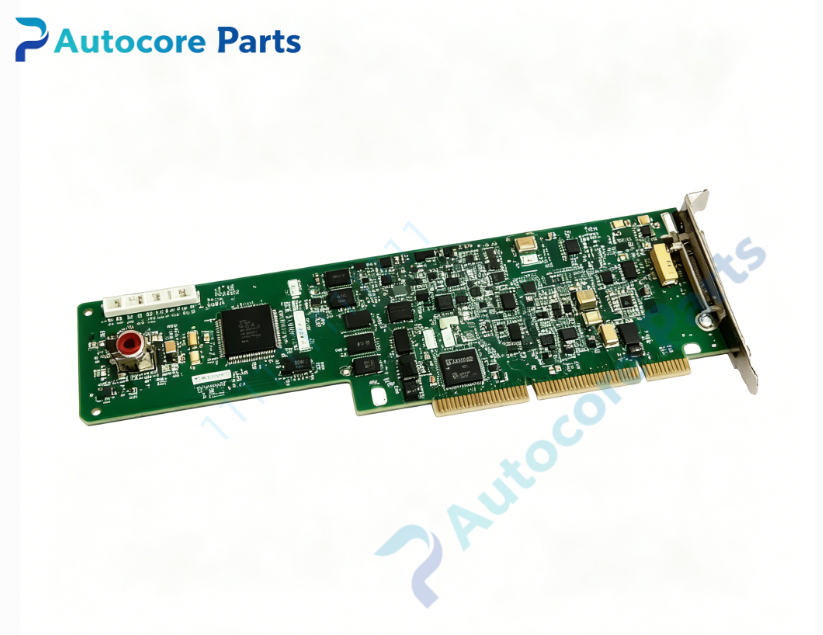

NI AT-MIO-16E-2 ISA Multifunction DAQ Board

Technical Specifications

Model:AT-MIO-16E-2

Brand:NI

Part No:AT-MIO-16E-2

Product type:ISA Bus Multifunction DAQ Board

Bus:ISA AT bus

ADC:12-bit successive approximation

Max sampling rate:500 kS/s

Analog Input:16 single-ended /8 differential,±10V

Analog Output:2 channel 12-bit AO,±10V

Digital I/O:8 channel TTL DIO

Counter Timer:2×24-bit counter (DAQ-STC),20MHz

Form Factor:ISA long card

Power supply:+5V DC

Dimension:340mm127mm17mm

Weight:0.44kg

Interface:68-pin I/O connector,RTSI trigger bus,ISA edge connector

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +100℃

Relative humidity:5~90% non-condensing

Certification:CE,FCC Class A

System compatibility

AT-MIO-16E-2 belongs to NI AT E series DAQ board.It works on PC AT compatible ISA systems,supports Traditional NI-DAQ driver,LabVIEW and Measurement Studio,widely used in production test,lab measurement and industrial process monitoring.It is spare part for legacy test equipment overhaul.

Function

AT-MIO-16E-2 is a high-performance ISA multifunction data acquisition board.It provides 12-bit analog input,analog output,digital I/O and counter/timer functions.Supports analog & digital triggering,RTSI bus synchronization with other DAQ cards,adopts DAQ-PnP for jumperless software configuration.

Installation

Insert AT-MIO-16E-2 into ISA slot of AT compatible computer chassis,secure the bracket.Connect 68-pin I/O cable and RTSI cable.Take ESD protection before power-on.

Interface

‑68-pin I/O connector

‑RTSI trigger bus connector

‑ISA edge connector

‑+5V DC power supply

Feature

AT-MIO-16E-2 classic legacy NI E-series DAQ board.Typical faults:gold finger oxidation,ADC circuit damage,connector pin corrosion.Clean gold finger and test analog/digital channels before replacement.

Diagnostic

Fault phenomenon:board undetected,analog reading error,DIO no response,RTSI sync failure.Check ISA PnP configuration,clean gold finger,test analog input,output and counter circuit.

Product Brief

AT-MIO-16E-2 is NI ISA E-series multifunction DAQ card with 500kS/s 12-bit ADC,16 single-ended /8 differential analog inputs,2 analog outputs,8 DIO and dual 24-bit counters.Mainly used for maintenance and replacement of old industrial test and measurement equipment.ESD protection must be followed during handling.
