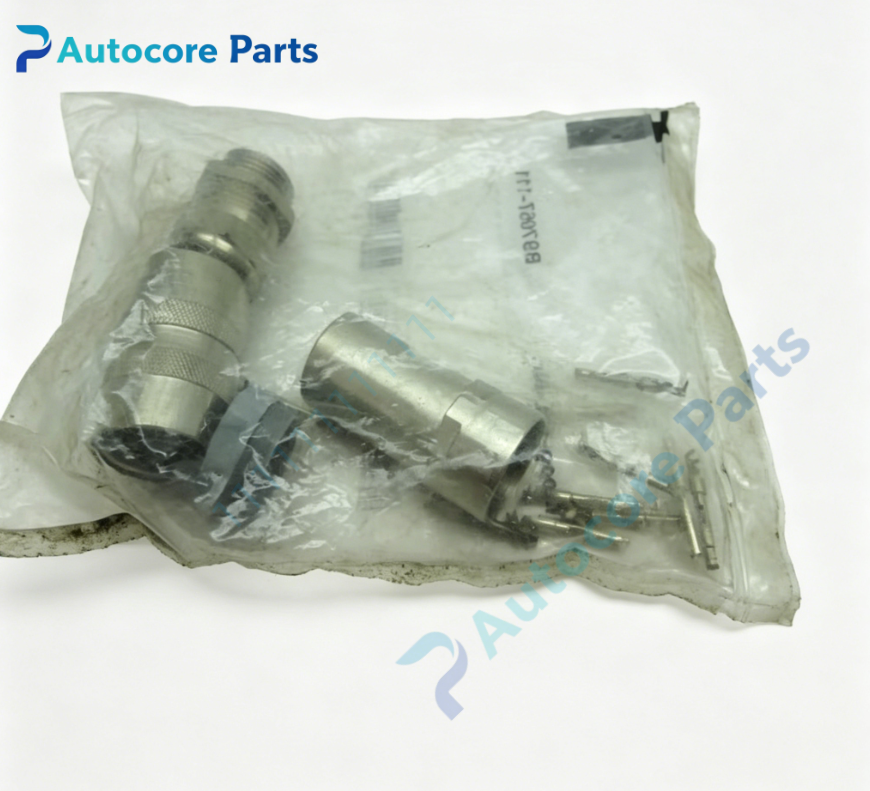

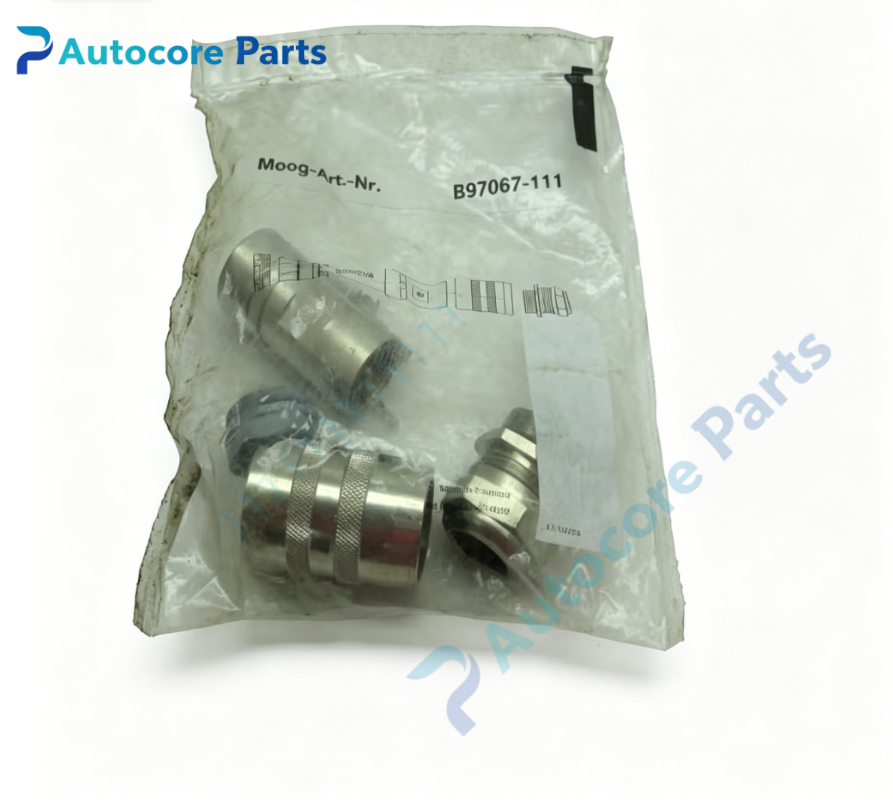

MOOG B97067-111 11+PE Threaded Circular Mating Connector

Technical Specifications

Model:B97067-111

Brand:MOOG

Product type:11+PE Threaded Circular Metal Mating Connector

Standard:EN 175201 Part 804

Structure:Metal shell,thread locking,gold-plated contact pins

Pin definition:11 signal pins + 1 PE protective earth

Protection class:IP65(mated)

Cable outer diameter:11~13mm

Dimension:54mm*21mm

Weight:0.055kg

Operating temperature:-20℃ ~ +120℃

Storage temperature:-40℃ ~ +130℃

Relative humidity:10~90% non-condensing

Certification:CE

System compatibility

B97067-111 is MOOG 11+PE threaded servo valve mating connector.It matches MOOG D660,D680 series servo valves with integrated electronics,widely used in steam turbine DEH,fatigue test bench and high-precision hydraulic servo system.It is electrical spare part for servo valve overhaul.

Function

B97067-111 threaded connector supplies 24V power,transmits analog command,spool feedback and digital communication signals between controller and servo valve.Thread locking design ensures anti-vibration and stable connection under harsh industrial working conditions.

Installation

Strip cable and crimp gold-plated contacts,insert pins into connector housing.Screw threaded ring to lock with valve socket.Check wiring continuity and insulation after assembly.Shielded cable is recommended.Take anti-static protection during handling.

Interface

‑11+PE pin cavity,thread locking interface

‑Connector laser marking label

Feature

MOOG IP65 metal servo valve connector for integrated electronic valves.Typical faults:pin oxidation,cable fracture,poor contact.Inspect pin status during maintenance.

Diagnostic

Fault phenomenon:signal jitter,intermittent communication,servo valve alarm.Check connector pins,cable crimp and threaded locking status.

Product Brief

B97067-111 is MOOG 11+PE threaded circular metal mating connector for D660/D680 series servo valve power and signal transmission.It is essential electrical connection spare part for industrial electro-hydraulic servo system maintenance and replacement.
