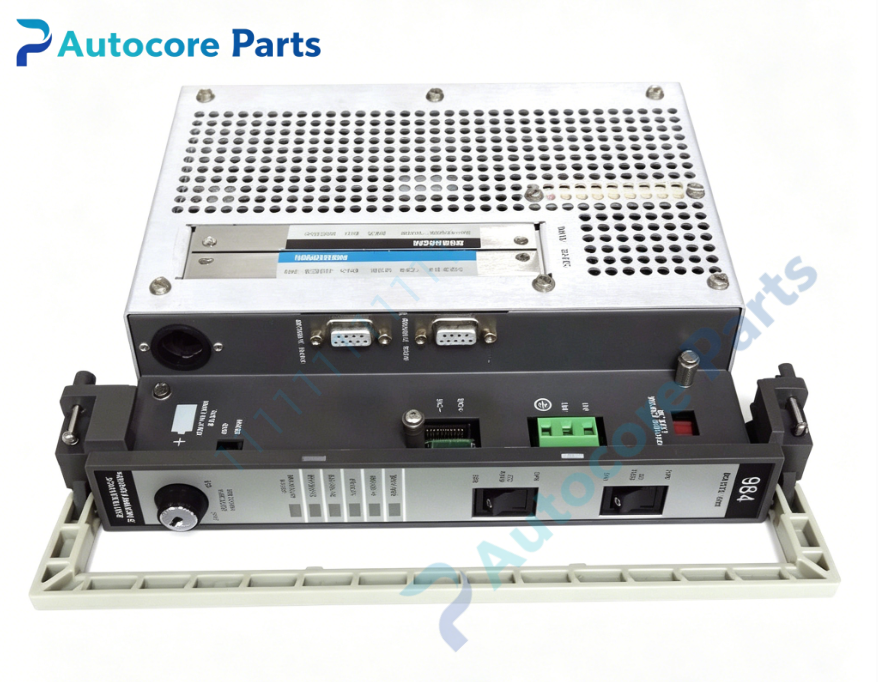

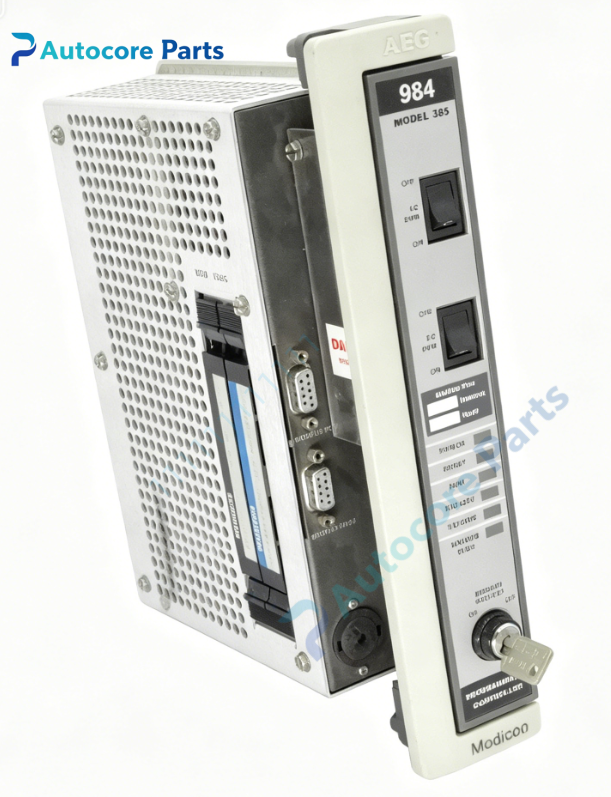

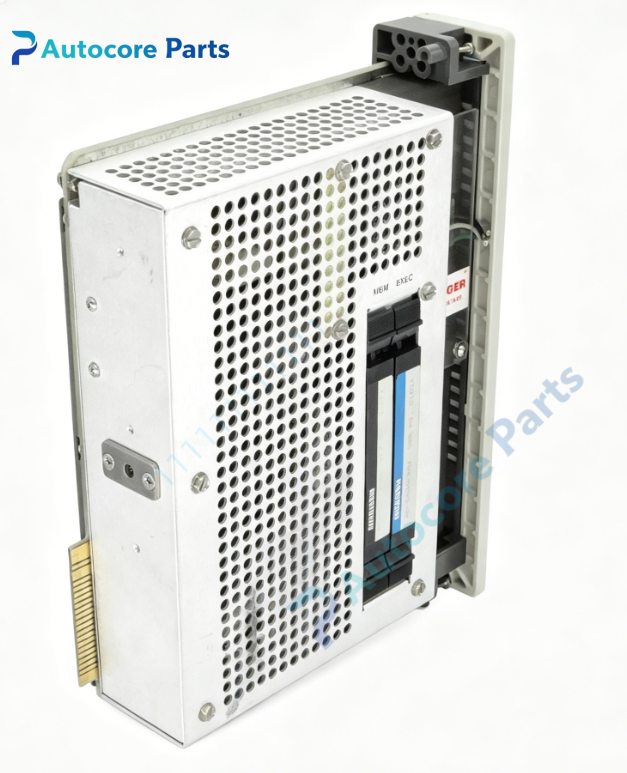

MODICON PC-0984-385 PLC Controller

Technical SpecificationsModel:PC-0984-385 Brand:MODICON Product Type:984 Series Programmable Logic Controller Power Supply:120/220V AC,50/60Hz Rated Current:0.5A@120V,0.25A@220V Mounting:DIN rail installation Operating temperature:0℃ ~ +40℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~80%, non-condensing Weight:2.41kg Dimension:260mm140mm110mm Protection:IP20

System compatibilityPC-0984-385 belongs to MODICON 984 series PLC controller. Compatible with MODICON 984 memory modules and matching I/O modules. It supports Modbus communication to connect HMI and upper monitoring host. Suitable for chemical plant,water treatment,packaging machinery,conveyor line medium-sized process control renovation and replacement as industrial spare part.

FunctionPC-0984-385 integrated PLC controller. It executes ladder logic program,collect digital and analog signals from field I/O modules,run control algorithm and output control signals to actuators. It supports Modbus serial communication for data exchange with HMI and SCADA host. Built-in program storage,hardware self-diagnosis and power-off data retention function. Widely used for medium scale industrial automation logic and process control, serving as reliable PLC spare part.

InstallationCut off power supply before installation. Mount PC-0984-385 on DIN rail inside control cabinet. Connect 120/220V AC power cable and field I/O wiring. Configure Modbus station address and I/O allocation,download user program and complete online running test before formal operation.

InterfaceAC power terminal,field I/O terminal block,Modbus communication port,run/fault/status LED indicators for PC-0984-385 MODICON PLC controller.

FeatureMODICON PC-0984-385 984 PLC controller,wide AC voltage input,DIN rail mounting,Modbus communication interface,built-in hardware fault diagnosis,industrial grade anti-interference design,IP20 protection. This discontinued legacy industrial spare part used for old MODICON 984 automation system control maintenance and replacement.

DiagnosticController no power: check AC power supply,fuse and loose terminal for PC-0984-385. Equipment fault alarm: check program error,I/O short circuit and memory failure. Modbus communication failure: check communication cable,station address and grounding. Program loss: inspect backup battery aging and replacement. Intermittent shutdown: check power supply stability and ambient overheating.

Product BriefPC-0984-385 is MODICON 984 series PLC programmable controller. It executes user control logic and Modbus communication for medium industrial process automation,classic spare part for legacy MODICON automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
