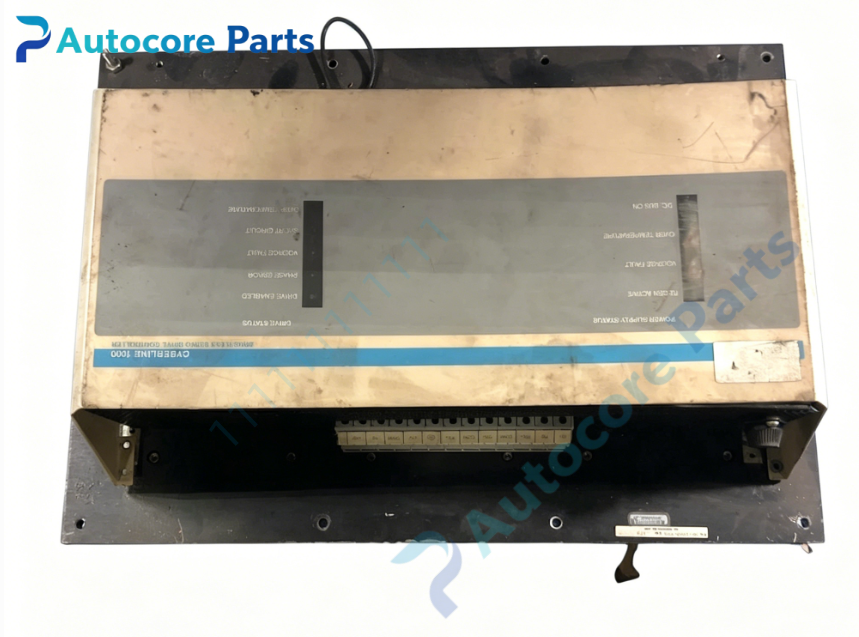

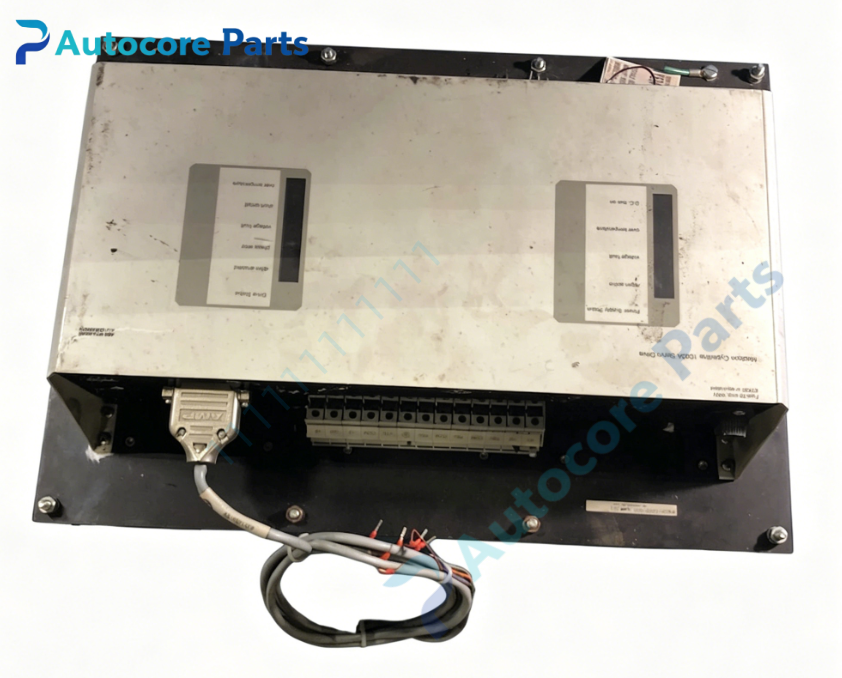

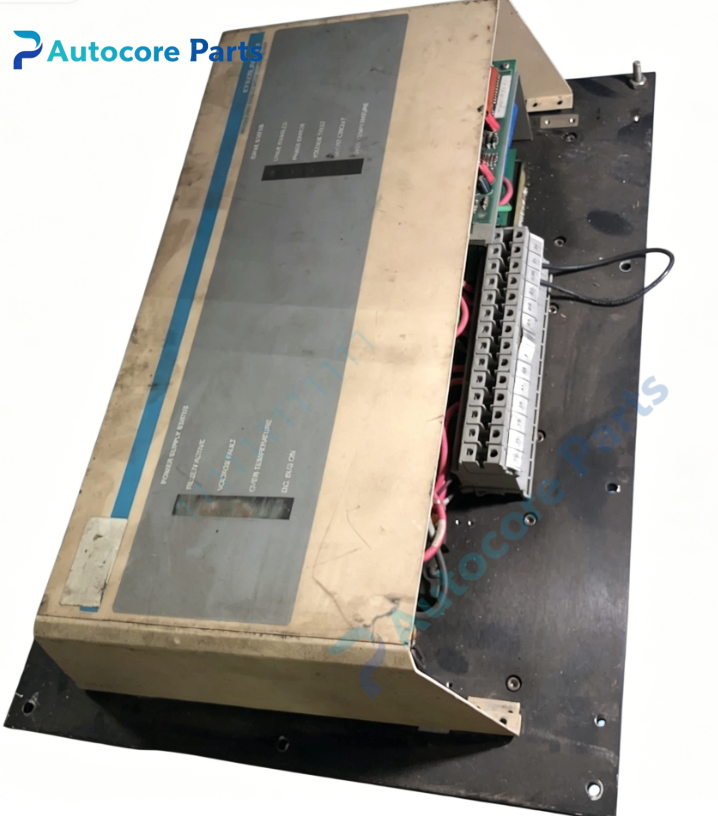

MODICON DR-1060-300 Servo Drive Amplifier

Technical SpecificationsModel:DR-1060-300 Brand:MODICON Product Type:DR Series AC Servo Drive Amplifier Control Mode:Analog closed-loop control,support position / speed / torque control Power Supply:AC input Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:2.1kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityDR-1060-300 belongs to MODICON DR series servo drive amplifier. Compatible with MODICON MM series motion processor modules and MODICON servo motors. It receives command signal from motion control card to drive servo motor. Suitable for machine tool,packaging machinery,textile equipment,automated assembly line high precision motion control renovation and replacement as industrial spare part.

FunctionDR-1060-300 industrial servo drive amplifier. It receives analog position or speed command signal from motion processor module,amplify power signal to drive AC servo motor. It collects encoder feedback signal from motor to form closed-loop control,realize accurate positioning and speed regulation. Built-in overcurrent,overvoltage,overheat and overload protection function. Widely used for automation equipment servo power drive, serving as reliable servo drive spare part.

InstallationCut off main power before installation. Insert DR-1060-300 servo drive module into MODICON backplane slot and lock the card. Check gold finger contact condition. Connect power cable to motor and encoder feedback cable between motor and drive. Configure motor parameters and gain value,complete servo auto-tuning and motion test before formal operation.

InterfaceBackplane bus connector,main power terminal,servo motor power terminal,encoder feedback terminal,status and fault LED indicators for DR-1060-300 MODICON servo drive amplifier.

FeatureMODICON DR-1060-300 servo drive amplifier,high dynamic response,multiple safety protection,closed-loop position control,standard single slot rack design,anti-interference design for industrial workshop environment. This discontinued legacy industrial spare part used for old MODICON multi-axis motion automation system maintenance and replacement.

DiagnosticMotor no rotation: check drive power supply,enable signal and wiring sequence for DR-1060-300. Overload alarm: inspect mechanical load stuck and motor parameter mismatch. Overheat alarm: check ambient temperature,ventilation and long-time overload. Position deviation: check encoder damage,cable shielding and grounding. Intermittent fault: inspect connector loose and cable aging.

Product BriefDR-1060-300 is MODICON DR series AC servo drive amplifier. It cooperates with MODICON motion processor and servo motor to realize high-precision closed-loop motion control,classic spare part for legacy MODICON industrial motion equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
