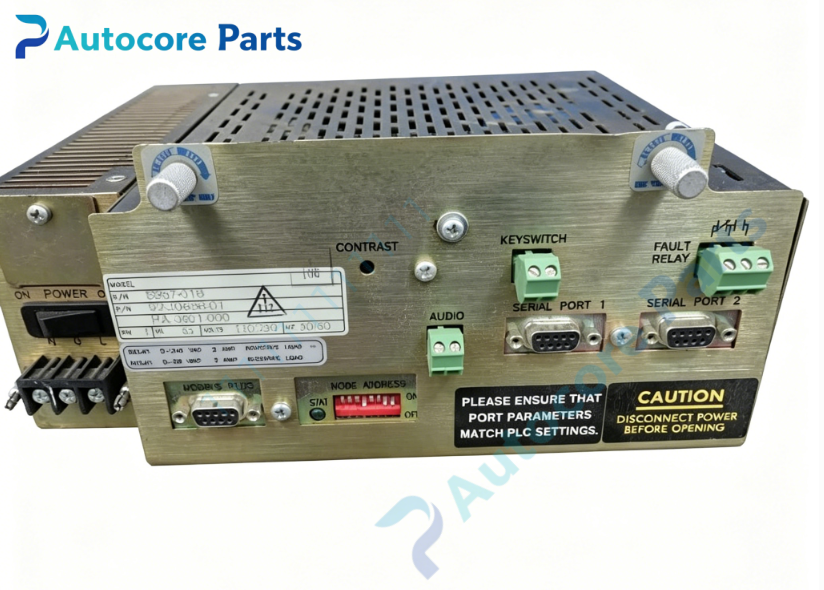

MODICON PA-0601-000 Graphics Card Module

Technical SpecificationsModel:PA-0601-000 Brand:MODICON Product Type:PA Series Industrial Graphics Card Module Backplane Power:5V DC supplied by rack backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:0.5kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityPA-0601-000 belongs to MODICON PA series graphics card module. Compatible with MODICON dedicated industrial workstation rack system. It can work with MODICON PLC host to realize industrial graphical data display. Suitable for old industrial monitoring workstation,chemical plant,power station,metallurgy factory monitoring system renovation and replacement as industrial spare part.

FunctionPA-0601-000 industrial graphics card module. It receives data from MODICON host controller,process graphics image data and output video signal to industrial display screen. It supports real-time dynamic process picture display,alarm graphic display and data curve rendering. Built-in module self-diagnosis function for hardware status detection. Widely used for old industrial workstation graphical monitoring, serving as reliable graphics processing spare part.

InstallationCut off rack power before installation. Insert PA-0601-000 graphics card module into MODICON backplane slot and lock the card. Check gold finger contact condition. Connect video cable between module and industrial monitor. Confirm hardware address configuration,complete image output test before formal operation.

InterfaceBackplane bus connector,video output port,status and fault LED indicators for PA-0601-000 MODICON graphics card module.

FeatureMODICON PA-0601-000 graphics card module,standard single slot rack design,industrial grade graphics processing,stable video signal output,LED hardware status indication,anti-interference design for industrial workshop environment,IP20 cabinet protection. This discontinued legacy industrial spare part used for old MODICON industrial workstation graphics display maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for PA-0601-000. No video output: check video cable,monitor power supply and module hardware configuration. Image distortion: inspect electromagnetic interference and connector loose fault. LED abnormal: verify module hardware damage and backplane power supply. Fault alarm: read module diagnostic information through supporting workstation software.

Product BriefPA-0601-000 is MODICON PA series industrial graphics card module. It processes graphic data and outputs video signal for old MODICON industrial monitoring workstation,classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
