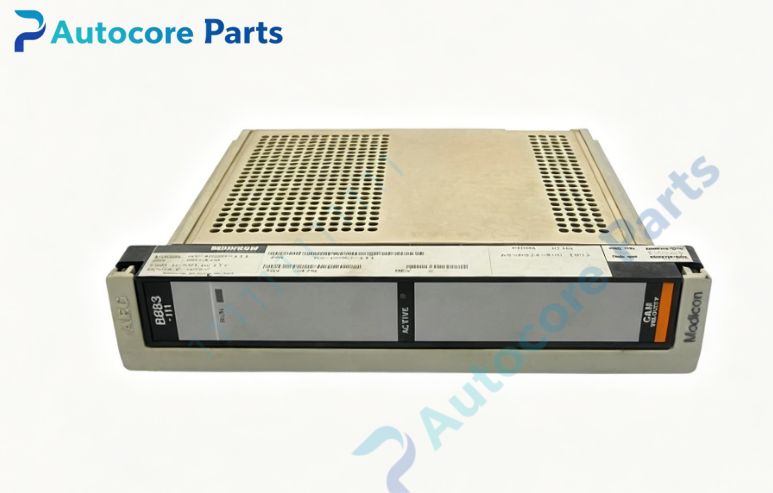

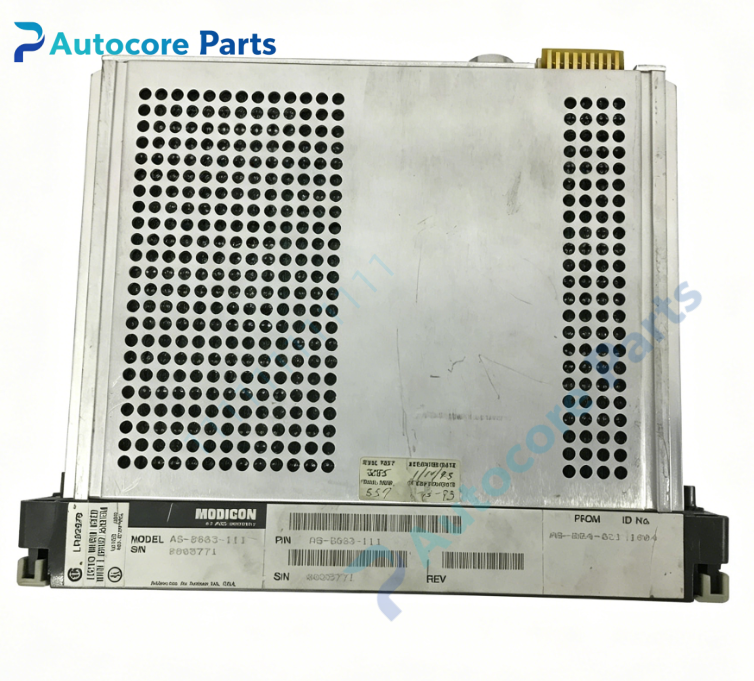

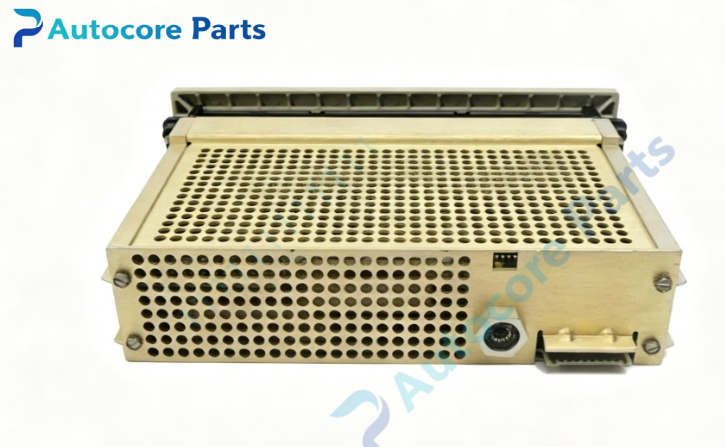

MODICON AS-B883-111 CAM Emulator Module

Technical SpecificationsModel:AS-B883-111 Brand:MODICON Product Type:800 Series CAM Emulator Module Position Input:12-bit parallel encoder position code Output:8-bit parallel discrete control code Backplane Power:+5V supplied by backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.45kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityAS-B883-111 belongs to MODICON 800 series special motion module. Compatible with MODICON 984 series CPU,800 series backplane and RIO remote rack system. It works with incremental encoder and other 800 series I/O modules. Suitable for packaging machinery, textile equipment, rotary machine position cam control system replacement as industrial spare part.

FunctionAS-B883-111 is cam emulator module with velocity compensation function. It receives 12-bit parallel position signal from encoder, then outputs 8-bit parallel control signal according to preset cam curve. It can automatically compensate speed deviation, trigger on/off action at designated rotary position, offloads cam logic calculation from main PLC CPU. Widely used for rotary machinery position sequence control, serving as reliable motion control spare part.

InstallationCut off rack power before installation. Insert the AS-B883-111 module into MODICON 800 backplane slot and lock the card. Connect encoder parallel position cable and field discrete output wiring. Configure cam curve parameters via programming software and complete position test before formal operation.

InterfaceBackplane bus connector,encoder parallel position input terminal,8-bit parallel discrete output terminal,channel status LED indicators for AS-B883-111 MODICON CAM emulator module.

FeatureMODICON AS-B883-111 cam emulator module,built-in velocity compensation,12-bit encoder position input,8-bit parallel output,standard single slot rack design,real-time position trigger,IP20 cabinet protection. This discontinued legacy industrial spare part used for old rotary machinery cam motion control system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-B883-111. Position reading abnormal: inspect encoder wiring,encoder damage and parallel signal cable. Cam output mis-trigger: verify cam curve parameter setting and speed compensation value. Output signal loss: check field terminal wiring and output circuit fault. Fault alarm: read module diagnostic status through Modsoft programming software.

Product BriefAS-B883-111 is MODICON 800 series CAM emulator module with velocity compensation. It replaces mechanical cam to realize electronic cam sequence control according to encoder position, classic spare part for legacy rotary and packaging automation equipment overhaul.
