MODICON 92-00757-02 Operator Panel

Technical SpecificationsModel:92-00757-02 Brand:MODICON Product Type:PanelMate Plus Series 10-inch Membrane Keypad HMI Operator Panel Power Supply:115V AC Mounting:Control cabinet panel cutout mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:3.5kg Dimension:335mm265mm82mm Protection:Front panel IP65, rear side IP20

System compatibility92-00757-02 belongs to MODICON PanelMate Plus HMI series. Compatible with MODICON 984, Quantum and Momentum PLC series. It supports Modbus communication protocol, can connect with PLC, variable frequency drives and field sensors. Suitable for production line, water treatment, metallurgy and legacy process control system replacement as industrial spare part.

Function92-00757-02 is industrial membrane keypad human machine interface operator panel. It realizes real-time process data display, parameter setting, manual operation, alarm popup and historical data recording. It uploads field running status and transmits operation commands to PLC. Widely used for on-site monitoring and operation of automated equipment, serving as reliable HMI spare part.

InstallationCut off power before installation. Embed the 92-00757-02 panel into cabinet cutout and fasten mounting brackets. Connect AC power cable and Modbus communication wiring. Download HMI project and complete communication test before formal operation.

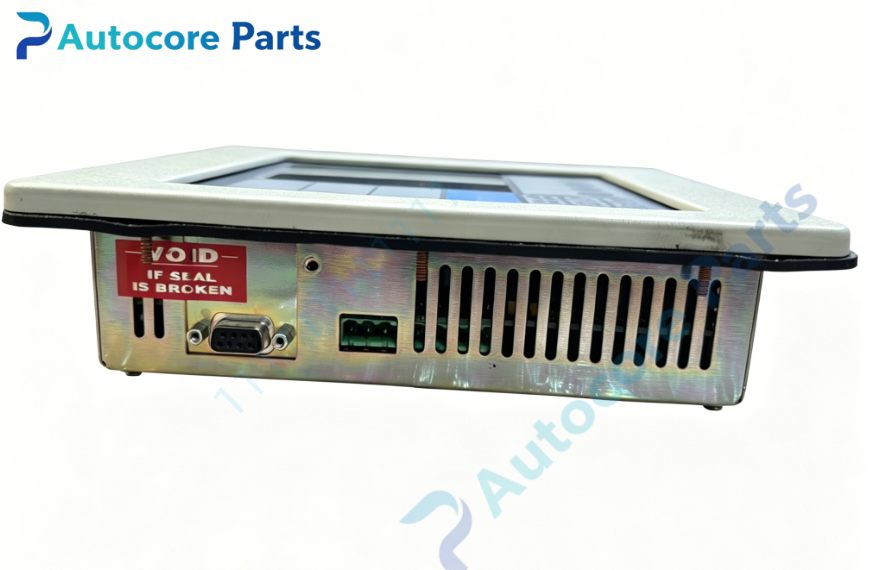

InterfaceModbus communication port, programming download port, AC power terminal,membrane keypad and display screen,status LED indicators for 92-00757-02 MODICON HMI panel.

FeatureMODICON 92-00757-02 PanelMate Plus keypad operator panel,10-inch display,membrane key operation,front panel IP65 dustproof and waterproof,real-time alarm message,data logging function,strong anti-interference for workshop environment. This discontinued legacy industrial spare part used for old automation system HMI maintenance and replacement.

DiagnosticPanel no power: check AC input, fuse and power wiring for 92-00757-02. Screen no display: inspect backlight circuit and power supply of display unit. Communication failure: verify Modbus address, baud rate and communication cable. Keypad unresponsive: check membrane keypad wiring and keypad wear condition. Alarm abnormal: check PLC data register and HMI project configuration.

Product Brief92-00757-02 is MODICON PanelMate Plus series 10-inch industrial membrane keypad HMI operator panel. This classic HMI is widely matched with MODICON PLC for legacy factory automation equipment, supporting field parameter adjustment and status monitoring, popular industrial spare part for old system overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
