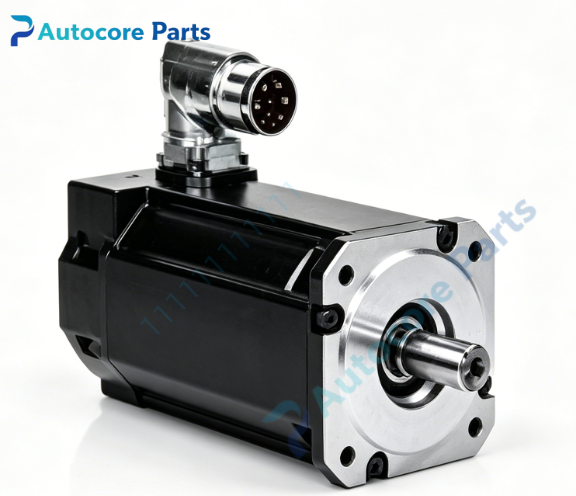

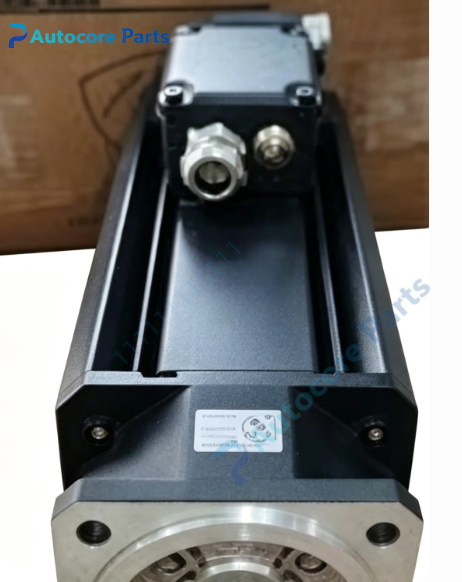

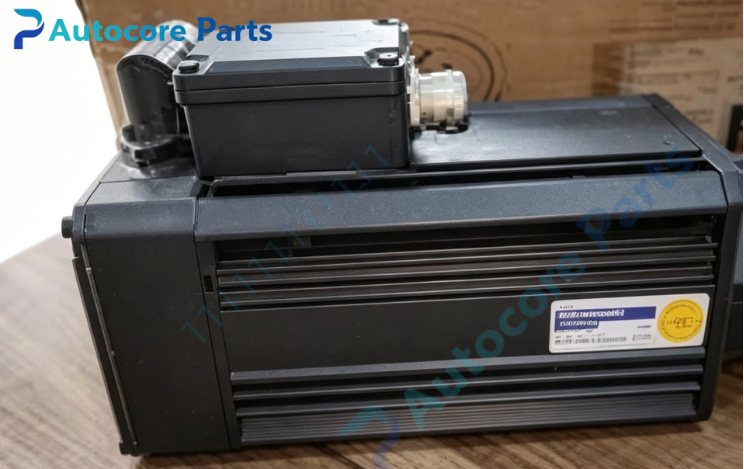

Kollmorgen 6SM56-L3000 Synchronous Servo Motor Spare Part

Technical Specifications

Model:6SM56-L3000

Brand:Kollmorgen

Part No:6SM56-L3000

Product type:AC synchronous servo motor

Rated speed:3000 rpm

Rated power:3.4 kW

Rated torque:10.8 Nm

Input voltage:400V AC

Dimension:220mm110mm155mm

Weight:9.5kg

Feedback:resolver feedback

Mounting:IM B5 flange mounting

Protection class:IP64

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

6SM56-L3000 belongs to Kollmorgen 6SM servo motor family,matched with Kollmorgen SERVOSTAR series servo drives,widely used in machine tools,packaging machinery,textile equipment and material handling systems.This is a legacy spare part for industrial equipment maintenance replacement.

Function

6SM56-L3000 is high-performance permanent magnet synchronous servo motor.It features moderate rotor inertia and high continuous torque,suitable for heavy load positioning applications.Resolver feeds back real-time rotor position to servo amplifier to realize closed-loop speed and position control.

Installation

Install 6SM56-L3000 via flange mounting.Align coupling accurately,connect power cable and resolver feedback cable.Tighten terminals and check cable shielding before power-on commissioning.

Interface

‑Power cable connector

‑Resolver feedback connector

‑Flange mounting interface

‑Shaft with keyway

‑Shield grounding terminal

Circuit feature

Permanent magnet rotor structure,low loss stator winding,resolver position detection circuit,strong overload capacity,adapt to heavy-duty frequent start-stop working condition.

Feature

6SM56-L3000 is obsolete Kollmorgen spare part.Typical faults:bearing wear,winding insulation aging,resolver signal failure,shaft damage,connector corrosion.Inspect winding resistance,resolver signal and bearing noise before replacement.

Diagnostic

When motor fails,motor overheat,abnormal mechanical noise,position deviation,resolver signal loss,overcurrent alarm,axis cannot run normally.

Built‑in function:High torque dynamic output,rotary position detection,axis speed and position control,used as Kollmorgen machine tool servo motor spare replacement.

Product Brief

6SM56-L3000 is Kollmorgen 6SM56 series high-torque synchronous servo motor with resolver feedback,suitable for heavy-load industrial positioning.Match with SERVOSTAR servo drives.Verify feedback type and power rating before ordering.ESD protection required during handling and installation.
