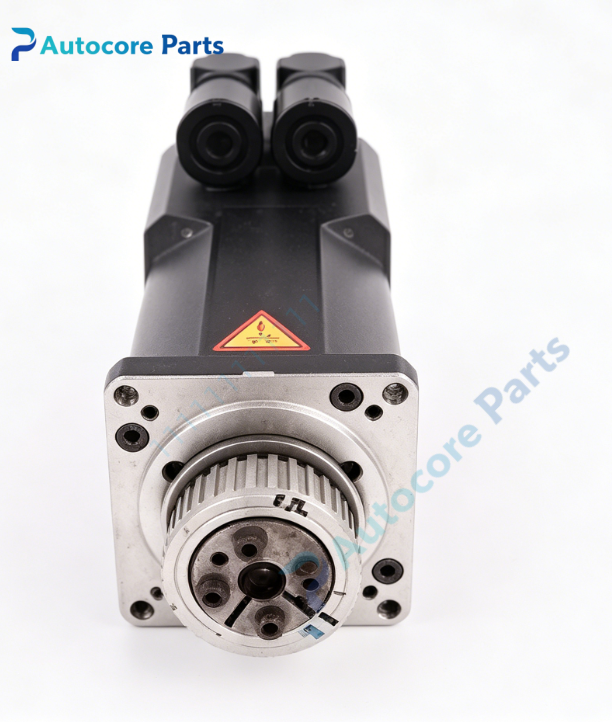

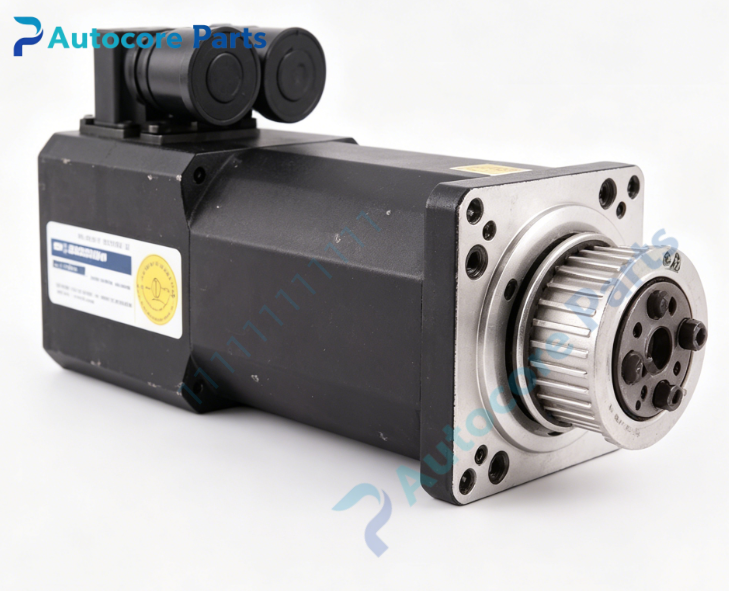

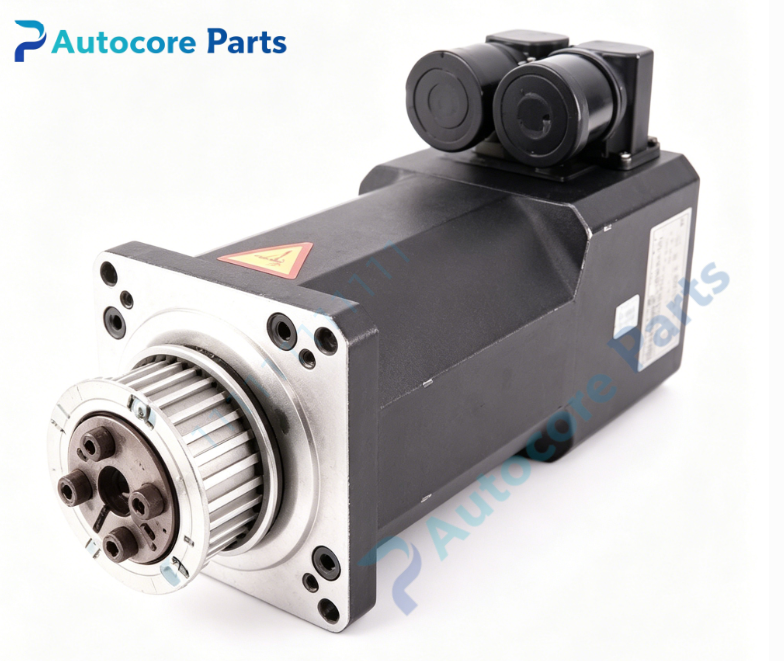

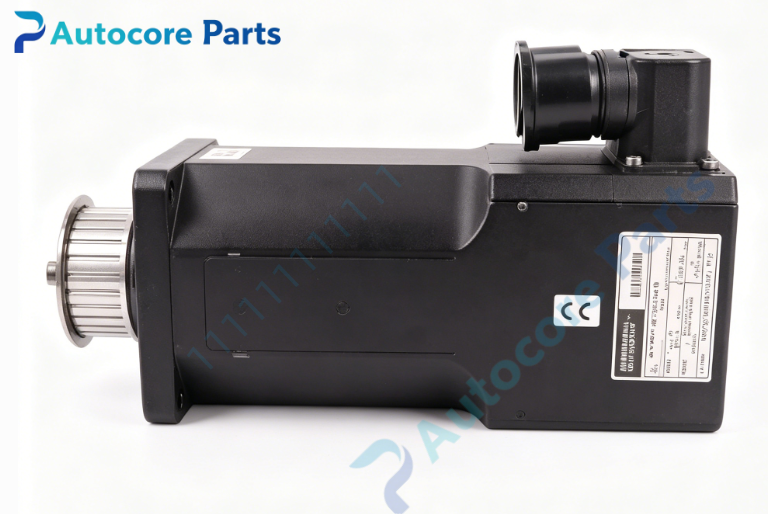

Kollmorgen 6SM37M-6000 Synchronous Servo Motor Spare Part

Technical Specifications

Model:6SM37M-6000

Brand:Kollmorgen

Part No:6SM37M-6000

Product type:AC synchronous servo motor

Rated speed:6000 rpm

Rated power:0.37 kW

Rated torque:0.59 Nm

Input voltage:400V AC

Dimension:190mm70mm100mm

Weight:1.9kg

Feedback:resolver feedback

Mounting:IM B5 flange mounting

Protection class:IP64

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

6SM37M-6000 belongs to Kollmorgen 6SM servo motor family,matched with Kollmorgen SERVOSTAR series servo drives,widely used in machine tools,packaging machinery,textile equipment and material handling systems.This is a legacy spare part for industrial equipment maintenance replacement.

Function

6SM37M-6000 is compact permanent magnet synchronous servo motor.It features low rotor inertia,fast dynamic response,suitable for high-speed high-precision point-to-point positioning.Resolver feeds back real-time rotor position to servo amplifier to realize closed-loop speed and position control.

Installation

Install 6SM37M-6000 via flange mounting.Align coupling accurately,connect power cable and resolver feedback cable.Tighten terminals and check cable shielding before power-on commissioning.

Interface

‑Power cable connector

‑Resolver feedback connector

‑Flange mounting interface

‑Shaft with keyway

‑Shield grounding terminal

Circuit feature

Permanent magnet rotor structure,low inertia stator winding,resolver position detection circuit,good overload capacity,adapt to frequent start-stop working condition.

Feature

6SM37M-6000 is obsolete Kollmorgen spare part.Typical faults:bearing wear,winding insulation aging,resolver signal failure,shaft damage,connector corrosion.Inspect winding resistance,resolver signal and bearing noise before replacement.

Diagnostic

When motor fails,motor overheat,abnormal mechanical noise,position deviation,resolver signal loss,overcurrent alarm,axis cannot run normally.

Built‑in function:High dynamic torque output,rotary position detection,axis speed and position control,used as Kollmorgen automation servo motor spare replacement.

Product Brief

6SM37M-6000 is Kollmorgen 6SM series compact synchronous servo motor with resolver feedback,supporting high speed positioning application.Match with SERVOSTAR servo drives.Verify feedback type and power rating before ordering.ESD protection required during handling and installation.
