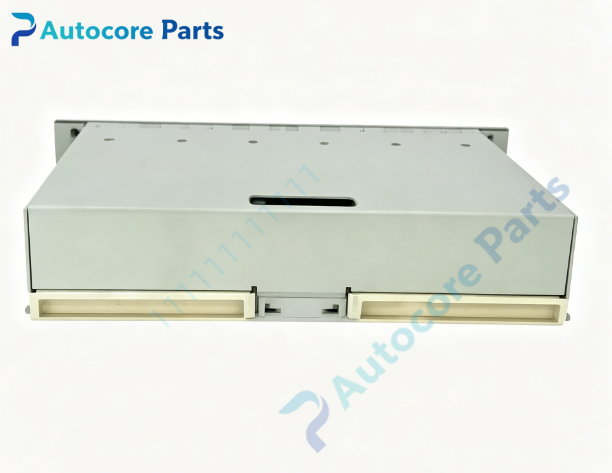

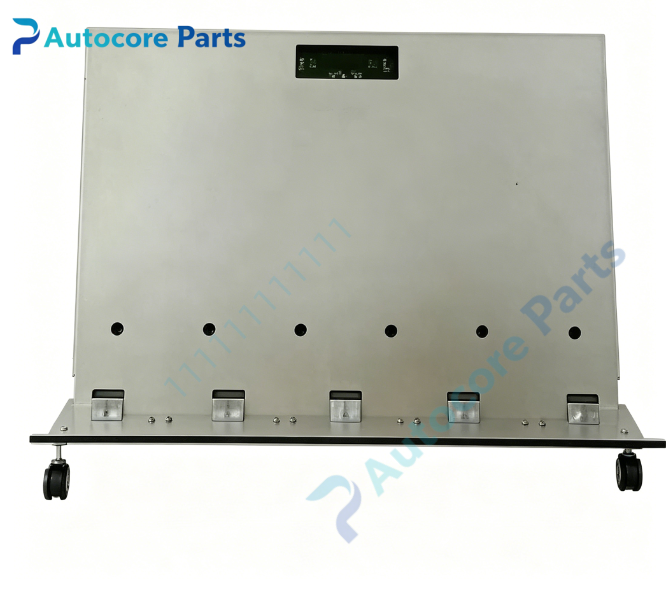

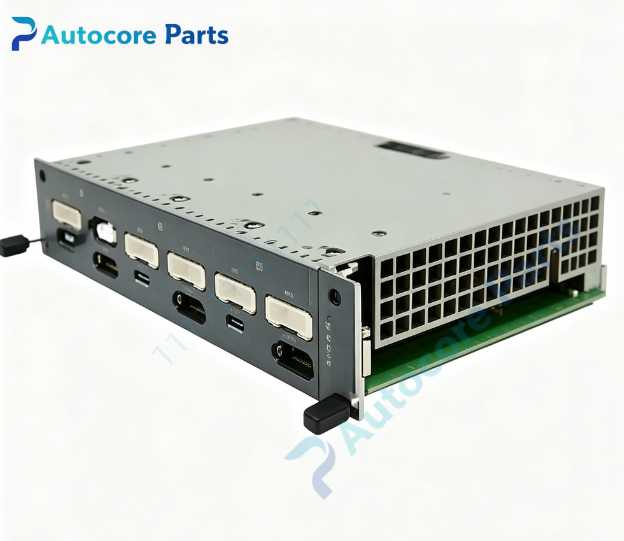

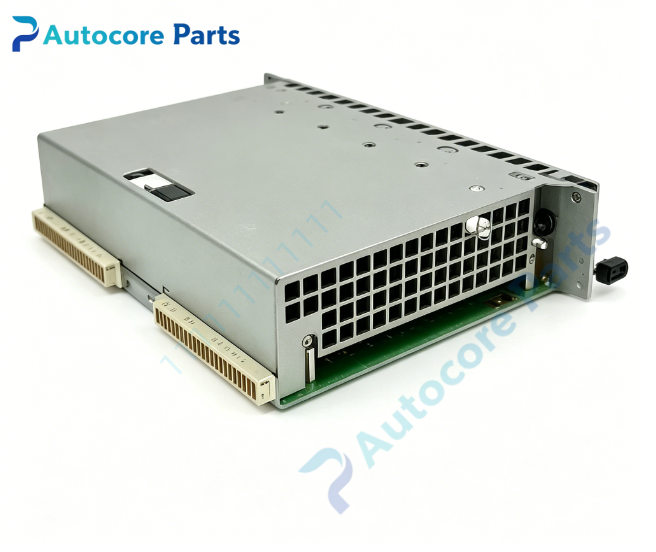

KEBA SC102 Motion Control Module

Technical Specifications

Model:SC102

Brand:KEBA

Product type:Rack mount motion control module

Power supply:24 Vdc,19.2~28.8V tolerance,max 0.9A

Control function:Multi-axis motion control,position loop calculation,trajectory planning,encoder signal acquisition,hardware self-diagnosis,fault indication

Communication:Kemro K2 backplane bus

Mounting:Plug-in rack slot installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.34kg

Dimension:260mm64mm25mm

Certification:CE

Protection class:IP20

System compatibility

SC102 belongs to KEBA Kemro K2 control system family,matched with KEMRO-BUS-8 backplane,CPU modules and drive units.Widely applied in injection molding,die-casting machine control cabinets.This is a discontinued legacy motion control module for equipment maintenance spare replacement.

Function

SC102 serves as KEBA rack multi-axis motion control module.It undertakes real-time trajectory planning and closed-loop position control for servo axes.It collects encoder feedback signals,calculates position deviation and outputs control commands to servo drives.It supports electronic cam,position synchronization and positioning functions.It feeds axis status and fault alarm data back to main CPU via backplane bus.It acts as core motion control component for Kemro K2 modular control system.

Installation

Insert SC102 into the designated rack slot and lock the latch.Complete encoder and drive wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

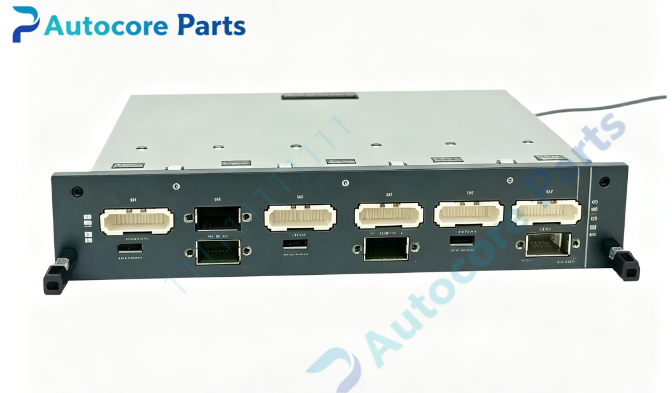

Interface

‑24Vdc power input terminal

‑Encoder signal terminal

‑Servo drive signal port

‑Kemro K2 backplane gold finger connector

‑Axis status and fault LED indicator

Circuit feature

Built-in ESD and surge suppression circuit,signal isolation design,high-speed real-time signal processing,strong anti-interference performance for industrial cabinet environment.

Feature

SC102 is obsolete KEBA series spare part.Typical failures include axis positioning deviation,encoder signal loss,communication interruption,connector oxidation.Check module circuit,signal channels and gold fingers before replacement.This module must match Kemro K2 series rack system,direct substitution without inspection is not recommended.

Diagnostic

When signal abnormality,position overshoot or internal hardware fault occurs,the module triggers protection and lights up fault LED.

Built‑in function:Multi-axis motion control,trajectory planning,encoder signal acquisition,servo closed-loop control,status monitoring,self-diagnosis and fault alarm,used as KEBA Kemro K2 series motion control module spare replacement.

Product Brief

SC102 is KEBA old industrial rack motion control module for injection molding and die-casting machine automation equipment.Confirm compatibility with Kemro K2 backplane before ordering.ESD protection required during handling and installation.
