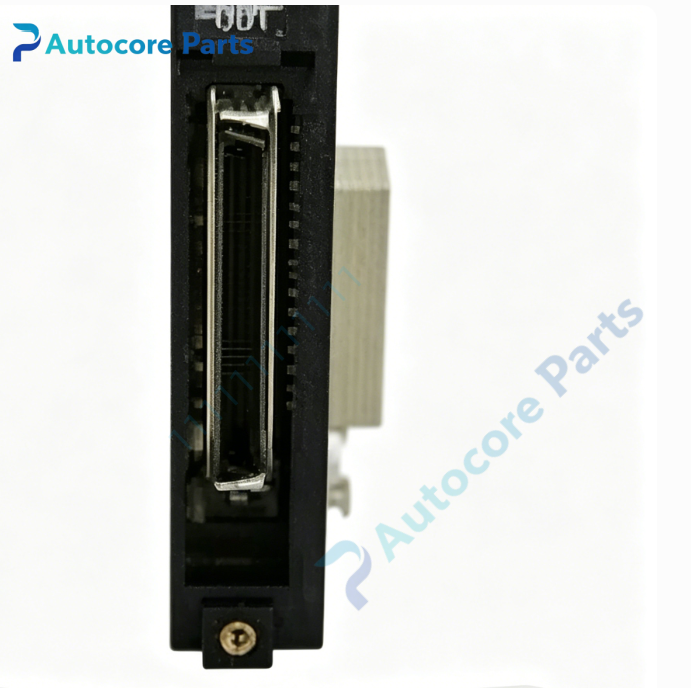

KEBA IC101 Communication Interface Module

Technical Specifications

Model:IC101

Brand:KEBA

Product type:Backplane bus communication interface module

Power supply:24 Vdc,19.2~28.8V tolerance,max 0.5A

Control function:Backplane bus signal conversion,rack extension communication,module data transmission,signal isolation,hardware self-diagnosis,fault indication

Communication:KEBA internal backplane bus

Mounting:Plug-in rack installation

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.32kg

Dimension:170mm95mm30mm

Certification:CE

Protection class:IP20

System compatibility

IC101 belongs to KEBA ComAct control system family,matched with KEBA CPU,FB201 I/O module and HRS201 safety relay.Widely applied in injection molding,die-casting machine control cabinets.This is a discontinued legacy bus interface module for equipment maintenance spare replacement.

Function

IC101 serves as KEBA backplane bus communication interface module.It realizes signal conversion and data forwarding between main controller and extended rack modules.It isolates bus signals to reduce interference and ensure stable real-time communication between each rack station.It monitors bus communication status continuously and feeds fault information back to host controller.It acts as bus connection and signal isolation component for KEBA machinery automation system.

Installation

Insert IC101 into the designated rack slot and lock the latch.Complete bus and power wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc backplane power terminal

‑KEBA rack backplane connector

‑Extended rack bus terminal

‑Status and fault LED indicator

Circuit feature

Isolated bus circuit,built-in ESD and surge suppression design.Stable high-speed bus transmission,strong anti-interference performance for industrial cabinet environment.

Feature

IC101 is obsolete KEBA series spare part.Typical failures include bus communication interruption,signal attenuation,connector aging.Check module circuit and connector pins before replacement.This module must match corresponding KEBA rack system,direct substitution without inspection is not recommended.

Diagnostic

When bus signal abnormality,communication timeout or internal hardware fault occurs,the module uploads fault information to host controller and lights up fault LED.

Built‑in function:Backplane bus signal conversion,extended rack communication,signal isolation,bus status monitoring,self-diagnosis and fault alarm,used as KEBA ComAct series bus interface module spare replacement.

Product Brief

IC101 is KEBA old industrial series backplane bus interface module for injection molding and die-casting machine automation equipment.Confirm KEBA rack and system matching before ordering.ESD protection required during handling and installation.
