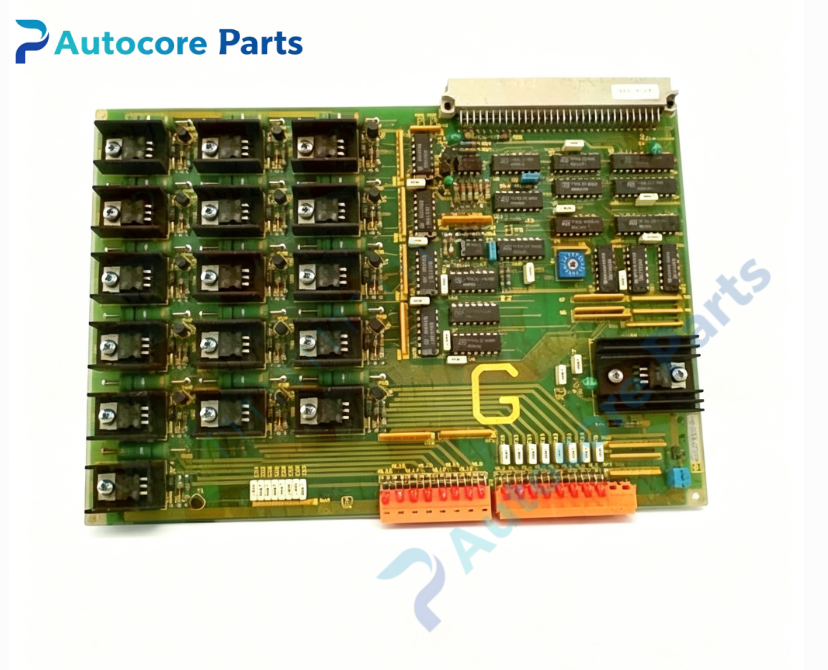

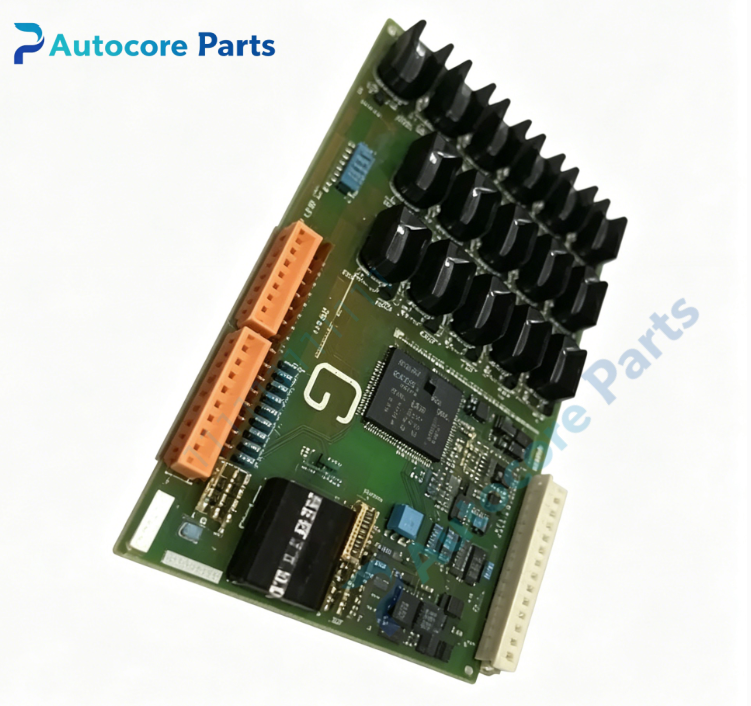

KEBA E-16-DIGOUT/G 16CH Digital Output Module

Technical Specifications

Model:E-16-DIGOUT/G

Brand:KEBA

Product type:16-channel digital output module

Power supply:24 Vdc,max 8A total

Single channel current:0.5A

Output type:PNP open collector

Control function:Digital switching signal output,short-circuit protection,overload protection,channel status detection,hardware self-diagnosis,fault indication

Communication:Internal backplane bus

Mounting:Plug-in rack mounting

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.8kg

Dimension:220mm145mm25mm

Certification:CE

Protection class:IP00

System compatibility

E-16-DIGOUT/G belongs to KEBA KePlast control system family,matched with KEBA CPU controller and I/O rack.Widely applied in injection molding machinery and automated equipment control cabinets.This is a discontinued legacy digital output module for equipment maintenance spare replacement.

Function

E-16-DIGOUT/G serves as KEBA 16-channel digital output module.It receives control commands from main controller via backplane bus and outputs 24V PNP switching signals to solenoid valves,relays and actuators.Each channel supports short-circuit and overload protection,can feed back real-time channel status to host controller.It acts as signal execution component for KEBA plastic machinery control system.

Installation

Insert E-16-DIGOUT/G into the designated rack slot and lock the latch.Complete field actuator wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc power terminal

‑Rack backplane connector

‑Screw terminal block for field output

‑Channel status LED indicator

‑Module fault status lamp

Circuit feature

Isolated output circuit,built-in ESD and surge suppression design.Stable switching signal output,strong anti-interference performance for industrial cabinet environment.

Feature

E-16-DIGOUT/G is obsolete KEBA series spare part.Typical failures include channel no output,output burnout,backplane communication interruption.Check module circuit and connector pins before replacement.This module must match corresponding KEBA rack system,direct substitution without inspection is not recommended.

Diagnostic

When channel short-circuit,overload or internal hardware fault occurs,the module uploads fault information to host controller and lights up fault LED.

Built‑in function:16-channel digital signal output,overload and short-circuit protection,channel status monitoring,self-diagnosis and fault alarm,used as KEBA KePlast series digital output module spare replacement.

Product Brief

E-16-DIGOUT/G is KEBA old industrial series 16CH digital output module for injection molding machine and automated production equipment.Confirm KEBA rack and CPU model matching before ordering.ESD protection required during handling and installation.
