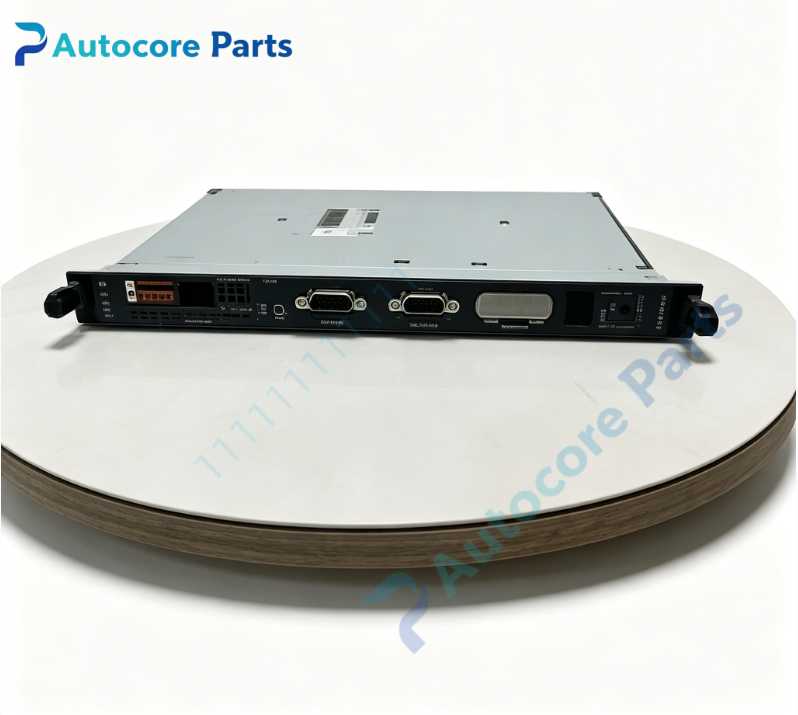

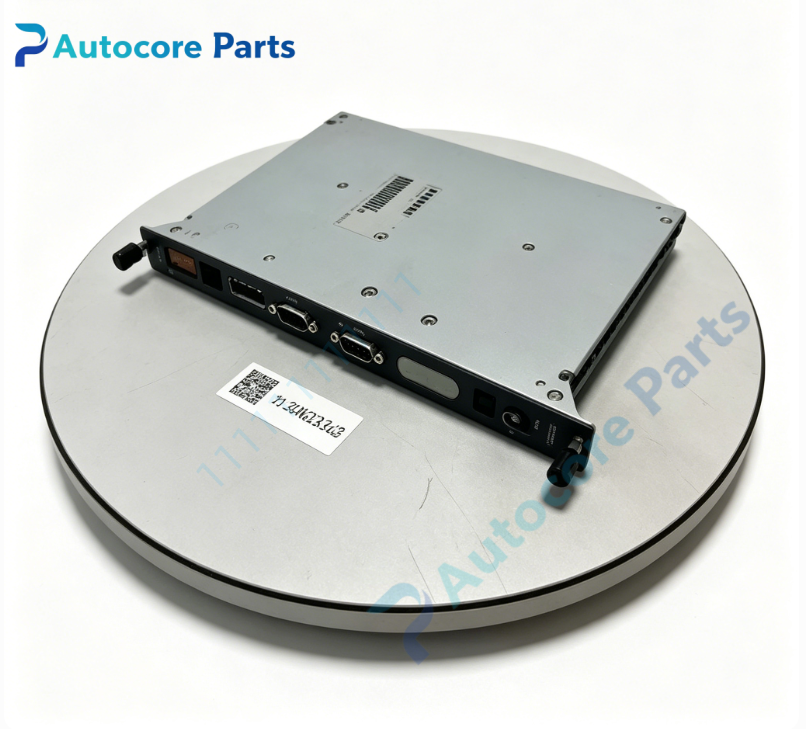

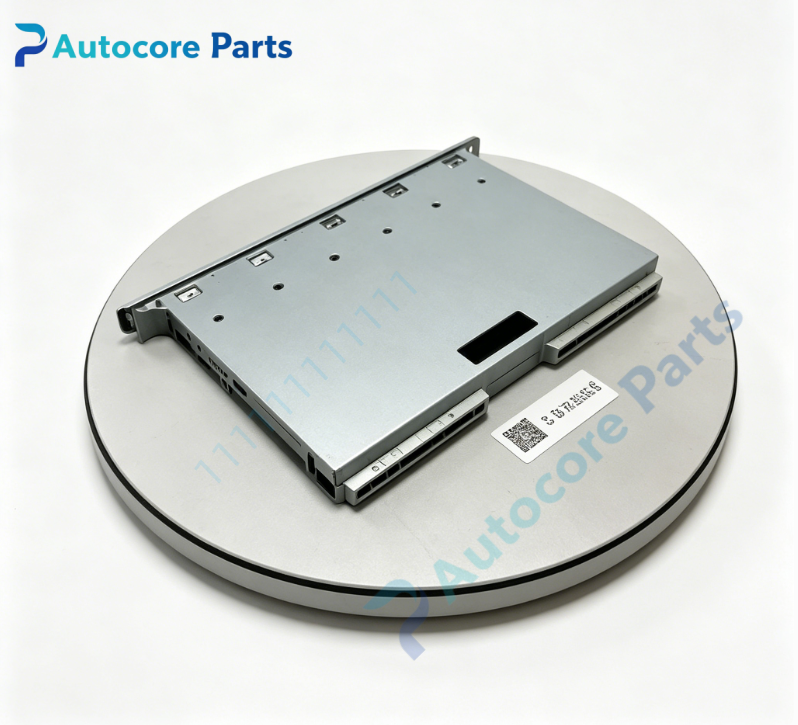

KEBA CU312/E/51993 Control Unit Module

Technical Specifications

Model:CU312/E/51993

Brand:KEBA

Product type:Processing control unit module

Power supply:24 Vdc,max 1.3A

Control function:Program execution,machine logic processing,real-time motion calculation,data storage,hardware self-diagnosis,fault alarm

Communication:Ethernet,RS232,CAN bus,internal backplane bus

Mounting:Plug-in rack mounting

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.46kg

Dimension:165mm100mm32mm

Certification:CE

Protection class:IP20

System compatibility

CU312/E/51993 belongs to KEBA control system family,matched with KEBA I/O modules and operator panels.Widely applied in injection molding machinery and robot control cabinets.This is a discontinued legacy processing control unit for equipment maintenance spare replacement.

Function

CU312/E/51993 serves as KEBA processing control unit.It runs user control program,processes logic commands and multi-axis motion planning.It exchanges data with I/O modules,HMI and servo drives through multiple communication ports.It saves machine configuration parameters and operating logs,continuously monitors hardware operating status and triggers fault alarms.It acts as core control component for KEBA plastic and robotic automation equipment.

Installation

Insert CU312/E/51993 into the designated rack slot and lock the latch.Complete power,communication and backplane wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc power terminal

‑Ethernet communication port

‑RS232 serial port

‑CAN bus interface

‑Rack backplane connector

‑Status and fault LED indicator

Circuit feature

Isolated control circuit,built-in ESD and surge suppression design.Stable program operation and high-speed data transmission,strong anti-interference performance for industrial cabinet environment.

Feature

CU312/E/51993 is obsolete KEBA series spare part.Typical failures include communication interruption,program read error,calculation abnormality,indicator fault.Check module circuit and connector pins before replacement.This module must match corresponding KEBA rack system,direct substitution without inspection is not recommended.

Diagnostic

When communication failure,memory error or internal hardware fault occurs,the module uploads fault information to system and lights up fault LED.

Built‑in function:Control program execution,logic and motion control,parameter storage,multi-protocol communication,self-diagnosis and fault alarm,used as KEBA series processing control unit spare replacement.

Product Brief

CU312/E/51993 is KEBA old industrial series processing control unit for injection molding machine and robot automation equipment.Confirm KEBA rack and system matching before ordering.ESD protection required during handling and installation.
