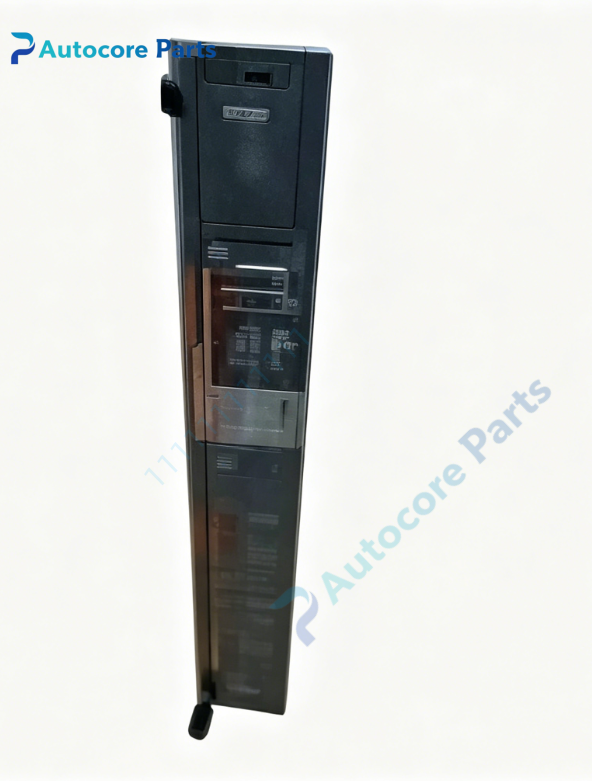

KEBA CC100A03/COL/8MB/58057 CPU Controller Module

Technical Specifications

Model:CC100A03/COL/8MB/58057

Brand:KEBA

Product type:CPU main controller module

Power supply:24 Vdc,max 1.5A

Memory:8MB

Control function:Machine logic calculation,multi-axis motion control,data storage,program execution,hardware self-diagnosis,fault alarm

Communication:Ethernet,RS232,CAN bus,internal backplane bus

Mounting:Plug-in rack mounting

Operating temperature:-10~55℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:0.5kg

Dimension:150mm100mm32mm

Certification:CE

Protection class:IP20

System compatibility

CC100A03/COL/8MB/58057 belongs to KEBA KePlast control system family,matched with KEBA I/O modules and operator panels.Widely applied in injection molding machinery and automated machinery control cabinets.This is a discontinued legacy CPU controller module for equipment maintenance spare replacement.

Function

CC100A03/COL/8MB/58057 serves as KEBA main CPU controller module.It executes machine control program,realizes logic processing and multi-axis motion calculation.It communicates with I/O modules,HMI and servo drives via multiple communication interfaces.It stores machine parameters and operation data,monitors hardware status in real time and outputs fault alarm signals.It acts as core control component for KEBA plastic machinery control system.

Installation

Insert CC100A03/COL/8MB/58057 into the designated rack slot and lock the latch.Complete power,communication and backplane wiring according to wiring drawing.Check 24V power polarity and cabinet grounding before power-on.

Interface

‑24Vdc power terminal

‑Ethernet port

‑RS232 serial interface

‑CAN bus port

‑Rack backplane connector

‑Status and fault LED indicator

Circuit feature

Isolated control circuit,built-in ESD and surge suppression design.Stable program operation and high-speed data transmission,strong anti-interference performance for industrial cabinet environment.

Feature

CC100A03/COL/8MB/58057 is obsolete KEBA series spare part.Typical failures include program loss,communication interruption,calculation abnormality,indicator fault.Check module circuit and connector pins before replacement.This module must match corresponding KEBA rack system,direct substitution without inspection is not recommended.

Diagnostic

When communication failure,memory error or internal hardware fault occurs,the module uploads fault information and lights up fault LED.

Built‑in function:Program execution,motion and logic control,parameter storage,multi-protocol communication,self-diagnosis and fault alarm,used as KEBA KePlast series CPU controller module spare replacement.

Product Brief

CC100A03/COL/8MB/58057 is KEBA old industrial series 8MB CPU controller for injection molding machine and automated production equipment.Confirm KEBA rack and system matching before ordering.ESD protection required during handling and installation.
