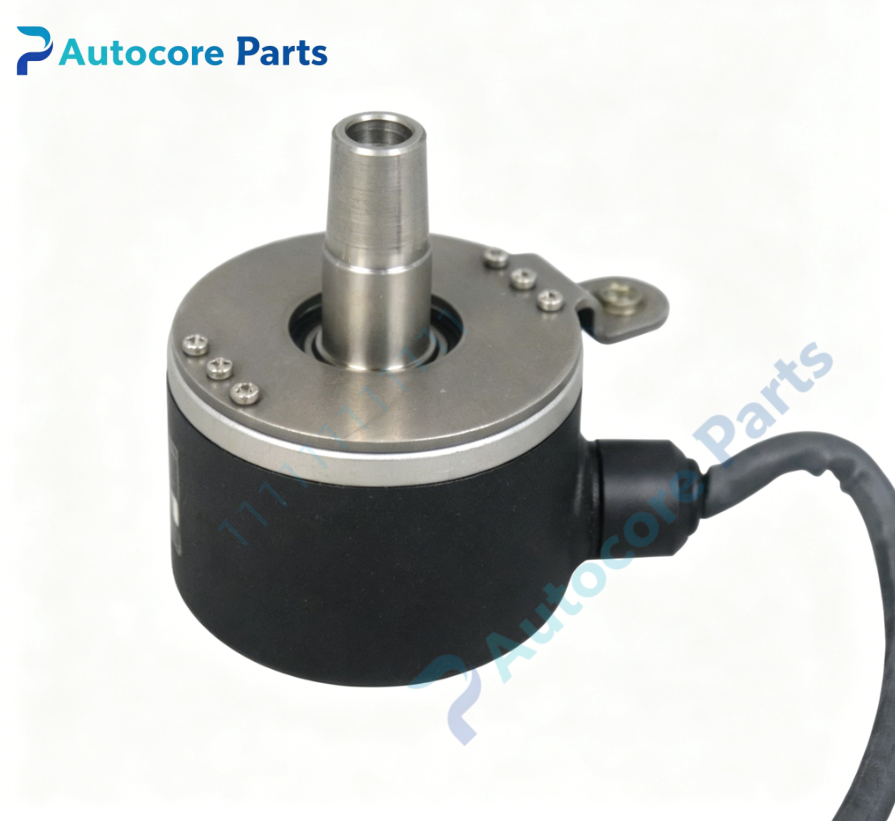

HEIDENHAIN ROD 320.005 Rotary Encoder

Technical Specifications

Model： ROD 320.005-1250

Brand： HEIDENHAIN

Product Type: Integrated bearing incremental rotary encoder for spindle or rotary axis

Module Feature:

Function: HEIDENHAIN ROD320.005 incremental rotary encoder with built-in bearing. It generates A/B/Z differential TTL square wave pulse signals with 1250 lines per revolution. Used for spindle speed and angular position detection for closed-loop control on heavy horizontal boring mills and large machining centers.

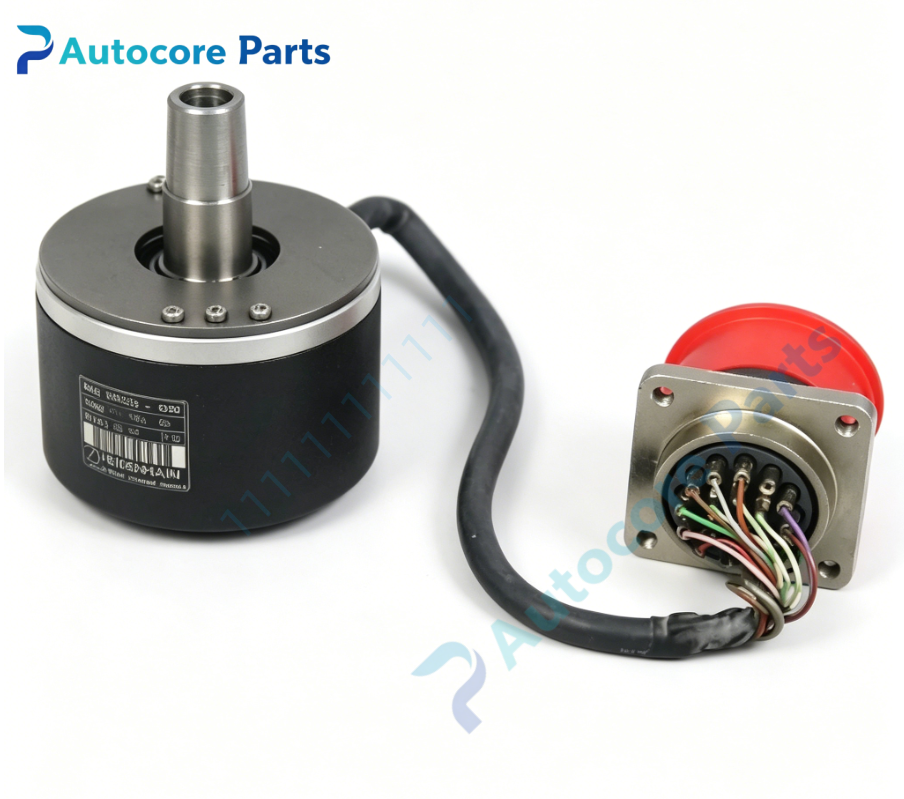

Measuring principle: Incremental optical scanning Line count: 1250 lines per revolution Output Signal: Differential TTL square wave A/B/Z pulses Onboard components: DIADUR grating disc, optical scanning assembly, precision bearing, metal housing, M23 flange connector

LED indicators: POWER, SIG, FAULT diagnostic lights

Hardware self-diagnosis: Signal amplitude monitoring, pulse signal integrity check

Programming software: HEIDENHAIN proprietary diagnostic software for pulse signal inspection

Electrical Parameters

Supply voltage: 5VDC ±5%

Power consumption: Max 2.4W

Mechanical & Structure:

Mounting: Coupled to spindle via flexible shaft coupling Shaft: Solid shaft Protection class: IP64 (encoder housing)

Environmental:

Operating temperature: 0℃ ~ +70℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer legacy incremental rotary encoder

System compatibility

Compatibility description: ROD320.005-1250 belongs to HEIDENHAIN ROD300 rotary encoder family. Differential TTL output compatible with Fives Giddings & Lewis PIC900 CNC axis control board. Widely applied on heavy CNC boring mill spindle.

Function

Function description: ROD 320.005-1250 is incremental rotary encoder manufactured by HEIDENHAIN. Installed on spindle end through flexible coupling. Optical grating disc generates differential TTL pulses to feed back spindle rotation speed and angular position to CNC controller. Metal housing protects internal optical parts from workshop dust, coolant and oil mist. Reference mark pulse is used for spindle orientation homing after power cycle. It is legacy spindle measuring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder 5VDC power. Mount encoder to spindle end, install flexible coupling and adjust concentricity. Connect shielded encoder cable to CNC axis control board. Restore power, verify POWER and SIG LED indicators, run encoder diagnostic and check pulse reading.

Interface

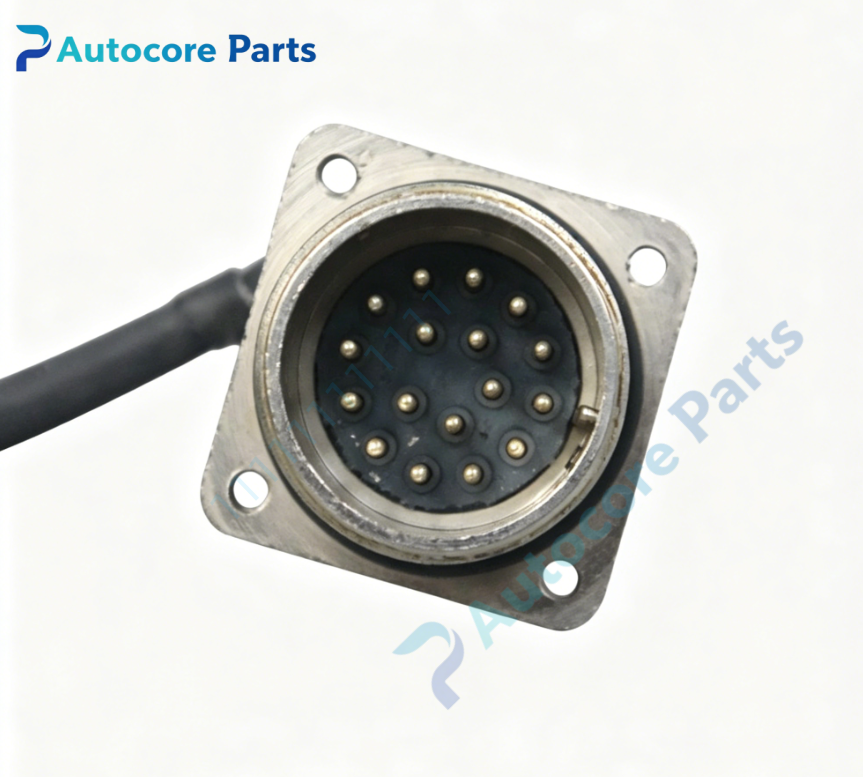

Interface list: M23 multi-pin flange connector, 5VDC power terminal,on-board POWER / SIG / FAULT LED indicators for HEIDENHAIN ROD 320.005-1250.

Diagnostic

Troubleshooting: No pulse output: Check 5VDC power supply, cable breakage or connector pin damage. FAULT LED lit: Low signal amplitude, grating contamination or coupling misalignment. Intermittent axis fault: Electrical noise interference, coupling wear or optical component aging.

Product Brief

Brief description: ROD 320.005-1250 is HEIDENHAIN legacy incremental rotary encoder with 1250 lines and differential TTL output,provides spindle speed and angular position feedback for heavy CNC boring mill spindle closed-loop control,legacy spindle encoder spare.
