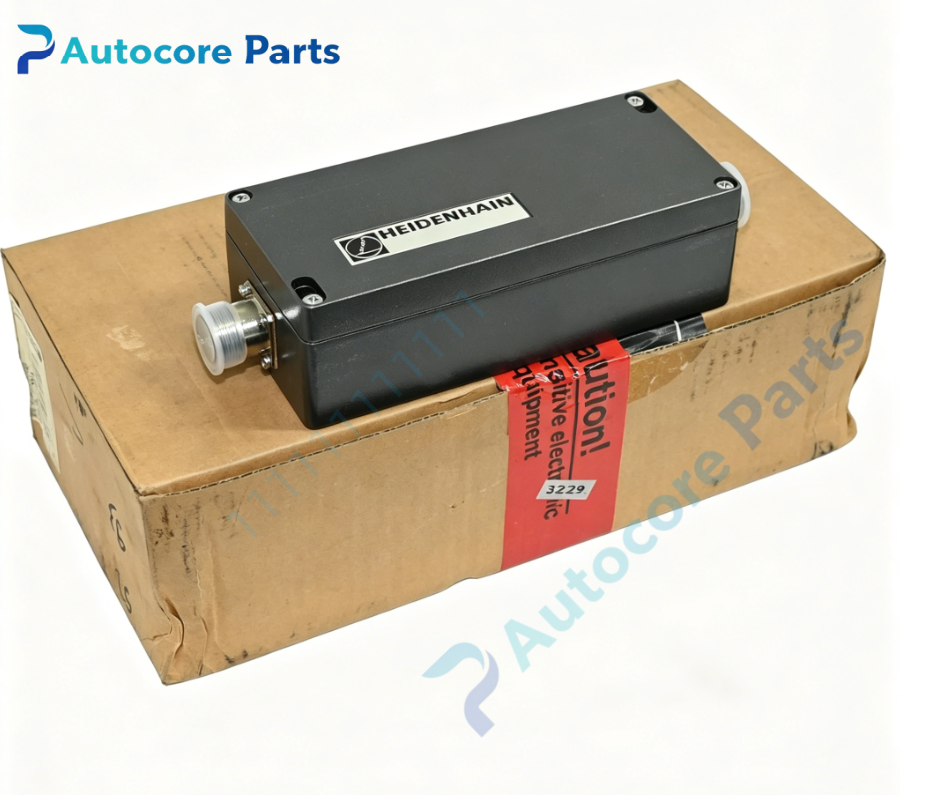

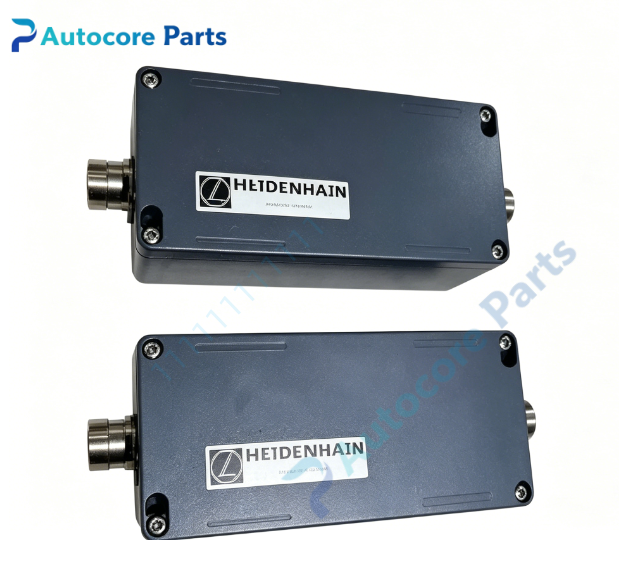

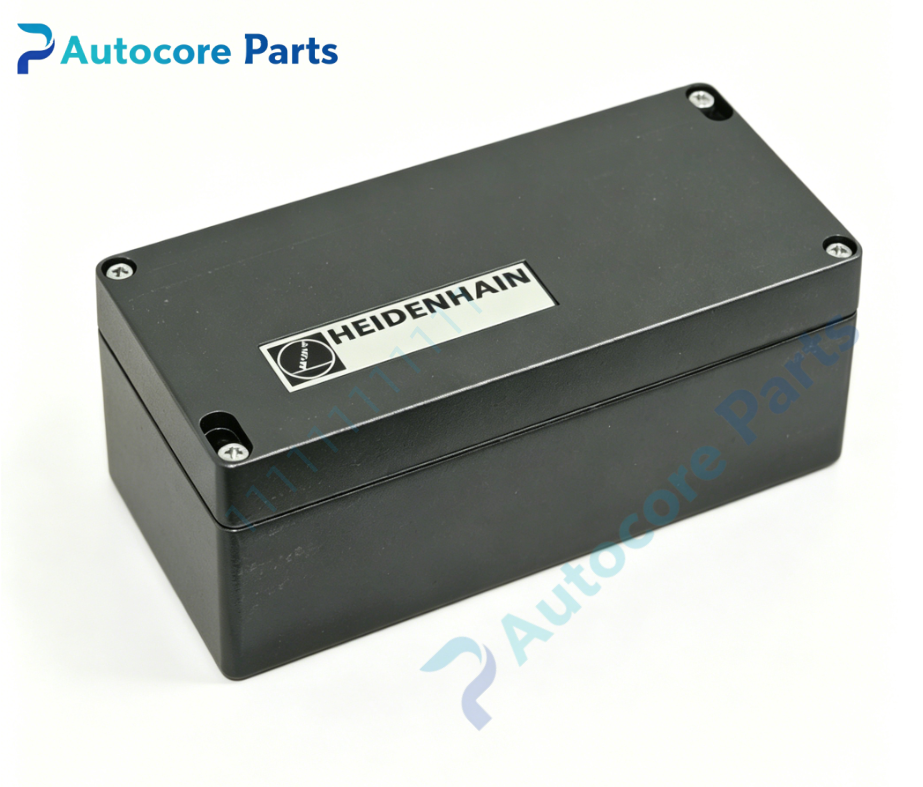

HEIDENHAIN EXE 610B Interpolation and Digitizing Unit

Technical Specifications

Model： EXE 610B, ID.Nr. 257 330-01

Brand： HEIDENHAIN

Product Type: Wall-mounted interpolation and digitizing electronic unit for incremental encoders

Module Feature:

Function: HEIDENHAIN EXE 610B interpolation unit. Receives weak sinusoidal current signals (µApp) from HEIDENHAIN linear or rotary incremental encoders. It performs hardware interpolation and converts analog sine/cosine signals to differential TTL A/B/Z square wave pulses for CNC controller. Widely used for closed-loop axis feedback on heavy horizontal boring mills and large machining centers.

Input Signal: 7 ~16 µApp sinusoidal current signal Output Signal: Differential TTL square wave A/B/Z pulses Max input frequency: 1 MHz Onboard components: Input pre-amplifier, interpolation logic circuit, pulse shaping stage, fault monitoring circuit, rugged metal housing, M23 flange connectors

LED indicators: POWER, SIG, FAULT diagnostic lights

Hardware self-diagnosis: Encoder signal amplitude monitoring, input signal loss detection

Programming software: No programming required; interpolation factor configurable via DIP switch

Electrical Parameters

Supply voltage: 5VDC ±5%

Power consumption: Max 2.9W

Mechanical & Structure:

Mounting: Cabinet wall mounting Protection class: IP64 (metal housing)

Environmental:

Operating temperature: 0℃ ~ +70℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy interpolation digitizing unit

System compatibility

Compatibility description: EXE 610B belongs to HEIDENHAIN EXE61x interpolation family. Compatible with HEIDENHAIN incremental encoders with µApp current output. Works with Fives Giddings & Lewis PIC900 CNC system for heavy boring mill axis control.

Function

Function description: EXE 610B is interpolation and digitizing electronics manufactured by HEIDENHAIN. It amplifies and interpolates weak sinusoidal current signals from linear scales or rotary encoders, then outputs standard differential TTL pulse signals to CNC axis board. The metal housing protects internal circuits from cabinet vibration and electromagnetic noise. It is legacy encoder signal processing spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off 5VDC power. Mount EXE610B unit on cabinet plate. Connect encoder cable to M23 input socket and TTL pulse output cable to CNC control board. Set DIP switch for interpolation multiple. Restore power, verify POWER and SIG LED indicators, run encoder diagnostic and check position pulse reading.

Interface

Interface list: M23 9-pin encoder input connector, M23 12-pin TTL output connector,5VDC power terminal,on-board POWER / SIG / FAULT LED indicators for HEIDENHAIN EXE 610B.

Diagnostic

Troubleshooting: No pulse output: Check 5VDC supply, encoder cable breakage or connector pin damage. FAULT LED lit: Low encoder signal amplitude, encoder wiring fault or contamination on encoder optical parts. Axis position jump: Improper interpolation DIP setting, electrical noise interference or internal circuit aging.

Product Brief

Brief description: EXE 610B ID 257 330-01 is HEIDENHAIN discontinued interpolation unit,converts µApp sinusoidal encoder signal to differential TTL pulses for CNC closed-loop axis control on heavy CNC boring mills,legacy encoder signal processing spare.
