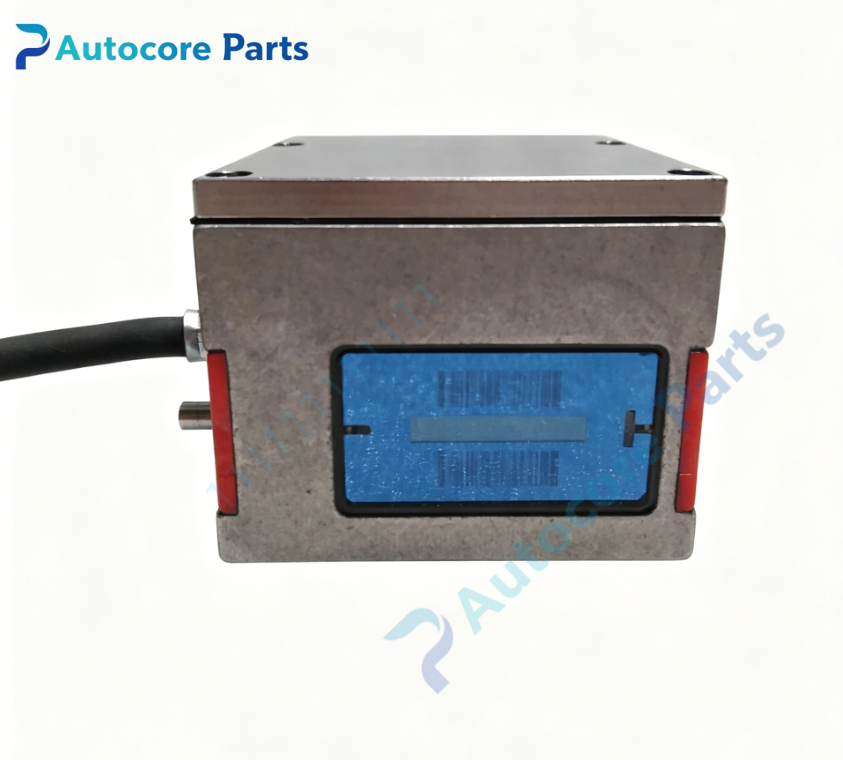

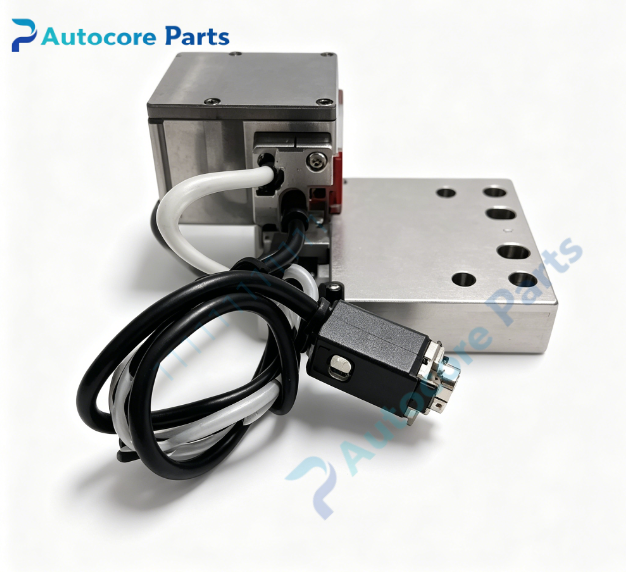

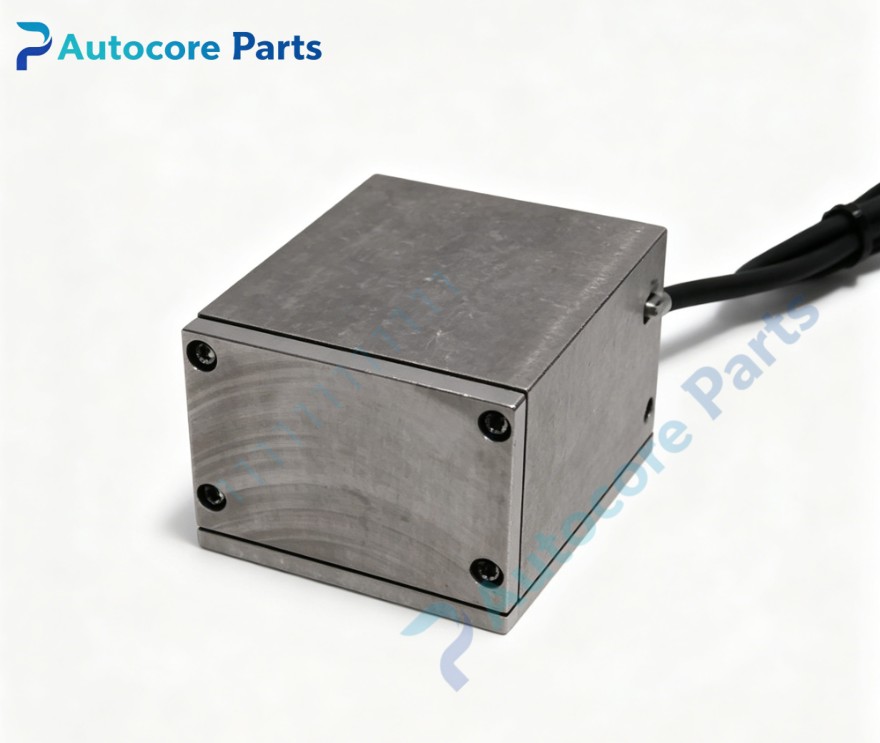

HEIDENHAIN LIP101R Linear Encoder

Technical Specifications

Model： LIP101R

Brand： HEIDENHAIN

Product Type: Exposed incremental linear encoder for ultra-precision machine feed axes

Module Feature:

Function: HEIDENHAIN LIP101R exposed incremental linear encoder. It detects linear position and speed of machine feed axis and outputs 1Vpp sine/cosine incremental analog signals. Grating pitch 8 μm, available accuracy grades ±0.5μm, ±1μm, ±2μm depending on measuring length. Designed for ultra-precision positioning applications. Used on heavy horizontal boring mills, ultra-precision gantry machines and grinding machines.

Measuring principle: Incremental optical scanning Grating pitch: 8 μm Output Signal: 1 Vpp sine/cosine incremental signals Scale substrate: Solid steel profile Onboard components: Phase grating scale, scanning read head, signal processing circuit, metal read head housing, M23 connector

LED indicators: POWER, SIG, FAULT diagnostic lights

Hardware self-diagnosis: Optical signal amplitude monitoring, contamination detection, signal integrity inspection

Programming software: HEIDENHAIN diagnostic software for signal amplitude check and mounting optimization

Electrical Parameters

Supply voltage: 5VDC ±10%

Power consumption: Max 2.8W

Mechanical & Structure:

Mounting: Steel scale bar fixed to machine bed; read head mounted on moving slide carriage Protection class: IP64 (read head)

Environmental:

Operating temperature: 0℃ ~ +70℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: HEIDENHAIN ultra-precision exposed incremental linear encoder

System compatibility

Compatibility description: LIP101R belongs to HEIDENHAIN LIP series exposed linear encoder family, 1Vpp output. Compatible with HEIDENHAIN EXE interpolation units and Fives Giddings & Lewis PIC900 CNC system for heavy boring mill precision feed axis.

Function

Function description: LIP101R is exposed incremental linear encoder manufactured by HEIDENHAIN. The solid steel phase grating provides excellent rigidity and high measuring accuracy. The read head scans the grating and generates sine/cosine signals for position calculation. Reference mark is required for axis homing after power-up. It is widely used for ultra-precision machining tasks where high positioning repeatability is required. It is high precision linear position measuring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder 5VDC power. Mount steel scale bar parallel to machine travel axis. Install scanning head on slide carriage, adjust air gap and parallelism. Connect shielded M23 encoder cable to EXE interpolation unit. Restore power, verify POWER and SIG LED indicators, run encoder signal test and axis homing calibration.

Interface

Interface list: M23 multi-pin flange connector, 5VDC power and 1Vpp signal terminals,on-board POWER / SIG / FAULT LED indicators for HEIDENHAIN LIP101R.

Diagnostic

Troubleshooting: No position reading: Check 5VDC supply voltage, cable breakage or connector pin damage. FAULT LED lit: Low signal amplitude, grating contamination or read head misalignment. Intermittent position jump: Vibration, improper scanning gap or debris on grating surface.

Product Brief

Brief description: LIP101R HEIDENHAIN exposed incremental linear encoder with 8μm grating pitch and 1Vpp output,provides ultra-precision linear position feedback for heavy CNC boring mill feed axis closed-loop control,linear scale spare.
