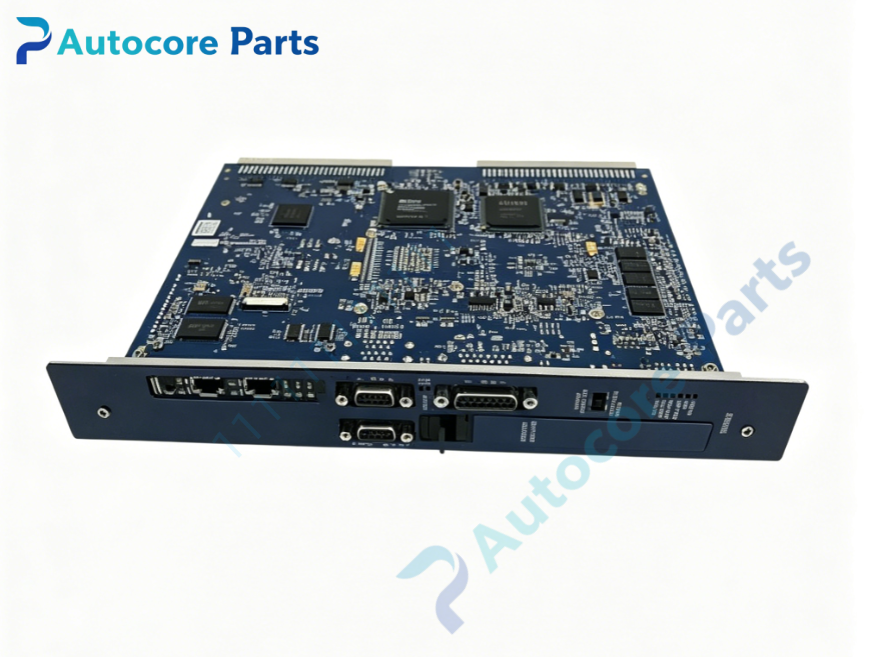

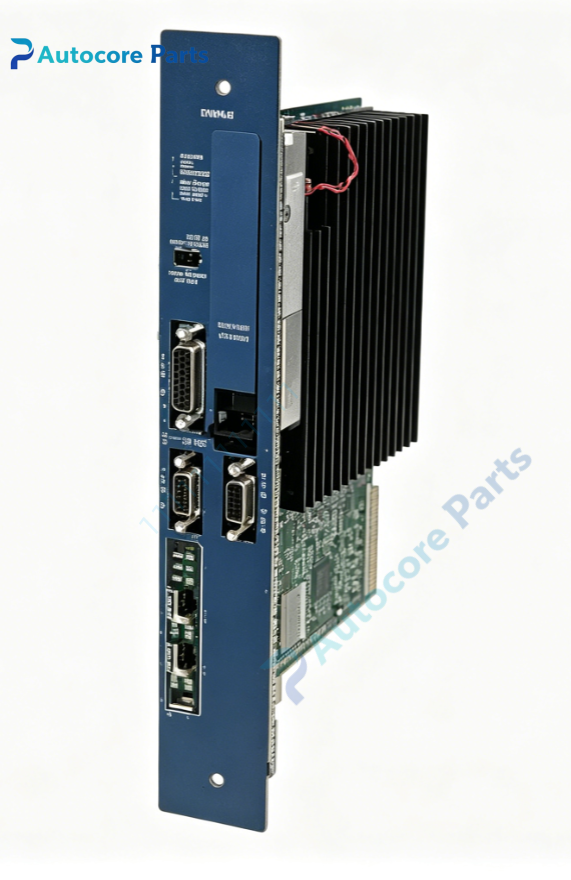

GE Fanuc IC698CPE040 CPU Module

Technical SpecificationsModel：IC698CPE040 Brand：GE Fanuc Product Type: Plug-in high-performance CPU module for PACSystems RX7i VME64 universal backplane

Module Feature:Function: High-speed real-time CPU controller for PACSystems RX7i platform, executes deterministic control logic, exchanges I/O data via VME backplane and handles multi-network communication. Processor:1.8GHz Intel Pentium-M embedded processor Memory:64MB user program RAM,64MB flash memory I/O reference table:32K discrete input/output bits,32K analog input/output words Ports: Dual 10/100Mbps RJ45 Ethernet, RS232, RS485 serial port Supported protocols: SRTP, Modbus TCP, Modbus RTU, EGD, SNP Programming languages:Ladder Diagram, Structured Text, Function Block Diagram, C language LED indicators:OK, RUN, FAULT, LAN status lights Hardware self-diagnosis:memory integrity check, firmware verification, VME bus monitoring, internal fault detection Programming software:Proficy Machine Edition Real-time clock: Battery-backed calendar clock

Electrical ParametersBackplane supply:+5VDC, power consumption max 12W

Mechanical & Structure:Mounting:Plug into RX7i VME universal backplane single slot Weight:0.55kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

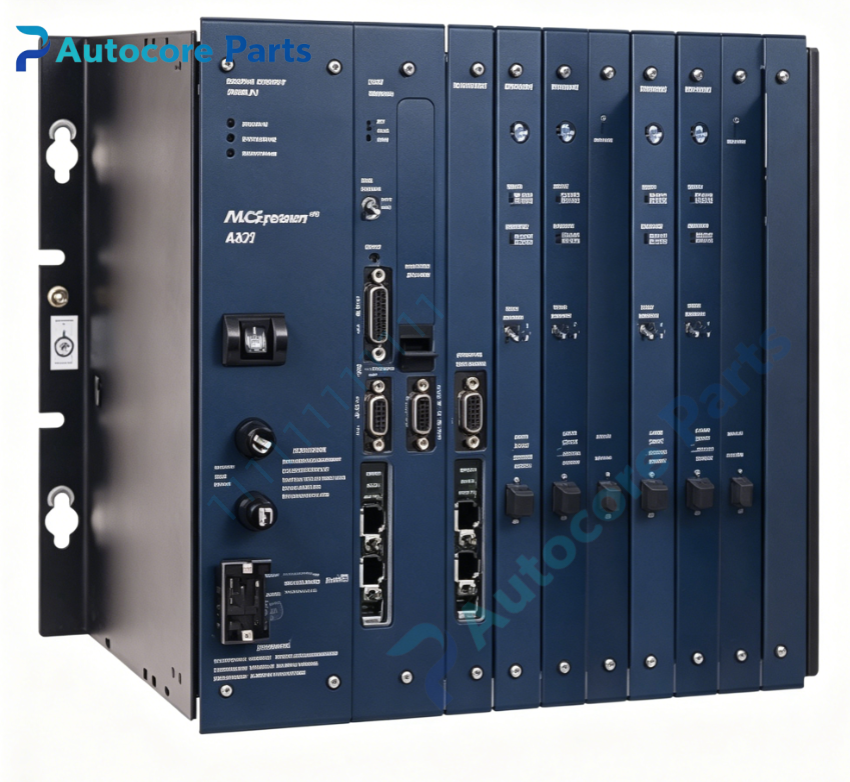

System compatibilityIC698CPE040 belongs to GE Fanuc PACSystems RX7i family. Compatible with RX7i VME backplane, power supply, I/O and communication modules. Supports redundant configuration with IC698RMX016 redundancy module. Widely used in power generation, chemical and heavy industry process control.

FunctionIC698CPE040 is high-performance CPU for GE Fanuc PACSystems RX7i. Pentium-M processor delivers fast logic scan for complex process control. Dual Ethernet ports support HMI, peer controller and network I/O communication. Serial ports connect Modbus RTU and SNP field devices. Battery-backed RTC maintains time stamp for alarm and event logging. Front LEDs display running status and fault information for field maintenance.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack power. Insert IC698CPE040 into RX7i VME backplane slot and lock retainer. Connect Ethernet and serial cables. Download control project and configure network parameters in Proficy Machine Edition. Power on and verify CPU RUN state and I/O communication.

InterfaceRX7i VME backplane gold-edge connector,dual RJ45 Ethernet port,RS232/RS485 serial terminal,on-board OK / RUN / FAULT LED indicators for GE Fanuc IC698CPE040.

DiagnosticCPU cannot enter RUN mode:Check backplane power, valid downloaded project and battery status. Network communication lost:Inspect Ethernet cable,IP address configuration and switch port. Fault LED active:Firmware corruption, memory error or internal hardware fault.

Product BriefIC698CPE040 is GE Fanuc legacy PACSystems RX7i high speed VME CPU module,with dual Ethernet and multi serial ports for heavy industry real-time control,discontinued PLC controller spare.
