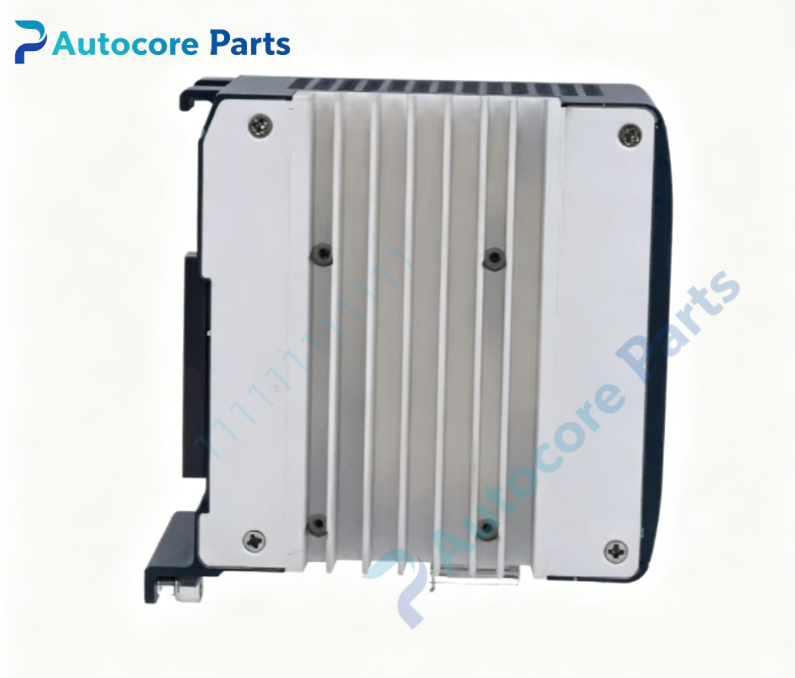

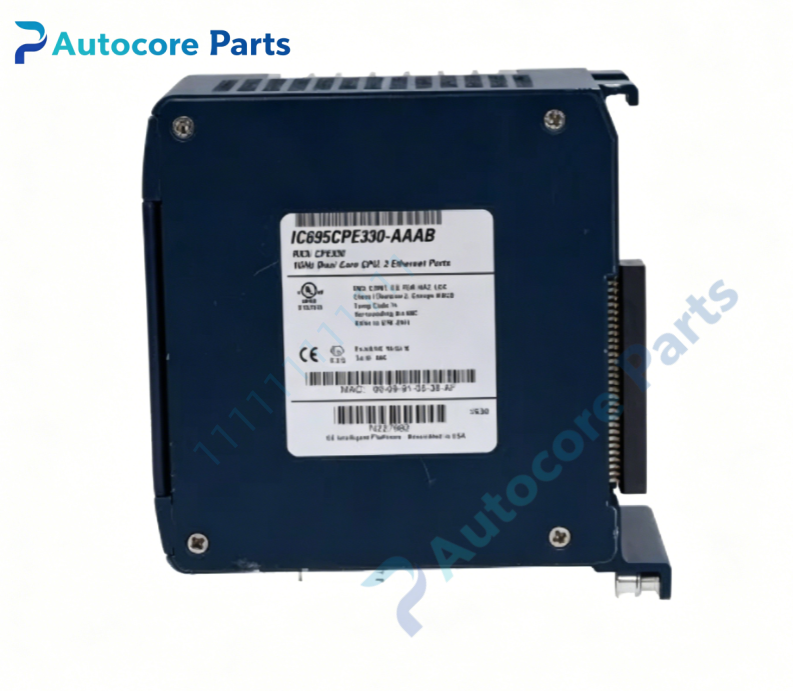

GE Fanuc IC695CPE330-AB CPU Module

Technical SpecificationsModel：IC695CPE330-AB Brand：GE Fanuc Product Type: Single-slot plug-in high-performance CPU module for PACSystems RX3i universal backplane

Module Feature:Function: High-speed real-time CPU controller for PACSystems RX3i platform, executes deterministic control logic, communicates with local I/O and remote devices over backplane, dual Ethernet ports. Processor:1GHz dual-core processor Memory:64MB user program and data memory, Cfast card slot for configuration backup I/O reference table:32K discrete input/output bits,32K analog input/output words Ports: Dual 10/100/1000Mbps Gigabit Ethernet, USB service port Supported protocols: Modbus TCP, EGD, SRTP Programming languages:Ladder Diagram, Structured Text, Function Block Diagram LED indicators:OK, RUN, FAULT, LAN status lights Hardware self-diagnosis:memory integrity check, firmware verification, backplane bus monitoring, internal fault detection Programming software:Proficy Machine Edition AB = hardware revision AB

Electrical ParametersBackplane supply:+5VDC, power consumption max 4.8W

Mechanical & Structure:Mounting:Plug into RX3i universal backplane single slot Weight:0.48kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695CPE330-AB belongs to GE Fanuc PACSystems RX3i family. Compatible with RX3i backplane, power supply, I/O and communication modules. Widely used in process control, water treatment, packaging and factory automation systems.

FunctionIC695CPE330-AB is high-performance CPU for GE Fanuc RX3i PACSystems. Dual-core processor runs real-time PLC logic. Dual Gigabit Ethernet ports support HMI, peer controller and network I/O communication. Cfast card stores backup project for fast module replacement. Onboard LEDs display running status and fault information for field maintenance.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack power. Insert IC695CPE330-AB into RX3i backplane slot and lock retainer. Connect Ethernet cables. Download control project and configure network parameters in Proficy Machine Edition. Power on and verify CPU RUN state and I/O communication.

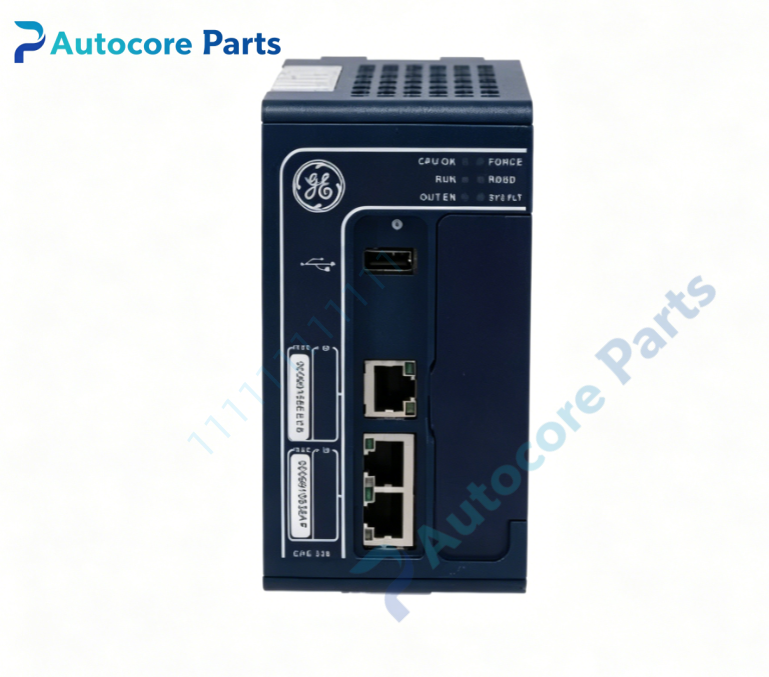

InterfaceRX3i backplane gold-edge connector,dual Gigabit RJ45 Ethernet port,USB service port,Cfast card slot,on-board OK / RUN / FAULT LED indicators for GE Fanuc IC695CPE330-AB.

DiagnosticCPU cannot enter RUN mode:Check backplane power, valid downloaded project and memory status. Network communication lost:Inspect Ethernet cable,IP address configuration and switch port. Fault LED active:Firmware corruption, memory error or internal hardware fault.

Product BriefIC695CPE330-AB is GE Fanuc legacy PACSystems RX3i high performance single-slot CPU module,with dual Gigabit Ethernet for industrial real-time control,discontinued PLC controller spare.
