GE Fanuc IC695CPE310CA CPU Module

Technical SpecificationsModel：IC695CPE310CA Brand：GE Fanuc Product Type: Dual-slot plug-in PACSystems RX3i CPU module for universal backplane

Module Feature:Function: Mid-range real-time CPU controller for PACSystems RX3i platform, executes deterministic control logic, communicates with local I/O and remote devices over backplane, Ethernet and serial interfaces. Processor:1.1GHz Atom processor Memory:10MB user logic memory,10MB non-volatile flash memory, battery-less data retention with optional energy pack I/O reference table:32K discrete input/output bits,32K analog input/output words Ports: Dual 10/100Mbps Ethernet, RS232, RS485 serial port, USB service port Supported protocols: Modbus RTU, SNP, EGD Programming languages:Ladder Diagram, Structured Text, Function Block Diagram, C language LED indicators:OK, RUN, FAULT, LINK status lights Hardware self-diagnosis:memory integrity check, firmware verification, backplane bus monitoring, internal fault detection Programming software:Proficy Machine Edition CA = conformal coated version for harsh industrial environment

Electrical ParametersBackplane supply:+5VDC, power consumption max 5.5W

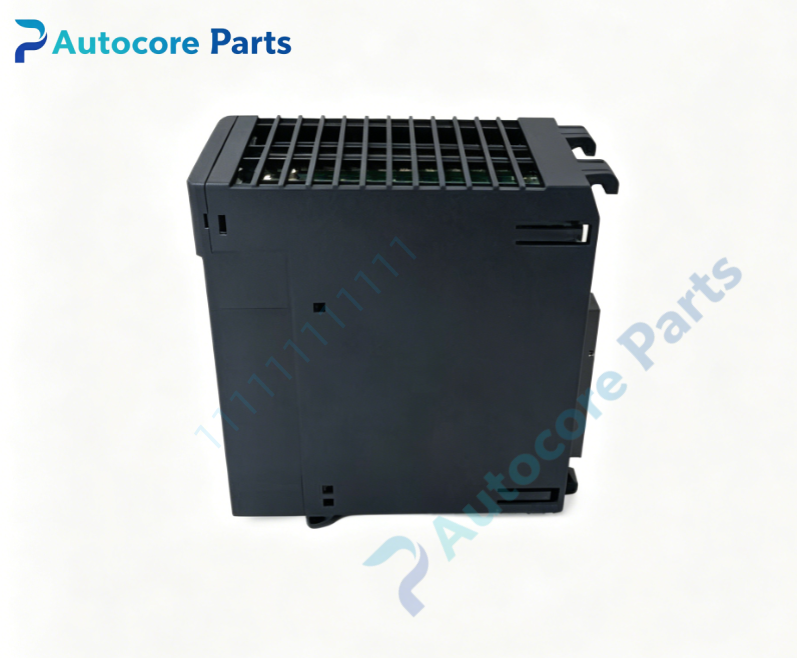

Mechanical & Structure:Mounting:Plug into RX3i universal backplane, occupies 2 adjacent rack slots Weight:0.52kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695CPE310CA belongs to GE Fanuc PACSystems RX3i family. Compatible with RX3i backplane, power supply, I/O and communication modules. Widely used in machine tools, packaging, water treatment and general process automation.

FunctionIC695CPE310CA is conformal coated RX3i dual-slot CPU. It runs real-time PLC control logic and exchanges data with I/O modules via RX3i dual PCI/serial backplane. Dual Ethernet ports support HMI and peer controller communication, while serial ports handle Modbus RTU and SNP devices. Conformal coating protects PCB against dust, moisture and corrosive atmosphere. Front LEDs show operating status and fault information for field troubleshooting.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack power. Insert IC695CPE310CA into RX3i backplane dual slots and lock retainer. Connect Ethernet and serial cables. Download control project and configure network parameters in Proficy Machine Edition. Power on and verify CPU RUN state and I/O communication.

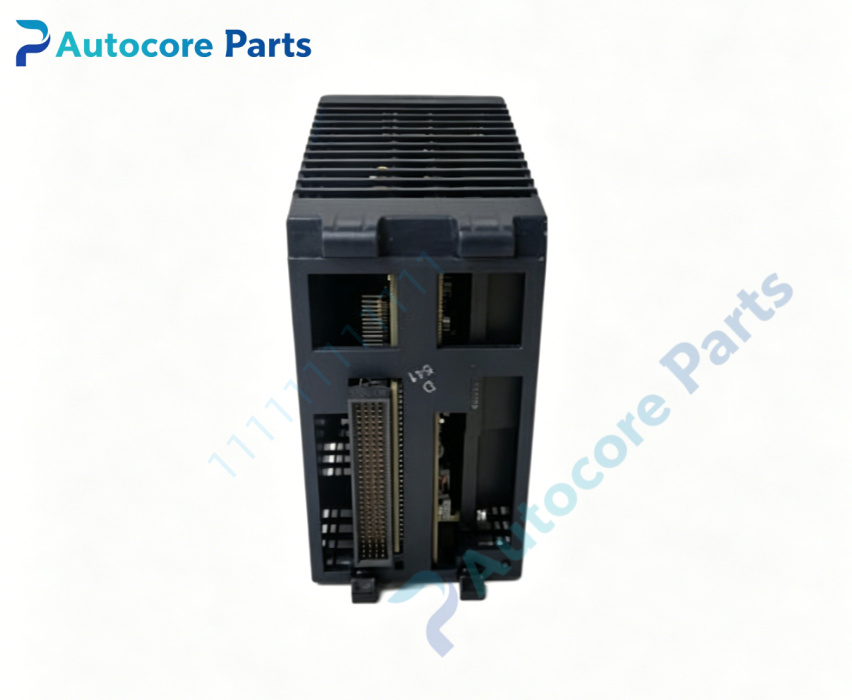

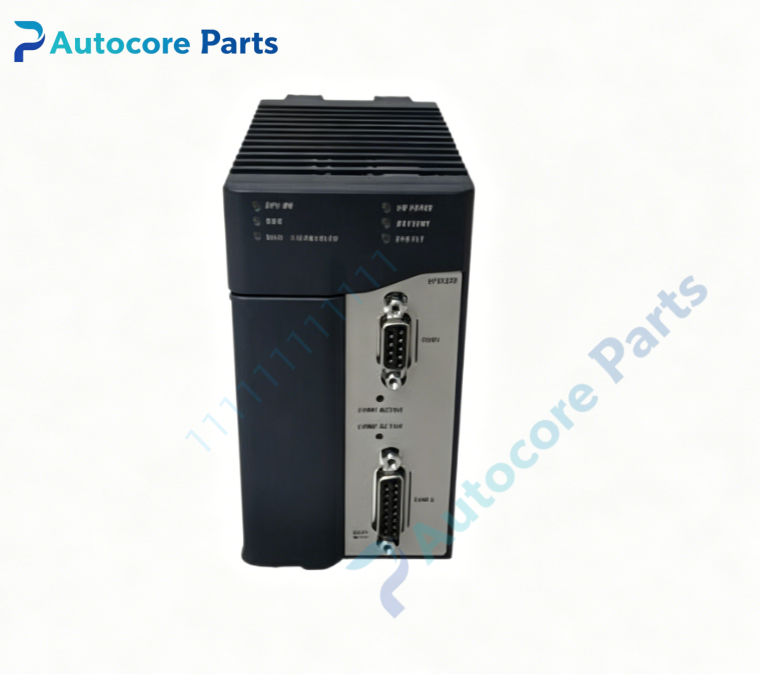

InterfaceRX3i backplane gold-edge connector,dual RJ45 Ethernet port,RS232/RS485 serial terminal,USB service port,on-board OK / RUN / FAULT LED indicators for GE Fanuc IC695CPE310CA.

DiagnosticCPU cannot enter RUN mode:Check backplane power, valid downloaded project and memory retention status. Network communication lost:Inspect Ethernet cable,IP address configuration and switch port. Fault LED active:Firmware corruption, memory error or internal hardware fault.

Product BriefIC695CPE310CA is GE Fanuc legacy PACSystems RX3i conformal coated dual-slot CPU module,for real-time process and machine control,discontinued PLC controller spare.
